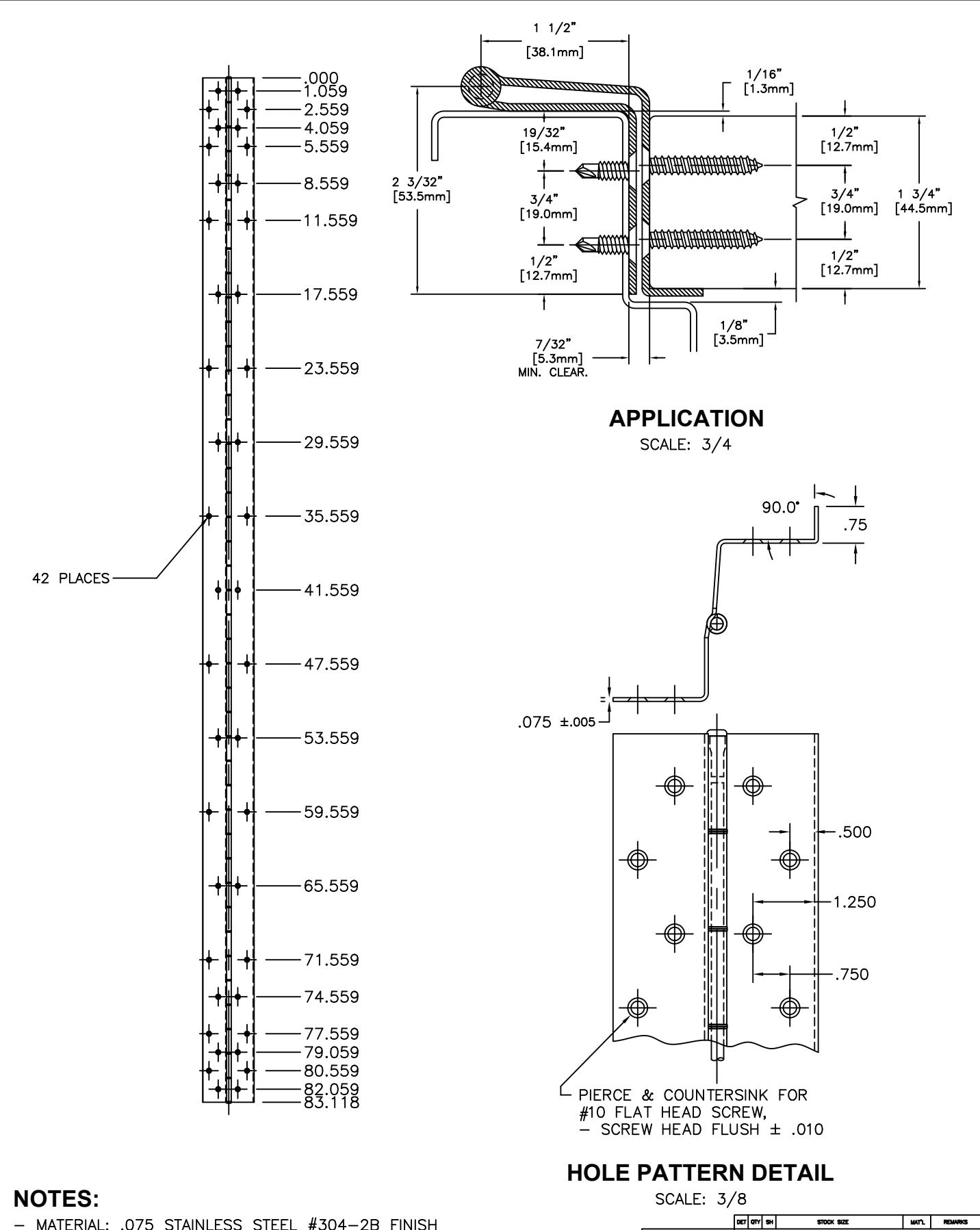

Model 790-911 – Continuous Stainless Steel Hinge – 83in – Template 790-911-83

Open the original PDF document

MATERIAL: .075 STAINLESS STEEL #304-2B FINISH
ALL DIMENSIONS ARE IN INCHES
DRAWINGS ARE NOT TO SCALE
KNUCKLE PATTERN MY VARY

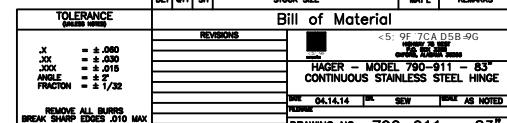

DRAWING NO. 790-911 - 83"
