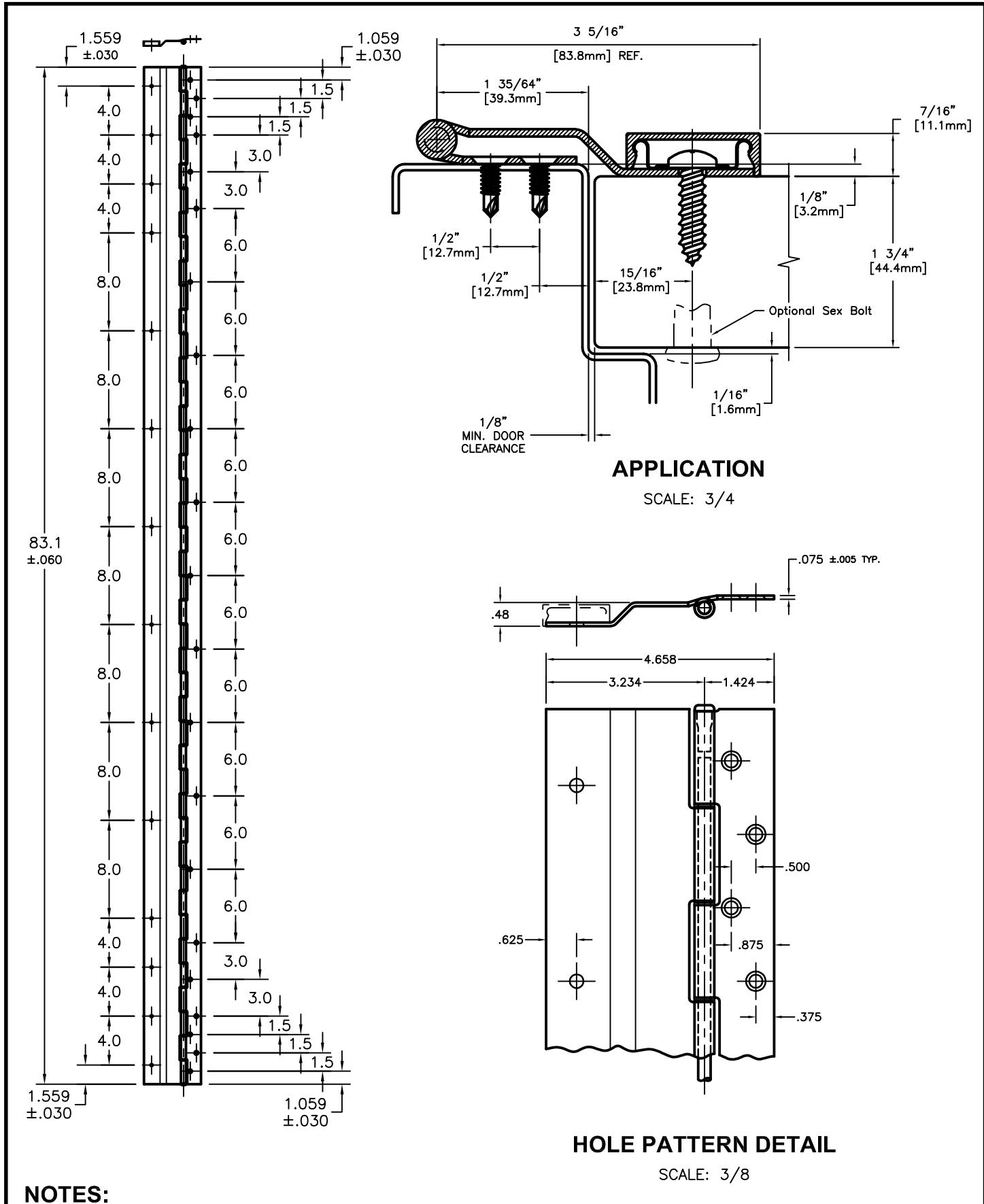

Model 790-909 Continuous Stainless Steel Hinge – 83in – Template 790-909-83-790-909-template
Open the original PDF document
View PDF
- MATERIAL: .075 STAINLESS STEEL #304-2B FINISH
- ALL DIMENSIONS ARE IN INCHES
- DRAWINGS ARE NOT TO SCALE
- KNUCKLE PATTERN MY VARY
