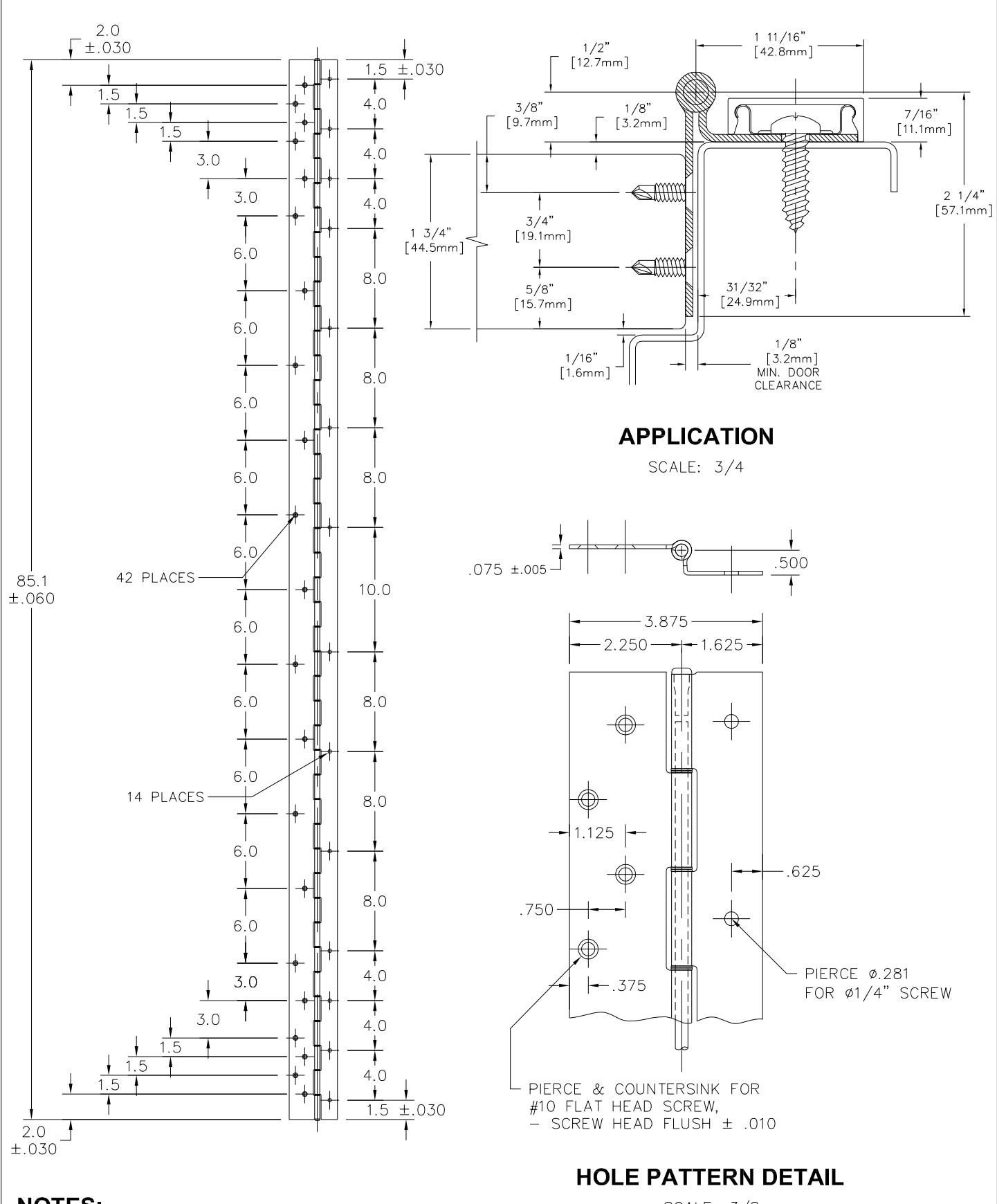

Model 790-904 – Continuous Stainless Steel Hinge – 85in – Template 790-904-85-790-904-template
Open the original PDF document
View PDF
NOTES:
- MATERIAL: .075 STAINLESS STEEL #304-2B FINISH
- ALL DIMENSIONS ARE IN INCHES
- DRAWINGS ARE NOT TO SCALE
- KNUCKLE PATTERN MY VARY
SCALE: 3/8
