Model 790-900 Continuous Stainless Steel Hinge – 79in – Template 790-900-79-790-900-template
Open the original PDF document
View PDF

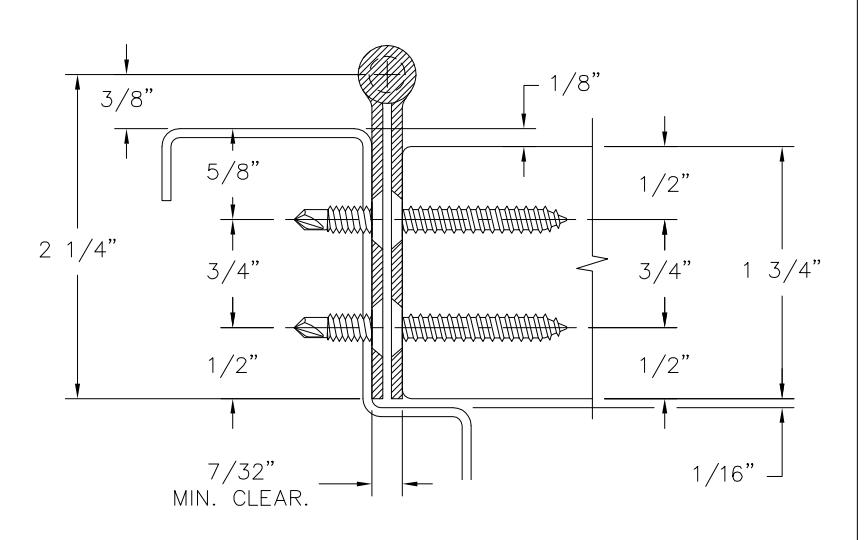

APPLICATION
SCALE: 3/4

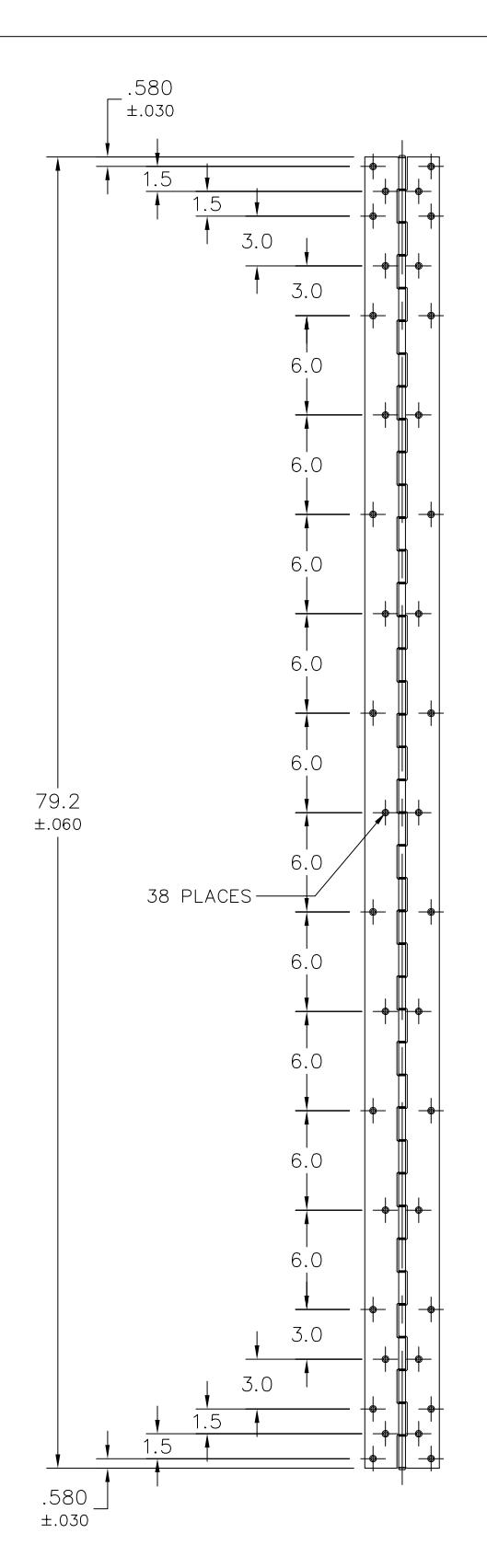

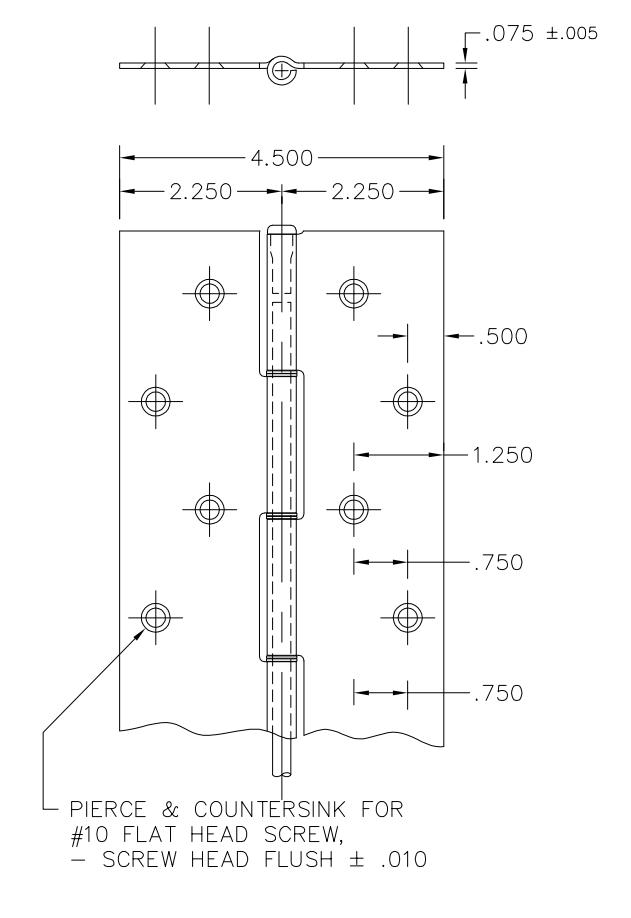

HOLE PATTERN DETAIL
SCALE: 3/8

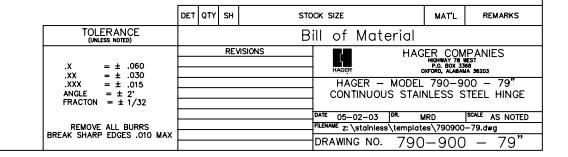

NOTES:
- MATERIAL: .075 STAINLESS STEEL #304-2B FINISH
- ALL DIMENSIONS ARE IN INCHES
- DRAWINGS ARE NOT TO SCALE
- KNUCKLE PATTERN MY VARY
