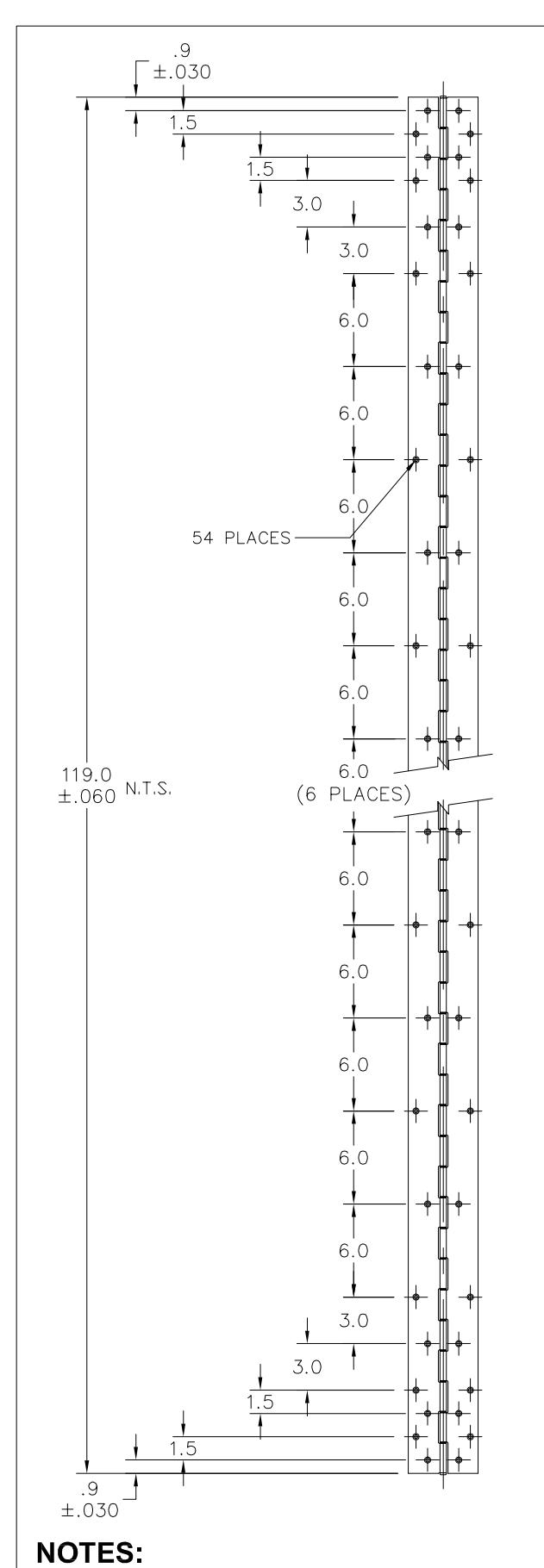

Model 790-900 Continuous Stainless Steel Hinge – 119in – Template 790-900-119-790-900-template
Open the original PDF document
View PDF

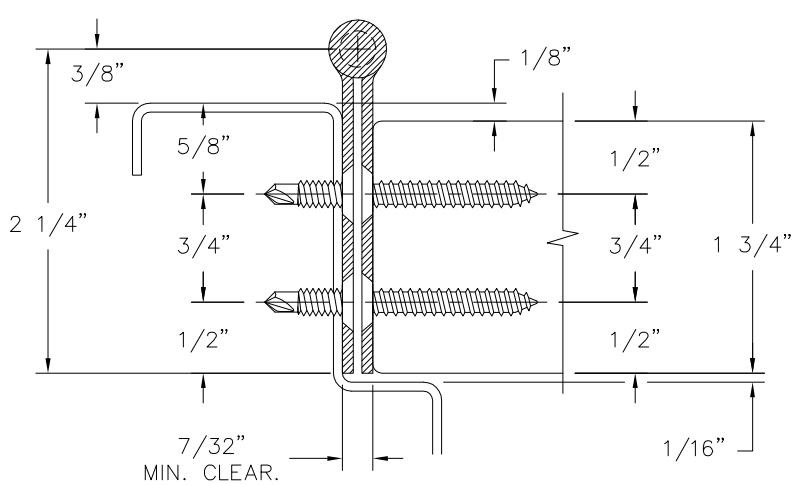

APPLICATION
SCALE: 3/4

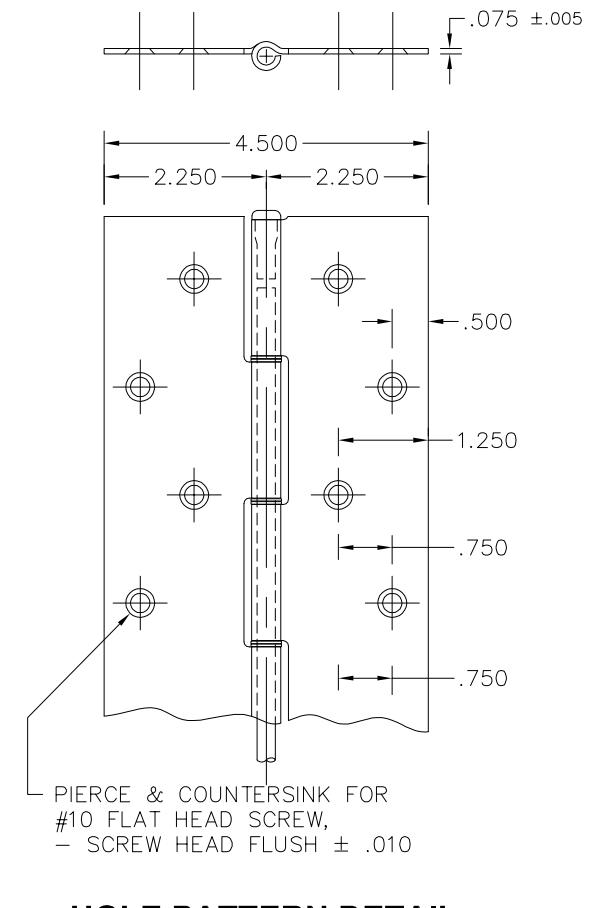

HOLE PATTERN DETAIL
SCALE: 3/8
MATERIAL: .075 STAINLESS STEEL #304-2B FINISHALL DIMENSIONS ARE IN INCHES
- DRAWINGS ARE NOT TO SCALE
- KNUCKLE PATTERN MY VARY
