SELECTRIC™ MOD 7800 Series Locksets LSK

Distributor Discount Code

Send the brand lockset of your choice to SDC for electrification. When factory authorized, distributors may take advantage of SDC's mechanical lock inventory to expedite orders. SDC stocks Schlage, Corbin Russwin, Yale, Best and Sargent mechanical locks that may be electrified and charged to an order. Meanwhile, distributors may then send replacement mechanical locks to SDC for credit and SDC inventory replenishment.

FEATURES SCHLAGE S AND ZS ONLY FEATURES ALL OTHER BRANDS

• Field selectable failsafe/failsecure
• Field selectable voltage, 12/24VDC
• Field selectable function and handing without removing cover

• Field selectable voltage, 12/24VDC
• Field selectable function and handing based on brand capability

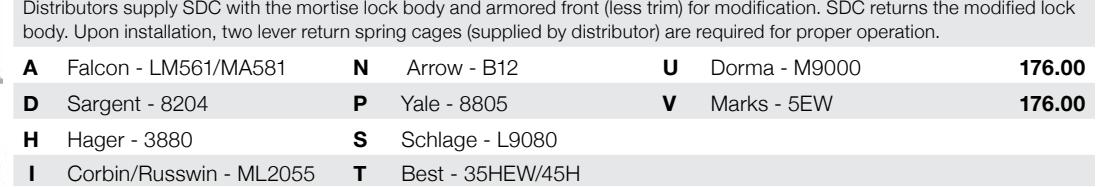

SPECIFY BRAND MODEL LIST

Note: Two locking hubs required for 7830 & 7832

Electrified lock chassis, less trim, provided by SDC factory are special order, no cancellation, no return. ZS Schlage 702.00 NOTE: Locks supplied less cylinder

	SPECIFY FUNCTION & ELECTRICAL MODE			Add to List
7830	Locked both sides, failsafe	7832	Locked both sides, failsecure	67.00
7850	Locked outside only, failsafe	7852	Locked outside only, failsecure	N/C
Schlage S and ZS only • Field selectable failsafe / failsecure • Field selectable function without removing cover

L Left hand LR Left hand reversed R Right hand RR Right hand reversed N/C

Sargent

Marks

PDQ Yale Corbin Russwin Best

Cal Royal

Electrically Controlled Single Point Locks or Latches 3 Hr A Label Fire Rated Doors Q 626 Dull Chrome (standard) N/C

SPECIFY FINISH FOR ZS ONLY Add to List

SPECIFY HAND

NOTE: For Additional Finishes Contact Factory

UL 10B Listed for 3Hr Fire Rated Doors See page 97

	OPTIONS AND ACCESSORIES	Add to List
Optional Outputs
R	Request-To-Exit. Indicates inside lever operation for access control request-to-exit input, alarm shunt, remote annunciation or CCTV activation, SPDT 5 Amp @ 30VDC Available with A, D, I, N, P, S, T, U, V and ZS only.	134.00
D	Door Position Status Output Indicates door open and door closed. SPDT 5 Amp @ 30VDC Available with locks S and ZS only.	89.00
S	Latched & Locked Status Output Indicates door latched and locked or door unlocked. SPDT 5 Amp @ 30VDC Available with locks S and ZS only.	112.00
L	Latchbolt status. Indicates door latched and unlatched status. SPDT 5 Amp @ 30VDC Available with locks A, D, I, N, P, S, T, U, V and ZS only. Consult factory for recent updates of option availability with any model	112.00

Optional Cable and Connectors

CC1-5	5ft. Cable and connectors for locks without optional outputs	50.00
CC3-5	5ft. Cable and connectors for locks with optional outputs	67.00
