Selectric® Mod 7800 Series Electrified Mortise Locksets

MAJOR BRAND MECHANICAL LOCK ELECTRIFICATION

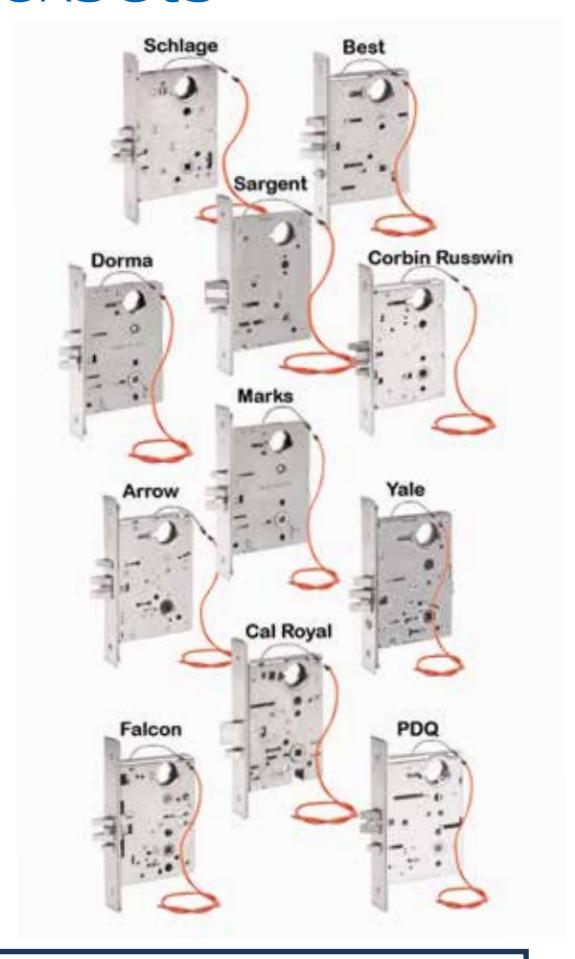

Schlage Corbin Russwin Best Yale Dorma Marks Hager Cal Royal Sargent Arrow Falcon PDQ

Selectric® Electrified Mortise Locksets are designed for the access control of openings in commercial, industrial and institutional facilities where code compliance, dependable operation and resistance to physical abuse is required.

Send the brand lockset of your choice to SDC for electrification.

Mortise Lock Supplied for modification

Falcon LM561 / MA581 Α

Sargent 8204 D Hager 3880 Corbin/Russwin ML2055 Arrow B12 Yale 8805 S L9080 Schlage 35HEW / 45H Best Т Dorma M9000 Marks 5EW CalRoyal M8080

*Note: 2 locking hubs required for 7830/7832

MR148

Major Brand Electrified Lock Chassis, Less Trim, Provided by SDC Factory

ZS Schlage

PDQ

SPECIFICATIONS Patent #7614669

Dual Voltage	600/300 mA @ 12/24VDC
Mode	Field Reversible/Failsafe/Failsecure
Door Thickness	1-3/4" Standard
Door Prep	ANSI A 156.13
Latch Bolt	3/4" Anti-friction Bolt with Auxiliary Deadlatch

Backset	2-3/4"
Strike	4-7/8" (Standard)
Key Override	6 PIN, 1-1/4" Mortise Cylinder with Schlage "C" Keyway (Optional)
Weight	7.0 lbs

PRODUCT SKU SAMPLE: ZS7852 LR Q R

HOW TO ORDER

1| SPECIFY BRAND MODEL

Major Brand Electrified Lock Chassis, Less Trim, Provided by SDC Factory

ZS Schlage

Mortise Locks Supplied by Distributor

Distributors supply SDC with the mortise lock body and armored front (less trim) for modification. SDC returns the modified lock body with an electric actuator. Upon installation, two lever return spring cages (supplied by distributor) are required for proper operation.

A Falcon LM561/MA581

D Sargent 8204 H Hager 3880 I Corbin/Russwin ML2055 N Arrow B12 P Yale 8805 S Schlage L9080 T Best 35HEW/45H U Dorma M9000 V Marks 5EW W Cal Royal M8080 X PDQ MR148 *Note: 2 locking hubs required for

2| SPECIFY FUNCTION AND ELECTRICAL MODE

7830 Locked Both Sides, Failsafe

7850 Locked Outside Only, Failsafe

7832 Locked Both Sides, Failsecure,

7852 Locked Outside Only, Failsecure,

(Schlage S and ZS - Field Reversible Fail Safe / Fail Secure)

3| SPECIFY HAND

7830/7832

L Left Hand LR Left Hand Reverse R Right Hand RR Right Hand Reverse

4| SPECIFY FINISH FOR ZS ONLY

Q 626 Dull Chrome (Standard)

Consult Factory for Additional Finishes

5| SPECIFY OUTPUTS (OPTIONAL)

R Request-To-Exit

Indicates inside lever operation for access control request-to-exit input, alarm shunt, remote annunciation or CCTV activation, SPDT 5 Amp @ 30VDC.

Available with locks A, D, I, N, P, S, T, U, V and ZS only.

D Door Position Status Output

Indicates door open and door closed. SPDT 250mA @ 30VDC.

Available with locks S and ZS only.

S Latched & Locked Status Output

Indicates door latched and locked and door unlocked. SPDT 5 Amp @ 30VDC

Available with locks S and ZS only.

L Latched Status

Indicates door latched and unlatched status. SPDT 5 Amp @ 30VDC

Available with locks A, D, I, N, P, S, T, U, V and ZS only.

Consult factory for recent updates of option availability with any model.

6] CABLE AND CONNECTORS (OPTIONAL)

CC1-5 5ft. Cable & Connectors for Locks without Optional Outputs

CC3-5 5ft. Cable & Connectors for Locks with Optional Outputs

7| KEY CYLINDERS (OPTIONAL)

1 required for 7850/7852 | 2 required for 7830/7832 CYL-6KDQ 6 pin, 1-1/8" Keyed different, 626 Dull Chrome

CYL-6KAQ 6 pin, 1-1/8" Keyed alike, 626 Dull Chrome
