MICROCELL SAFETY FOR AUTOMATIC DOORS
FEATURES
The Microcell range is designed for the safety of pedestrian doors and is featured by a flexibility and an easiness for universal installations :
- Reduced size for easy fittings in most of door profiles
- Enables a mounting very close to the floor (20 cm 40 cm), as well as an important range (5 m - 10 m) and can be lightly out of alignment
- Protected against short time wrong connections and immuned to the ambient light (sunlight or artificial lighting)
- Totally immune to interference and complies with the European standards 89/336/EEC
- Microcell Two complies with ESC standards, and with the French
- Ministerial Order on automatic doors in the workplace
- Microcell Three complies with the German directive ZH 1/494 on
- Windows and doors activated by external energy sources
- Plug supplied with a special sleeve that prevents from moisture problems

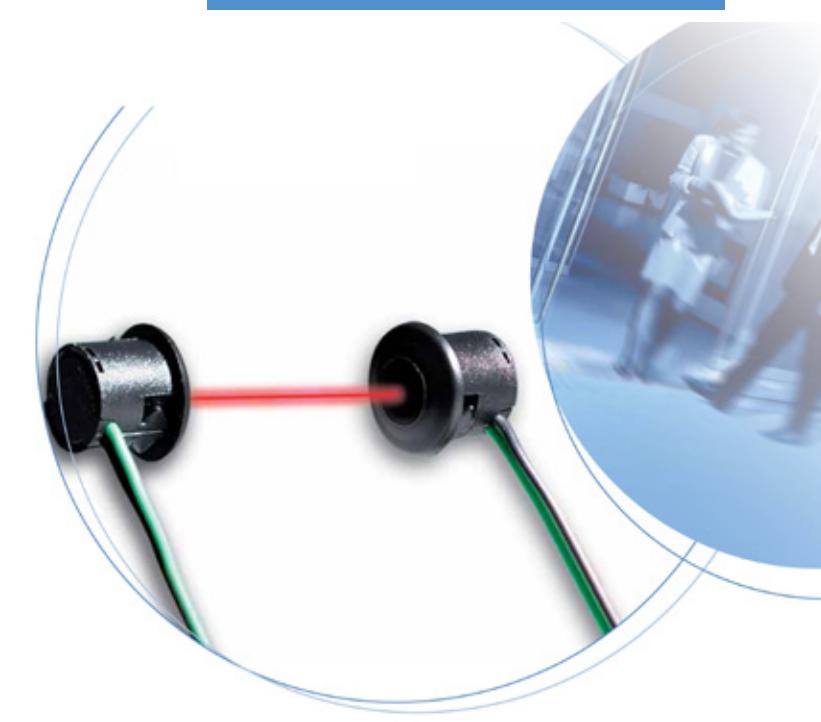

Infrared barrier composed by an emitter and a receiver in cylindrical heads
The small-sized infrared beams that can be discreetly fitted into the profiles of single or double doors and which can also be used for specific applications (railways, security entrances, etc.).
THE MICROCELL RANGE IS AVAILABLE IN SEVERAL VERSIONS :
- • Microcell One: barrier composed by plug-in cylindrical heads with a 5 m cable and a control box with one relay
- • Microcell Two: barrier composed by plug-in cylindrical heads with a 5 m cable and a control box with two relays
- • Microcell Three: barrier composed by plug-in cylindrical heads with a 5 m cable and a monitored control box with transistor output
Notes :
• The Microcell range is available either in single (-S) or in double beam version (-D) an optional 10 m cable (-L) is also available
West: 800-544-4422 • East: 800-225-6737
Dimensions
D=12.4
2.5
Sensing fields
Accessory
MMA : surface mounting set
Technical specifications
| Technical specifications | |
|---|---|
| Technology | active infrared, microprocessor |
| Mounting height | min. 0.2 m above the floor |
| Distance between beams | min. 0.3 m (crossed beams) |
| Distance in relation to the door plane | 2 cm |
| Minimum range | 1 m |
| Maximum range | 5 m - for min. mounting height of 0.2 m |
| 10 m - for min. mounting height of 0.4 m | |
| Half-opening angle of the beam | 8° |
| Detection mode | presence (beam interruption) |
| Response time | |
| • transistor output (Microcell Three) | ≤ 10 ms (setting or interruption of the beam) |
| • relay output (Microcell One and Two) | ≤ 40 ms |
| Hold time | |
| • relay output (Microcell One and Two) | 300 ms |
| Supply voltage (Microcell One and Two) | 12-24 V AC ±10% - 12-24 V DC –5/+30% |
| (Microcell Three) | 12-24 V DC –5/+20% |
| Current consumption | < 100 mA |
| Output (Microcell One and Two) | 1 or 2 relays (free potential contact) |
| • relay contact ratings (max. voltage) | 50 V DC / 50 V AC |
| • relay contact ratings (max. current) | 1 A (resistive) |
| • maximum switching power | 30 W (DC) / 50 VA (AC) |
| Output (Microcell Three) | open collector transistor (NPN or PNP) |
| • relay contact ratings (max. voltage) | 30 V DC |
| • relay contact ratings (max. current) | 20 mA |
| • voltage drop | < 2 V at 20 mA |
| Signal | 1 LED per barrier |
| Adjustment | |
| (by dip-switch - Microcell One and Two) | single / double barrier |
| standard / inverted outputs | |
| reduced / nominal range | |
| test position | |
| Adjustment (by dip-switch - Microcell Three) | NPN / PNP outputs |
| normal / inverted outputs | |
| reduced range B / nominal range B | |
| reduced range A / nominal range A | |
| Temperature range | –20°C to +55°C |
| Immunity | |
| • sunlight | 75000 lux |
| • incandescent lamp | 25000 lux at 8° angle |
| • electromagnetic | |
| compatibility | according to 89/336/EEC |
| Waterproof heads | IP 65 (DIN 40050) |

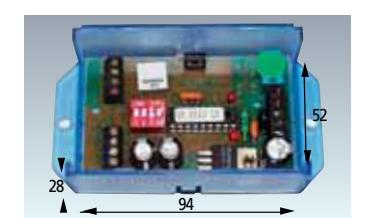

| Dimensions | |
| • heads | housing : 10 mm (built-in) x 12.4 mm (diameter) |
| collar : diameter 15.6 mm | |
| • control box | 94 mm (L) x 52 mm (W) x 28 mm (H) |
| Cable length | 5 m (10 m optional) |
| Weight | |
| • emitter | 0.140 Kg (5 m) / 0.270 kg (10 m) |
| • receiver | 0.140 Kg (5 m) / 0.270 kg (10 m) |
| • control box | 0.060 Kg |

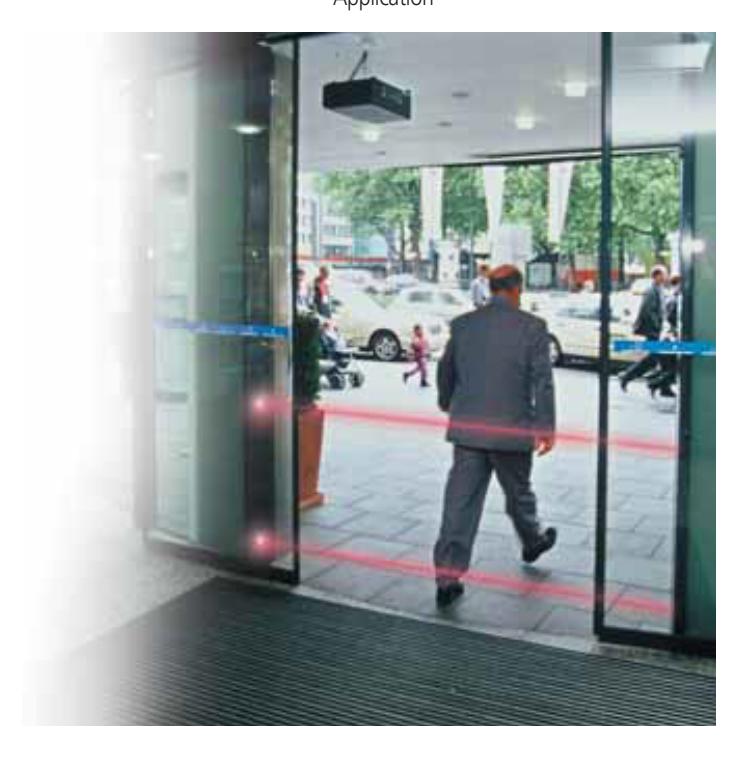

Application
Double beam
1m 0.2m
Material ABS Housing color blue transparent
