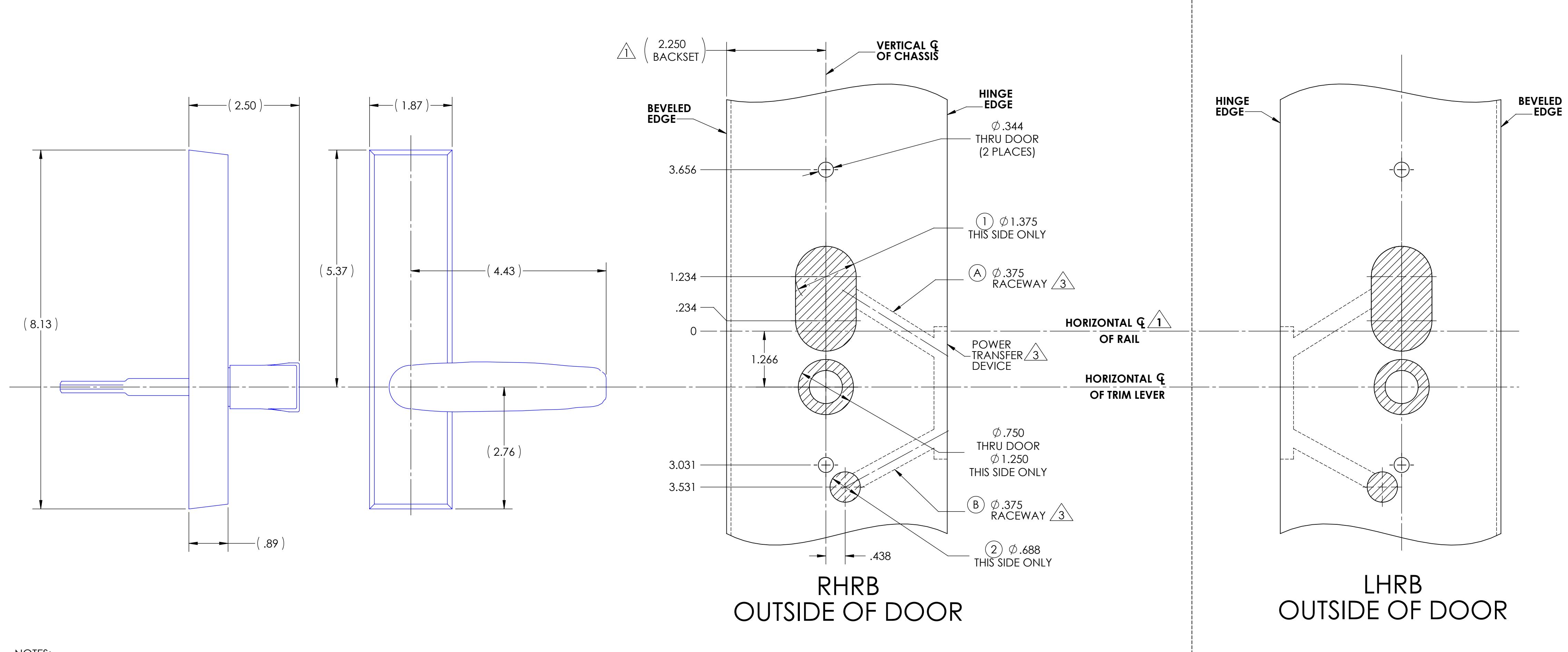

METAL DOOR

SERIES FUNCTIONS FEATURE (1) (SOLENOID) FEATURE (2)
( 54- PREFIX ) 		RACEWAY
LOCATION
8500 773-8, 774-8 X A
54-773-8, 54-774-8 X X A
ALL OTHER 54-700-8 2 Х (B)

NOTES:

  • FOR LOCATION OF VERTICAL CENTERLINES, HORIZONTAL CENTERLINES AND ALL ADDITIONAL EXIT DEVICES PREP. REFER TO APPROPRIATE EXIT DEVICE TEMPLATE.
  • FOR ADDITIONAL "ET" DOOR PREP CUTOUTS REFER TO TEMPLATE 4411.
  • FOR ADDITIONAL "ET" DOOR PREP CUTOUIS REFER TO TEMPLATE 4411. a. Ø.375 RACE WAY FOR ELECTRO LYNX APPLICATIONS REFER TO MCKINNEY TRANSFER CATALOG.
  • C. DOOR MANUFACTURE TO PROVIDE CLEARANCE REINFORCEMENT TO ALLOW INSERTION OF ELECTRICAL HINGE.
  • d. CONSULT WITH POWER TRANSFER MANUFACTURER FOR DEVICE CUTOUT. SUITABLE REINFORCEMENT REQUIRED FOR METAL DOORS.
  • BEVEL REQUIRED (NOT SHOWN), PREP TO ANSI A115 SPECIFICATIONS.
  • TOLERANCE ALL DIMENSIONS ±.015.
  • 7. FOR WOOD DOOR PREP SEE SHEET 2.

SARGENT Sargent Manufacturing Company ASSA ABLOY 100 Sargent Drive New Haven, CT 06511

DOOR MFG TEMPLATE: 54-700-8 LEVER MONITORING RELEASE DATE "ET", & 773-8 & 774-8 SOLENOID OPERATED "ET" CONTROL FOR USE WITH 8500 & 12-8500 SERIES TEMPLATE NO NARROW STYLE RIM TYPE EXIT DEVICES

METAL DOOR (SHEET 1 OF 2)

06-JUL-10 4529 C

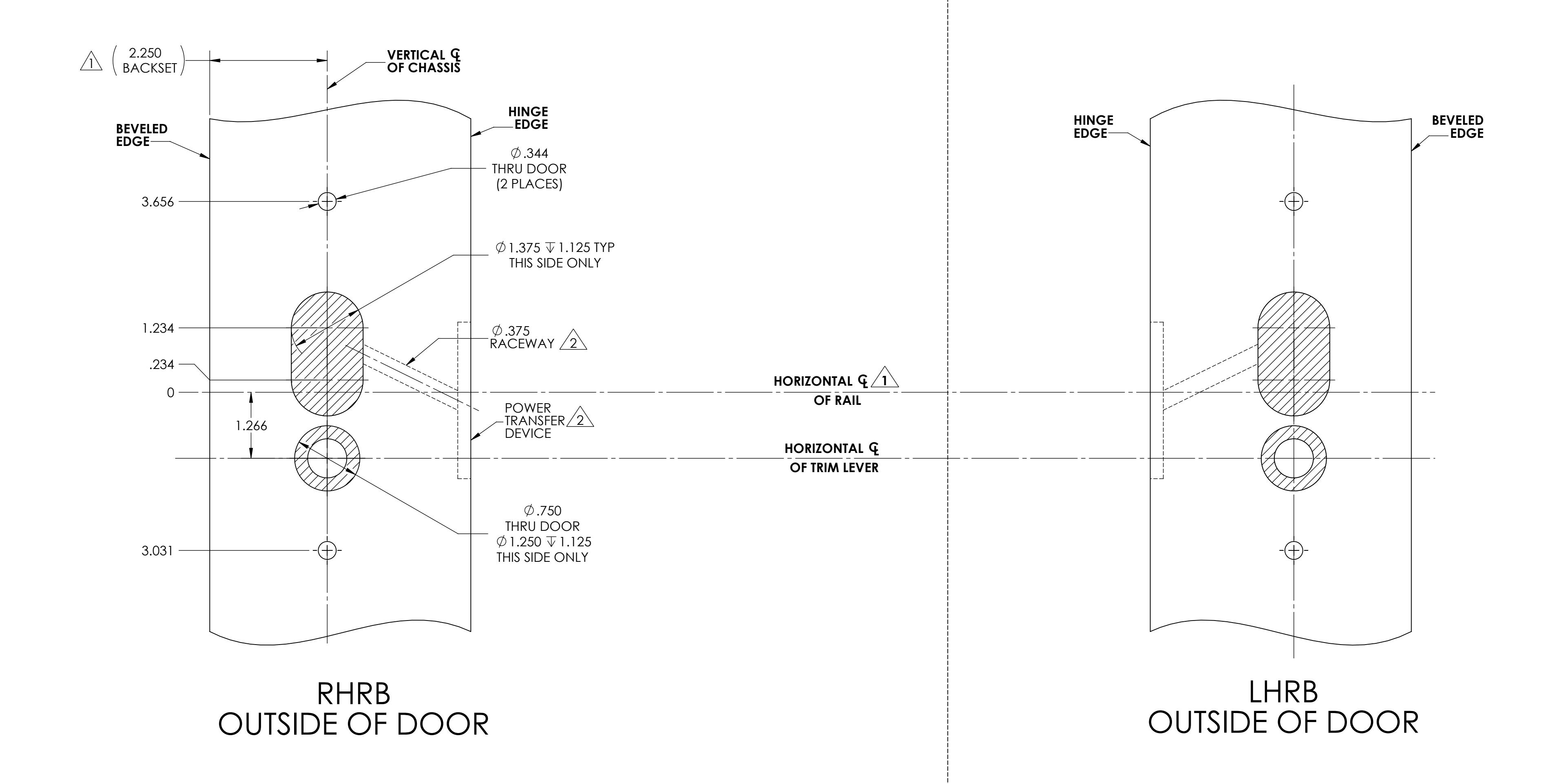

WOOD DOOR

NOTES:

  • FOR LOCATION OF VERTICAL CENTERLINES, HORIZONTAL CENTERLINES AND ALL ADDITIONAL EXIT DEVICES PREP. REFER TO APPROPRIATE EXIT DEVICE TEMPLATE. a. Ø.375 RACE WAY FOR ELECTRO LYNX APPLICATIONS REFER TO MCKINNEY TRANSFER CATALOG.
  • b. DOOR MANUFACTURER TO MAKE PROVISIONS TO PROTECT WIRES FROM ABRASION. c. DOOR MANUFACTURE TO PROVIDE CLEARANCE REINFORCEMENT TO ALLOW INSERTION OF ELECTRICAL HINGE. d. CONSULT WITH POWER TRANSFER MANUFACTURER FOR DEVICE CUTOUT. SUITABLE REINFORCEMENT REQUIRED FOR METAL DOORS. BEVEL REQUIRED (NOT SHOWN), PREP TO ANSI A115 SPECIFICATIONS.
  • TOLERANCE ALL DIMENSIONS ±.015.
  • 6. FOR TRIM DIMENSIONS OR METAL DOOR PREP SEE SHEET 2.

SARGENT Sargent Manufacturing Company ASSA ABLOY 100 Sargent Drive New Haven, CT 06511

DOOR MFG TEMPLATE: 773-8 & 774-8 SOLENOID OPERATED "ET" CONTROL FOR USE WITH 8500 & 12-8500 SERIES NARROW STYLE RIM TYPE EXIT DEVICES WOOD DOOR (SHEET 2 OF 2)

06-JUL-10 TEMPLATE NO. 4529 C
