Metal Jamb Template T-Strike – T-LS01999-Rev02

Open the original PDF document

NOTES:

1. 3300 LOCKSETS REQUIRE #8-32 FLAT HEAD UNDERCUT SCREWS FOR MOUNTING ON METAL FRAMES. THESE SCREWS ARE NOT INCLUDED IN THE STANDARD UNIT BOX. SEE CHART FOR AVAILABLE SCREWPACKS.
2. CENTERLINE OF STRIKE MOUNTING HOLES MUST COINCIDE WITH THE CENTERLINE OF THE DOOR AS IT SITS IN THE FRAME.

RE\		ECO NO.	DATE
02	CHANGED TEMPLATE TO CALL OUT WOOD AND METAL JAMB PREPS ON SEPERATE PAGES	OT18001	10/4/2018

REQUIRED SCREWS: #8-32 x 1/4" UPHS

AVAILABLE FROM HAGER: #8-32 x 3/4" UPHS (COMBO), 100 COUNT PACKS.

A = 1/2 (DOOR THICKNESS) + SILENCERS OR WEATHER STRIPPING EXAMPLE: A = 1/2 (1-3/4") + 1/8 = 1"


	DRAWN	KJW	10/4/2018
	ENG. APPR.	MAM	10/4/2018
•	Q.A.
	HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES
	WITHOUT NOTICE, CALL HAGER
	ENGINEERING AT 1-800-325-9995 FOR THE LATEST REVISION DATE

3300 SERIES

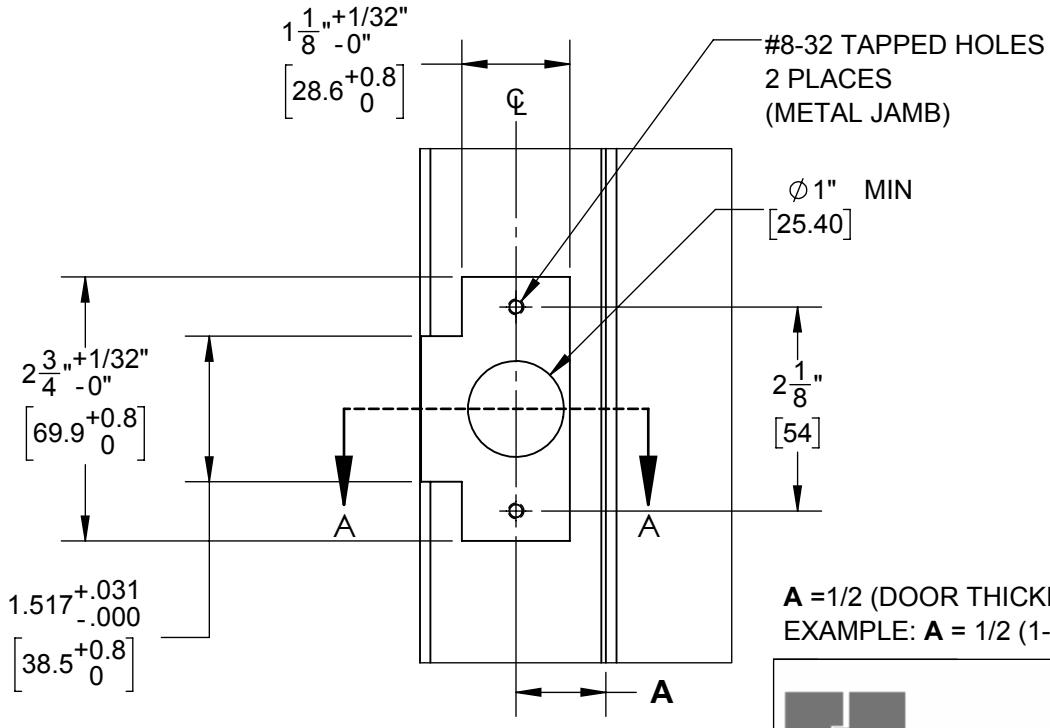

METAL JAMB T-STRIKE TEMPLATE

5	SIZE DWG. NO. T-LS01999			^REV. 02
	SCAL	E:1:2	WEIGHT: 6.728	SH	HEET 1 OF 2

REV. DESCRIPTION

ECO NO.

DATE

1. CENTERLINE OF STRIKE MOUNTING HOLES MUST COINCIDE WITH THE CENTERLINE OF THE DOOR AS IT SITS IN THE FRAME.

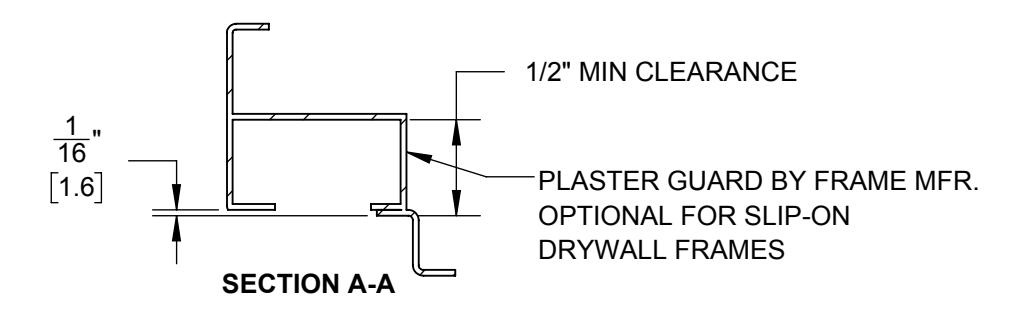

$\bf A$ =1/2 (DOOR THICKNESS) + SILENCERS OR WEATHER STRIPPING EXAMPLE: $\bf A$ = 1/2 (1-3/4") + 1/8 = 1"


	DRAWN	KJW	10/2/2018
	ENG. APPR.	MAM	10/4/2018
	Q.A.
	HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES
WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-999 FOR THE LATEST REVISION DATE
	OF TEMPLATE.

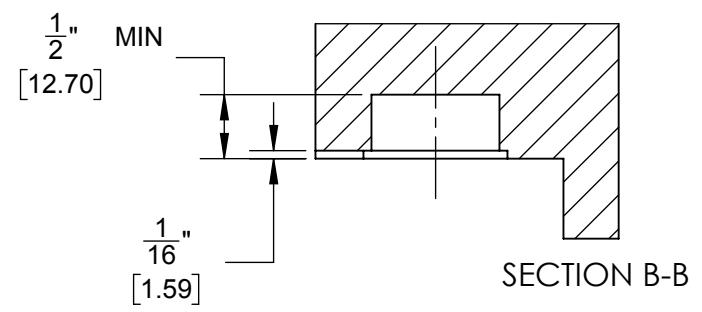

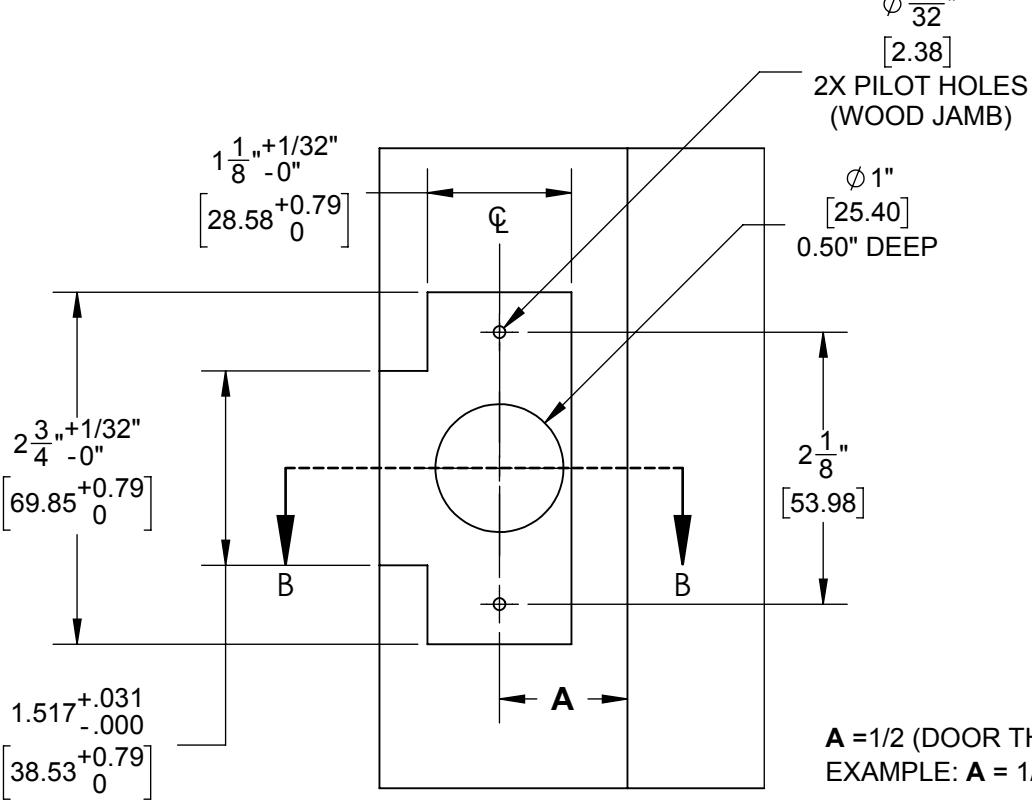

WOOD JAMB T-STRIKE TEMPLATE

3300 Series

5	SIZE	DWG.	NO. T-LS01999		^REV. 02
	SCALE:2:3		WEIGHT: 1.13	SHEET 2 OF 2
