Retail Security Solutions

medeco.com

Intelligent Key Management

Key management is an essential part of any Retail Loss Prevention program, but is often expensive to maintain and time consuming to manage. The Medeco XT electronic locking system is a unique solution that provides simple and secure key management along with the scheduling and tracking benefits of a standalone access control system.

The Medeco XT system is made up of three simple elements: electronic locks, programmable keys and system management software. These elements work together to provide effective access control and accountability for virtually every application in a retail environment. From perimeter doors to fixtures and displays, Medeco XT is a plug-and-play electronic solution that eliminates the ongoing cost of rekeying mechanical locks.

Medeco XT Electronic Locking System

Medeco XT system works like a basic access control system. Keys are programmed to operate specific locks during a set schedule and then assigned to a user. Once the key is past its schedule, the user can no longer open any locks. Schedules also contain a date range which can be set from one day to one year. As the key is used throughout its schedule, every access and unauthorized attempt is recorded in the key and the lock, then uploaded to the software when the key is resynchronized.

The captured (audit) data is then used to generate reports showing where and when the key was used. Exception reports can be generated to

identify questionable activities that may require further investigation; such as unauthorized attempted openings after hours or in unauthorized areas. If a key is misplaced or stolen, the locks can be electronically updated to deny access, eliminating the cost re-keying traditional locks.

The lock itself is plug-and-play. All power for the lock is provided by the key, so there is no need for hard-wiring. Simply remove the mechanical lock, replace it with a Medeco XT lock, and your system is ready to use.

Access Control at a Fraction of the Cost

With Medeco XT you can:

• • Eliminate the cost of rekeying mechanical locks
• • Track all access activities
• Prevent unauthorized access
• Schedule keys to operate and expire at specific times
• • Create reports to show all access activities

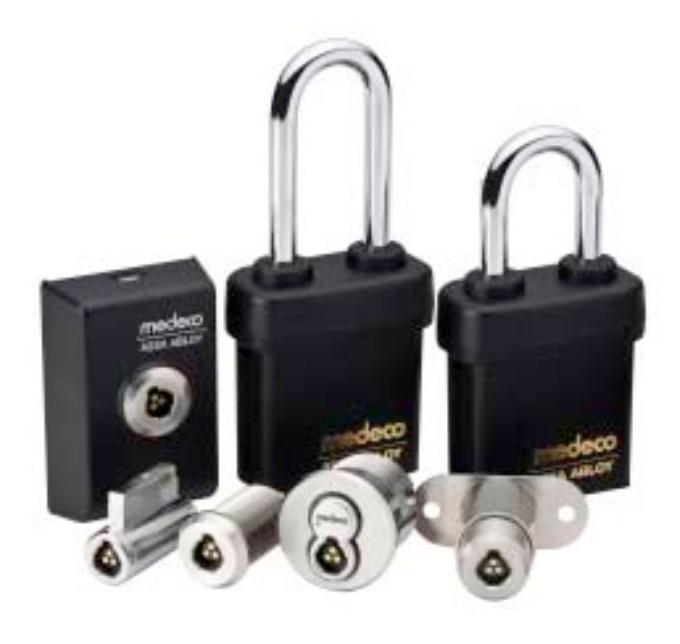

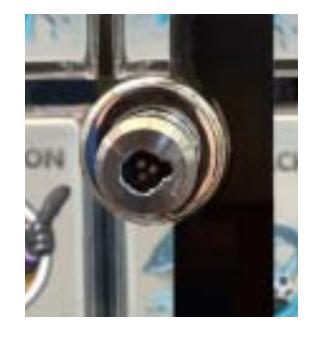

Medeco XT Electronic Locks:

• • Heavy duty design and construction
• Plug-and-play installation, no hard-wiring required
• • Stores up to 2,000 time and date stamped audit events
• Available for facility, displays and equipment applications

Medeco XT Programmable Key

• • Provides all power to the lock
• • Rechargeable battery provides up to 1500 openings
• Access: Up to 5,000 locks
• Audit: Up to 5,000 events
• Heavy duty stainless steel construction
• Standalone and Web Software Available

Retail Applications:

• • Cash Registers and Carts
• Managers Offices
• • Cash Offices & Safes
• Perimeter Doors
• • HR & IT Offices
• Loss Prevention Offices
• • Jewelry Cases
• • Roll Up Bay Doors
• Trash Compactors
• Roof Access Hatch Doors
• • Vending Machines
• • Electronic Display Cases
• • Pharmacy Doors & Cabinets
• • File Cabinets
• • Sporting Goods Displays
• • Product Inventory Cages
• • Fitting Room Doors
• • Restroom Doors
• • Warehouse Distribution Centers
• • Truck Containers
• • Alarmed Exit Devices
• • Key Cabinets
• • King Pin Locks
• • Vendor Delivery Entrances

ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
