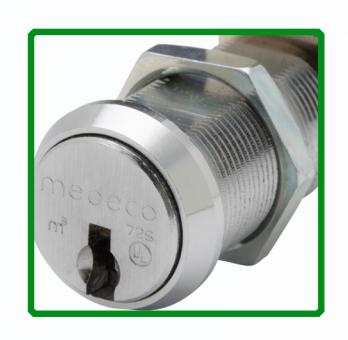

A Proven Reputation for High Security and Performance
Medeco® high security cam locks are well recognized throughout the world as the standard for high security in a wide variety of applications. Medeco mechanical cam locks feature unique cylinder designs that provide unmatched security and flexibility. The Medeco XT Electromechanical Cam Lock takes that security to a whole new level with electronic scheduling, rekeying and audit.

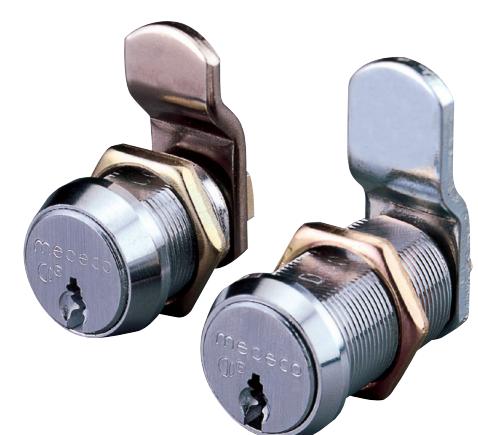

Medeco cam locks are available in a wide variety of standard sizes and functions, along with custom products to meet your specific needs. Locks can be keyed different, keyed alike, or master keyed.
Original Equipment Manufacturer
With experienced product designers, engineers, machinists and toolmakers, Medeco is capable of assisting with the design of custom products and providing rapid prototyping to ensure proper fit into any application.
Applications:
- Safes and lock boxes
- Utility cabinets
- Revenue security
- Equipment access
- Narcotics storage
- Retail fixtures
- Gaming and Lottery Equipment
- Ticket dispensing equipment
- Aviation access and storage
- Parking Equipment
- Custom / OEM
- More
Key Technologies
Medeco XT
Take over forty years of security expertise, add electronic intelligence and the result is Medeco XT. All the security that made Medeco an industry leader is now combined into a smart lock and key system with scheduled access control, complete audit reporting, key expirations and electronic rekeying; without any hard wiring.
Medeco3
Introduced in 2003, the Medeco3 technology added a secondary locking element lock and key for even greater security and keying capabilities. Medeco3 's patented high security technology provides protection against unauthorized duplication of keys.
Medeco DuraCam and HD Keyways
Unique design and thicker keys provide added durability for those applications that require both high security and extreme durability. DuraCam's patented high security technology provides protection against unauthorized duplication of keys.
Medeco Biaxial
Medeco's second generation of high security designs, Medeco Biaxial enhanced the orginal Medeco design to once again raise the bar in the security industry.
Medeco Original
The revolutionary design that changed the security industry and gave consumers a whole new level of security and key control.
Security and Key Control
A wide variety of options are available to provide manufacturers, distributors, and end users with solutions that best meet their needs.
Electronic Programming – Medeco XT offers the benefits of electronic access control in a key operated lock. Keys are programmed to operate designated locks during a set schedule. Medeco XT locks and keys also record every access and attempted access for full visibility to who went where, and when.
Factory Restricted Key Programs – provide the highest level of security to end users that prefer a mechanical key system. Keys are only duplicated at the Medeco factory and require proper authorization. Key blanks are not available to any Medeco resellers.
Service Center Programs – offer end users fast response when they need locks and keys. Factory Authorized Medeco Service Centers are full service distributors servicing a wide variety of markets. Key control programs are strictly upheld and duplicate keys are provided only with proper authorization.
OEM Manufacturer Programs – are designed to meet the very specific needs of our OEM customers. Depending on the security needs of the end user, these programs can range from Commercial to Factory Restricted.
Commercial Keyway Programs – give end users flexibility for obtaining extra keys by allowing key duplication at a wide variety of professional outlets including authorized locksmiths.

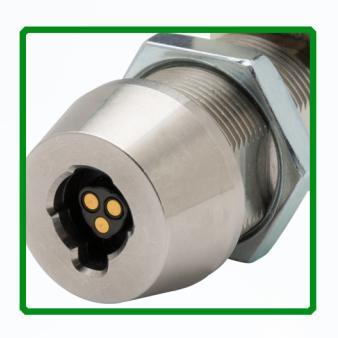

Medeco XT
Medeco XT Cam Locks are part of a complete electronic locking system that allows end users to schedule access, track all access activities and eliminate rekeying costs. Medeco XT keys are electronically programmed to operate only specific locks during a designated schedule. To change access rights, keys simply need to be reprogrammed. Audit information recorded in both the lock and key shows a record of every authorized access and unauthorized attempted access.
Medeco XT cam locks are easy to install. Simply remove the original cam lock and replace it with the Medeco XT. With Medeco XT, all power comes from the key so there is no hard wiring required, allowing access control at virtually any cam lock application.
High Security – UL Listed

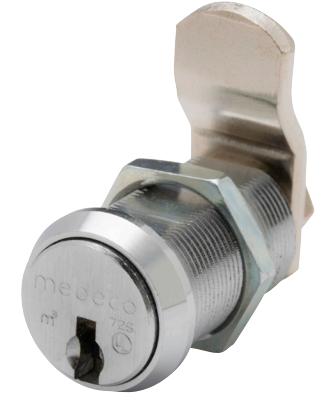

Medeco® High Security UL Listed cam locks are ideal for applications that require the highest level of protection against physical attack. These locks feature solid machined brass cylinders with hardened steel inserts to protect against drilling, prying and other types of forced entry.
High Security – Non-UL Listed
Similar to the High Security UL Listed series, Medeco High Security Non-UL Listed Cam Locks are manufactured from solid brass to provide durability and lasting performance. These locks incorporate the same high security operating design found in the UL Listed products without the added cost of hardened drill resistant features.
Medeco Biaxial HD Keyway
Medeco Biaxial HD Keyway Cam Locks feature a wider keyway and an extra heavy duty key for extreme applications requiring higher torque strength. Keys for Medeco Biaxial HD Cam Locks are 33 percent thicker than standard Medeco Biaxial keys.
DuraCam
The Medeco® DuraCam series was specifically designed to meet the demanding requirements of the gaming industry. With a 1/8 inch thick key cut on the broad side instead of on top, DuraCam offers one of the strongest keys in the market; guaranteed against breakage.
7 Series Removable Core
Medeco cam locks are also available with a Removable Core feature. This allows the core of the lock to be changed quickly, providing an entirely new combination. Removable Core cam locks are recommended for applications where immediate action is required when keys are lost or stolen.
MVP

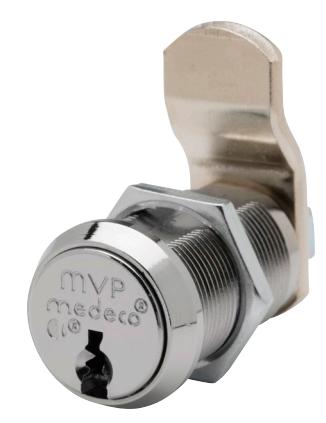

Medeco® MVP cam locks are designed to offer a cost effective solution without compromising on key control and pick resistance. MVP cam locks are manufactured from high density zinc die cast, and offer the same key control advantages as well as pick resistance of standard Medeco cam locks.
Medeco T-Bolt Cam Lock
Medeco T-Bolt cam locks are designed for use in desk drawers or other applications requiring vertical or horizontal motion of the bolt (cam) to unlock. Similar in function to deadbolt cabinet locks, T-Bolt cam locks are ready to fit the same standard 3/4 inch double D hole prep as conventional cam locks. 180˚ clockwise rotation of key retracts bolt 5/16 inch. Medeco T-Bolt cam locks are UL Listed and available in both key retaining and non-key retaining.
Which technology is right for you? For more information go to www.medeco.com/camlocks
Medeco® Warranty for Mechanical and Electromechanical Products
Medeco Security Locks Inc. ("Medeco") warrants to the original purchaser of a Medeco branded lock, lock cylinder, or electromechanical door hardware product (referred to collectively as "Product") to be free of defects in material and/or workmanship for a period of two (2) years from the date of original purchase for use. This Warranty may also apply to other specific products. For additional Warranty information or Warranty claim service contact Medeco Customer Service at (800) 839-3157 or in Canada (888) 633-3264.
In the event of a defect in material or workmanship during the Warranty period, Medeco will repair or replace (at its option) the Product under the conditions of this Warranty, this action being the sole remedy available to the purchaser under this express limited Warranty.
Limitations, Exclusions and other Rights:
- a. Medeco disclaims liability for implied warranties including but not limited to those of merchantability or fitness for any particular purpose.
- b. Medeco disclaims liability for indirect, incidental or consequential damage at any time.
- c. Medeco warrants that Maxum deadbolt products are free from defects in materials and workmanship for the life of the product. This warranty does not cover defects or damage arising from improper installation, lack of or improper maintenance, ordinary wear and tear, misuse, abuse, or accident.
- d. This Warranty gives specific legal rights and a buyer may also have other rights that may vary from state to state. Some states do not allow limitations on indirect, incidental, and consequential damages or implied warranties so that the above limitations may not fully apply.
- e. Medeco keyblanks are made from a special nickel silver alloy. Medeco warrants its keys against defects in workmanship or breakage for the life of the Product. Bitted Medeco keys must be precisely cut to exact angles and depths, and require special duplication. This Warranty shall be void and Medeco disclaims liability of any kind in the event any key other than a genuine Medeco key has been used with the Product or that the key has been cut on any machine other than a Medeco or Medeco-approved key cutting machine.
- f. Medeco shall not be held responsible for damage arising from, in its sole judgment, improper installation, failure to provide normal maintenance, extreme environmental conditions, use rates in excess of the industry standards defined for the type of product, use of incompatible parts or products not made or authorized by Medeco, or application of force not resulting from normal use.
- g. Unless otherwise specified by separate warranty, finishes are warranted for a period of two years following purchase for use. This finish Warranty shall be considered void after installation if, in the sole judgment of Medeco, the damage to the finish is the direct result of extreme climatic conditions, chemical or abrasive actions.

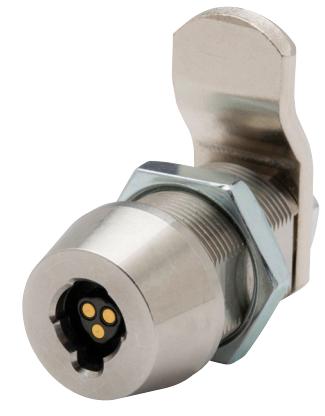

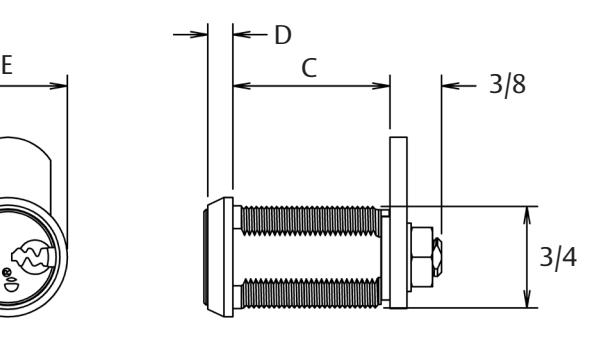

Medeco XT Cam Lock
Features:
• Medeco XT cam locks provide strong physical security with electronic access control functionality.
Mechanical Specifications:
-
Stainless steel shell and front disc
- Gold plated data contacts
- Key retaining (single key pull)
-
Fits standard 3/4" cam lock hole prep
- Drill and tamper resistant
- Indoor and outdoor use
- Cams sold separately
Electronic Specifications:
- Lock holds up to 2000 audit events
-
No hard wiring required, all power is provided by the key
- Encrypted data communication
- All access programming performed through the key
- Lock can hold black-list of unauthorized keys
Keyways:
• Medeco XT
|

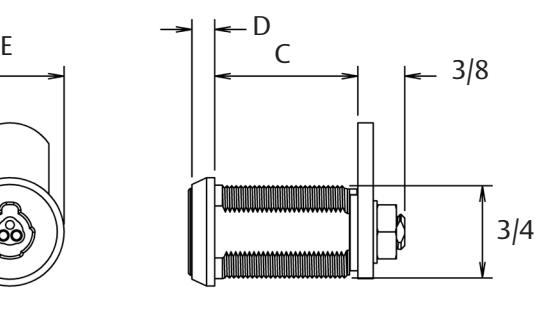

Part
Number |
Body
Length (C) |
Head
Thickness (D) |
Head
Diameter (E) |
|---|---|---|---|

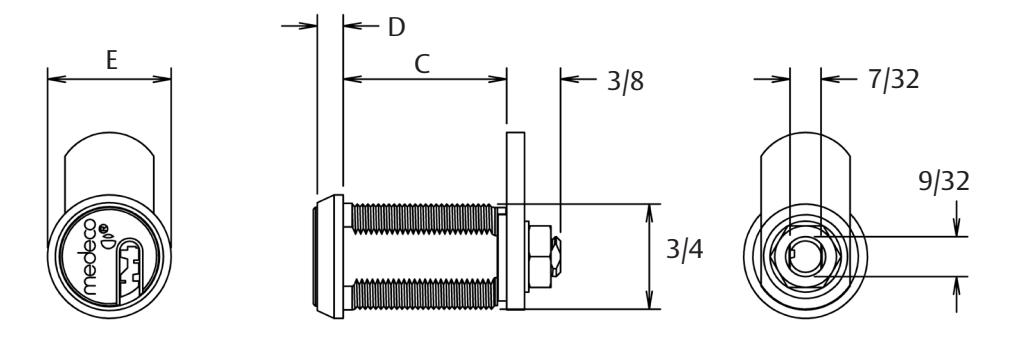

| EN-150002 | 0.875 | 0.438 | 0.875 |
| 7/8 | 7/16 | 7/8 | |
| EN-150003 | 1.125 | 0.188 | 0.875 |
| 1 1/8 | 3/16 | 7/8 |

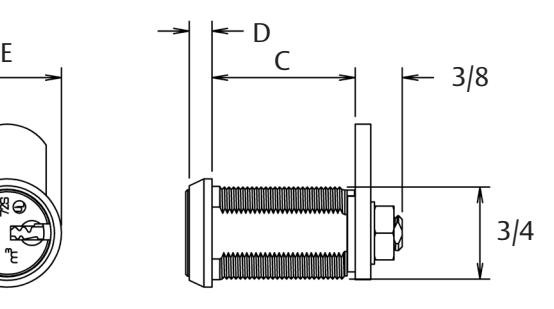

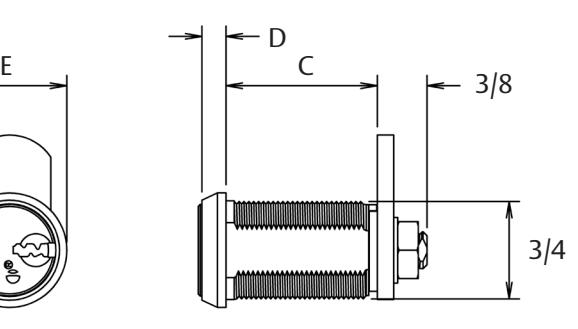

High Security – UL Listed Cam Lock
Features:
• Medeco High Security UL Listed cam locks feature hardened inserts for the best protection against physical attack.
Mechanical Specifications:
- UL437 Listed
-
Machined brass plug with hardened inserts
- Machined brass outer shell
- Keyed alike or keyed different
- Master keyed with other cam lock style products
- Key retaining or multiple key pulls
- Clockwise or counterclockwise rotation
-
Standard finish: brushed chrome
- Special finishes available
-
Fits standard 3/4" cam lock hole prep
- Cams sold separately
| Keyways: |
|---|
- Medeco Original
- Medeco Biaxial
- Medeco 3
|
Body
Length (C) |
Head
Thickness (D) |
Head
Diameter (E) |
Number of
Pins |
|---|---|---|---|
|
0.620
5/8 |
0.183
3/16 |
0.865
7/8 |
3 |
| 0.615 | 0.337 | 0.865 | 4 |
| 5/8 | 3/8 | 7/8 | |
| 0.625 | 0.497 | 0.990 | 5 |
| 5/8 | 1/2 | 1 | |
| 0.870 | 0.183 | 0.865 | 4 |
| 7/8 | 3/16 | 7/8 | |
| 0.857 | 0.265 | 0.865 | 5 |
| 7/8 | 1/4 | 7/8 | |
| 1.145 | 0.183 | 0.865 | 5 |
| 1-1/8 | 3/16 | 7/8 | |
| 1.526 | 0.183 | 0.865 | 5 |
| 1 1/2 | 3/16 | 7/8 | |
| 1.992 | 0.265 | 0.865 | 5 |
| 2 | 1/4 | 7/8 | |
High Security – Solid Brass Cam Lock
Features:
• Medeco High Security solid brass cam locks are ideal for applications where durability and key control are the primary concerns.
Mechanical Specifications:
-
Machined brass plug and outer shell
- Keyed alike or keyed different
- Master keyed with other cam lock style products
- Key retaining or multiple key pulls
-
Clockwise or counterclockwise rotation
- Standard finish: brushed chrome
- Special finishes available
-
Fits standard 3/4" cam lock hole prep
- Cams sold separately
Keyways:
- Medeco Original
- Medeco Biaxial
- Medeco 3
|
Part
Number |
Body
Length (C) |
Head
Thickness (D) |
Head
Diameter (E) |
Number of
Pins |
|---|---|---|---|---|
| 60-61555T | 0.625 | 0.497 | 0.990 | 5 |
| 5/8 | 1/2 | 1 | ||
| 60-63555T | 0.857 | 0.265 | 0.865 | 5 |
| 7/8 | 1/4 | 7/8 | ||
| 60-65555T | 1.145 | 0.183 | 0.865 | 5 |
| 1 1/8 | 3/16 | 7/8 |
HD Series Cam Lock
Features:
• HD Series solid brass cam locks feature an extra thick keyway and heavy duty key for higher torque applications where key breakage is a concern.
Mechanical Specifications:
-
Machined brass plug and outer shell
- Keyed alike or keyed different
- Master keyed with other cam lock style products
- Key retaining or multiple key pulls
-
Clockwise or counterclockwise rotation
- Standard finish: brushed chrome
- Special finishes available
-
Fits standard 3/4" cam lock hole prep
- Cams sold separately
Keyways:
• HD Series Biaxial
|
Part
Number |
Body
Length (C) |
Head
Thickness (D) |
Head
Diameter (E) |
Number of
Pins |
|---|---|---|---|---|
| 60-61755T | 0.625 | 0.497 | 0.990 | 5 |
| 5/8 | 1/2 | 1 | ||
| 60-63755T | 0.857 | 0.265 | 0.865 | 5 |
| 7/8 | 1/4 | 7/8 | ||
| 60-65755T | 1.145 | 0.183 | 0.865 | 5 |
| 1 1/8 | 3/16 | 7/8 |

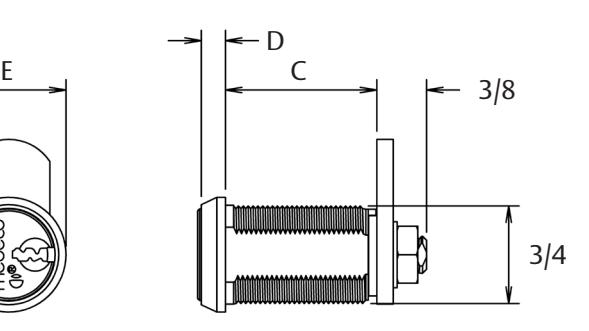

DuraCam Cam Lock
Features:
• DuraCam cam locks feature a unique side cut heavy duty key technology for applications that require the highest levels of key cycles.
Mechanical Specifications:
-
Machined brass plug and outer shell
- Keyed alike or keyed different
-
DuraCam locks cannot be master keyed
- Key retaining or multiple key pulls
-
Clockwise or counterclockwise rotation
- Standard finish: brushed chrome
- Special finishes available
-
Fits standard 3/4" cam lock hole prep
- Cams sold separately
Keyways:
• DuraCam Biaxial
|
Part
Number |
Body
Length (C) |
Head
Thickness (D) |
Head
Diameter (E) |
Number of
Pins |
|---|---|---|---|---|
| 60-62654T | 0.687 | 0.265 | 0.865 | 4 |
| 11/16 | 1/4 | 7/8 | ||
| 60-62655T | 0.687 | 0.435 | 0.956 | 5 |
| 11/16 | 7/16 | 1 | ||
| 60-63655T | 0.857 | 0.265 | 0.865 | 5 |
| 7/8 | 1/4 | 7/8 | ||
| 60-65655T | 1.145 | 0.183 | 0.865 | 5 |
| 1 1/8 | 3/16 | 7/8 | ||
| 60-66655T | 1.526 | 0.183 | 0.865 | 5 |
| 1 1/2 | 3/16 | 7/8 | ||

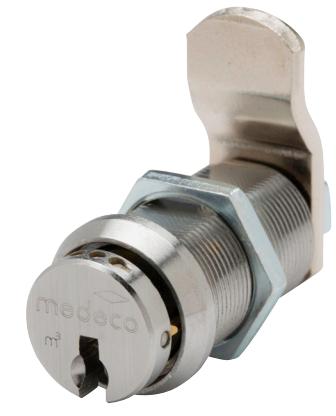

7 Series Removable Core Cam Lock
Features:
• 7 Series Removable Core cam locks offer the security and convenience of removable core in the smaller footprint of a standard ¾" diameter cam lock.
Mechanical Specifications
- Special "control" key removes the cam lock plug for fast and secure combination change / rekey
- Operating key operates the lock without removing the core
-
Machined brass plug and outer shell
- Keyed alike or keyed different
-
Master keyed with other cam lock style products
- Key retaining or multiple key pulls
-
Clockwise or counterclockwise rotation
- Standard finish: brushed chrome
- Special finishes available
-
Fits standard 3/4" cam lock hole prep
- Cams sold separately
Keyways
- Medeco Biaxial
- HD Biaxial
- DuraCam Biaxial
- Medeco 3
|
Part
Number |
Body
Length (C) |
Head
Thickness (D) |
Head
Diameter (E) |
Number of
Pins |
|---|---|---|---|---|
| Medeco3, Original, Biaxial | ||||
| 60-7155T | 0.687 | 0.640 | 0.995 | 4 |
| 11/16 | 5/8 | 1 | ||
| 60-7255T | 0.910 | 0.418 | 0.955 | 4 |
| 7/8 | 7/16 | 1 | ||
| 60-7355T | 1.145 | 0.183 | 0.865 | 4 |
| 1-1/8 | 3/16 | 7/8 | ||
| DuraCam Biaxial | ||||
| 60-7165T | 0.687 | 0.640 | 0.995 | 4 |
| 11/16 | 5/8 | 1 | ||
| 60-7265T | 0.910 | 0.418 | 0.955 | 4 |
| 7/8 | 7/16 | 1 | ||
| 60-7365T | 1.145 | 0.183 | 0.865 | 4 |
| 1-1/8 | 3/16 | 7/8 | ||
| HD Series Biaxial | ||||
| 60-7175T | 0.687 | 0.640 | 0.995 | 4 |
| 11/16 | 5/8 | 1 | ||
| 60-7275T | 0.910 | 0.418 | 0.955 | 4 |
| 7/8 | 7/16 | 1 | ||
| 60-7375T | 1.145 | 0.183 | 0.865 | 4 |
| 1-1/8 | 3/16 | 7/8 |
MVP Cam Lock
Features:
• MVP cam locks feature a high quality zinc die cast construction for security and key control at an economical price.
Mechanical Specifications:
-
High density zinc die cast plug and outer shell
- Keyed alike or keyed different
-
Master keyed with other cam lock style products
- Key retaining or multiple key pulls
-
Clockwise or counterclockwise rotation
- Standard finish: chrome
-
Fits standard 3/4" cam lock hole prep
- Cams sold separately
Keyways:
- Medeco Original
- Medeco Biaxial
|
Part
Number |
Body
Length (C) |
Head
Thickness (D) |
Head
Diameter (E) |
Number of
Pins |
|---|---|---|---|---|
| 8W1251 T | 0.620 | 0.183 | 0.870 | 3 |
| 5/8 | 3/16 | 7/8 | ||
| 80W0650 T | 1.145 | 0.183 | 0.870 | 3 |
| 1-1/8 | 3/16 | 7/8 |

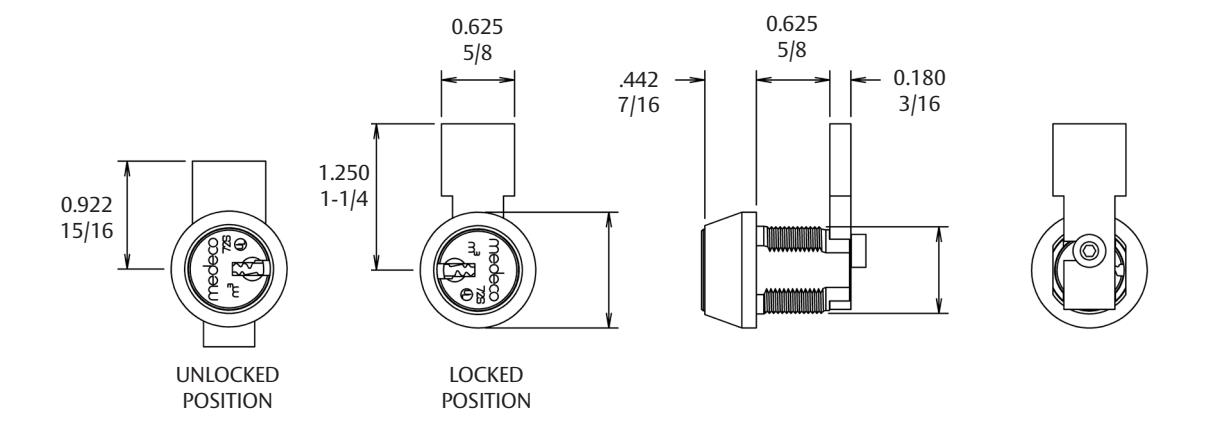

T-Bolt Cam Lock
Features:
• T-Bolt cam locks feature a deadbolt style cam commonly used in furniture and cabinet applications.
Mechanical Specifications:
- UL437 Listed
-
Machined brass plug and outer shell
- Steel bolt, 5/16" travel
- Keyed alike or keyed different
-
Master keyed with other cam lock style products
- Key retaining or two key pull
- Standard finish: brushed chrome
- Special finishes available
- Fits standard 3/4" standard cam lock hole prep
Keyways:
- Medeco Original
- Medeco Biaxial
- Medeco 3
|
Part
Number |
Lock Function / Key Pull |
Number of
Pins |
|---|---|---|
| 62-80550 |
Key Retaining - Single Key Pull
Key removed in locked position only |
5 |
| 62-82550 |
Non-Key Retaining - Two Key Pull
Key removed in locked or unlocked position |
5 |
Selecting a Medeco cam lock for your application:
- 1. Select the lock technology and series (see pages 9 15)
- 2. Determine the dimensions and then the model number
- 3. Determine the required function / operation code (see below)
- 4. If a cam is needed, select the proper cam using the mounting specifications (see pages 18 21) and cam specifications (see pages 22 25)
Medeco Cam Lock Part Number Configurations
|
Model
Number |
Operation
Code |
Finish | function of the lock. Direction of key turn, rotation, key retaining or two key-pull. |
|---|---|---|---|
| XXXXXXX | XXX | 26 |
Cam Lock Operation Codes – Fixed Core Cam Locks
Describes the function of the lock
|
Operation
Code |
Rotation
Distance |
Direction to
Unlock |
Key Retaining or
2 Key Pull |
|---|---|---|---|
| 219 | 90° | Clockwise | Key Retaining |
| 229 | 90° | Clockwise | 2 Key Pull |
| 239 | 90° | Counter-clockwise | Key Retaining |
| 249 | 90° | Counter-clockwise | 2 Key Pull |
| 259 | 180° | Clockwise | Key Retaining |
| 269 | 180° | Clockwise | 2 Key Pull |
| 279 | 180° | Counter-clockwise | Key Retaining |
| 289 | 180° | Counter-clockwise | 2 Key Pull |
Note: Key Retaining – Key is removable in the locked position only. 2 Key Pull – Key is removable in both the locked and unlocked positions.
Cam Lock Operation Codes – Removable Core Cam Locks
Describes the function of the lock
|
Operation
Code |
Rotation
Distance |
Direction to
Unlock |
Key Retaining or
2 Key Pull |
|---|---|---|---|
| 219 | 90° | Clockwise | Key Retaining |
| 239 | 90° | Counter-clockwise | Key Retaining |
| 259 | 180° | Clockwise | Key Retaining |
| 279 | 180° | Counter-clockwise | Key Retaining |
Note: Removable core cam locks are available in key retaining only.
Medeco XT

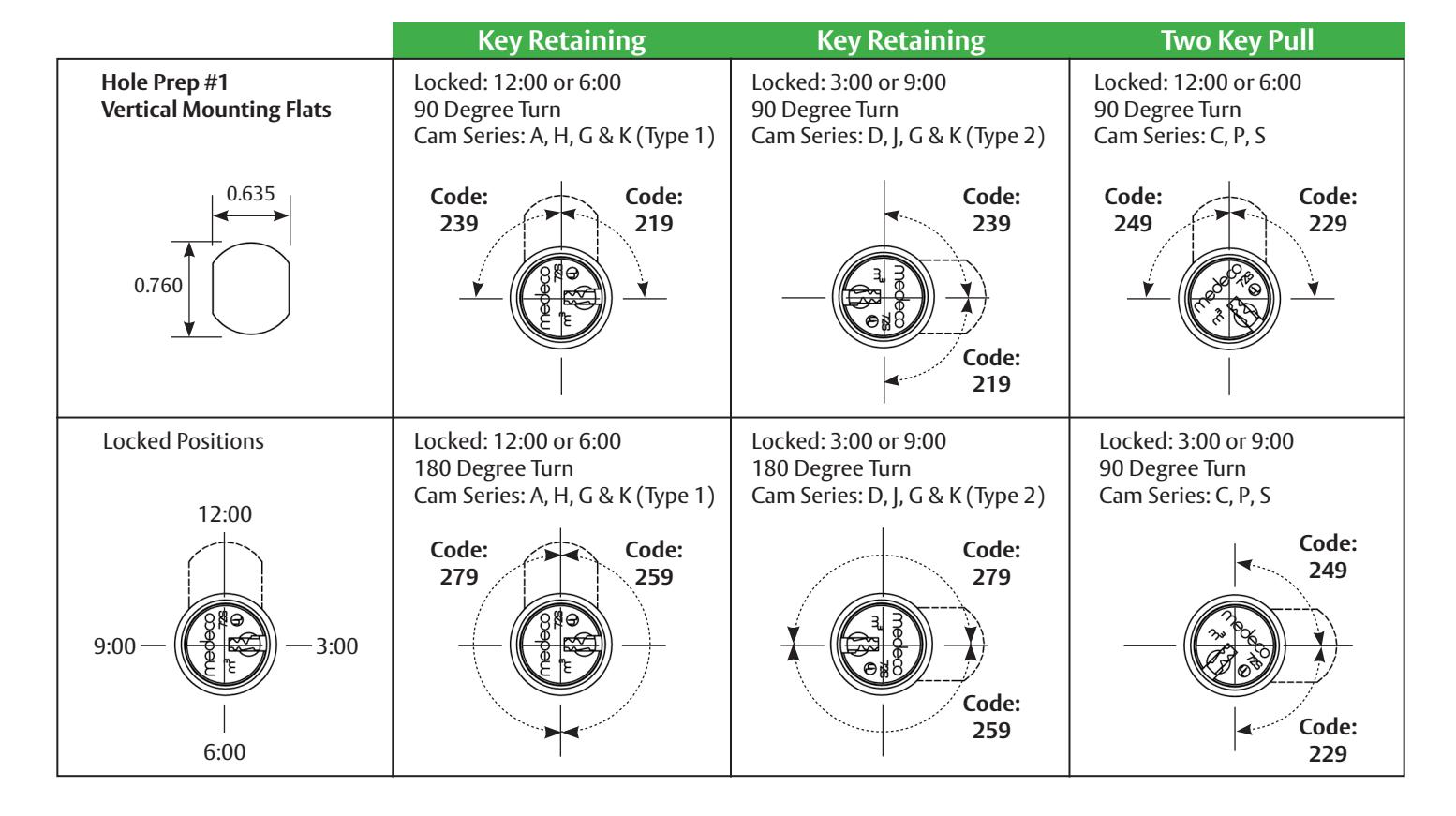

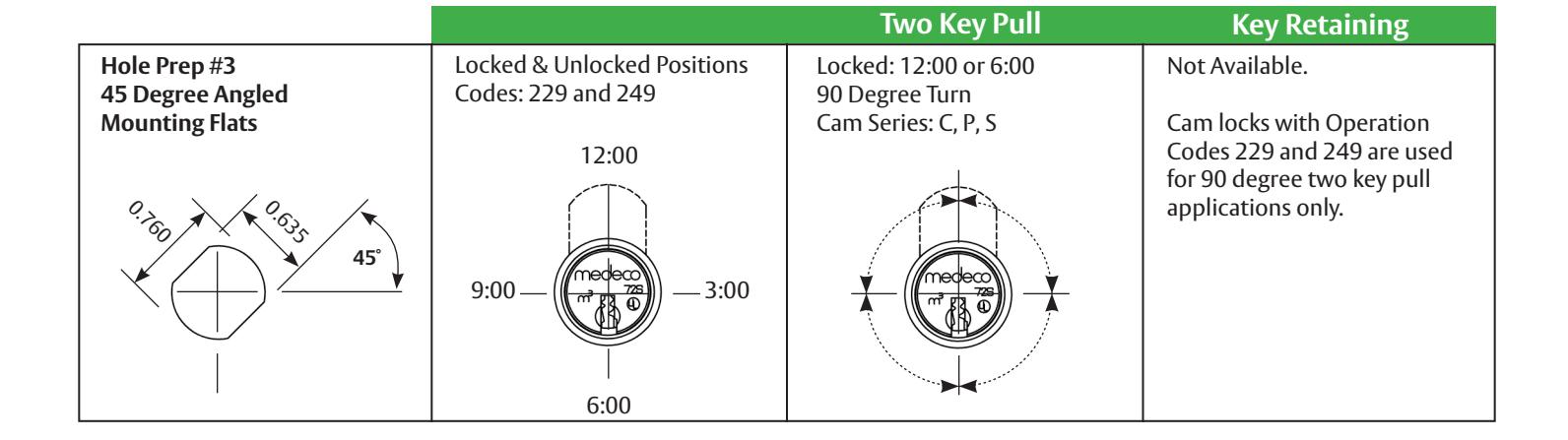

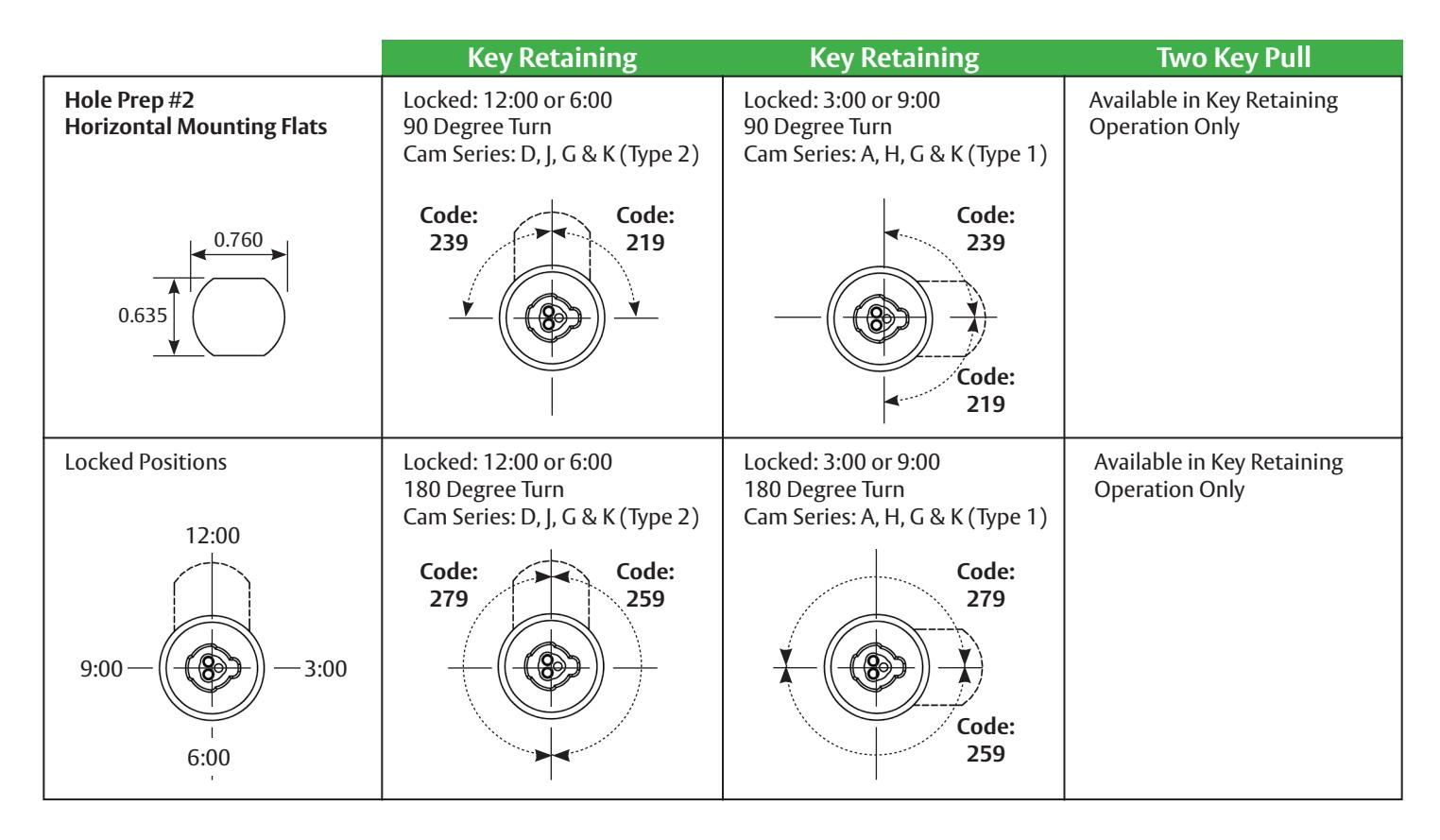

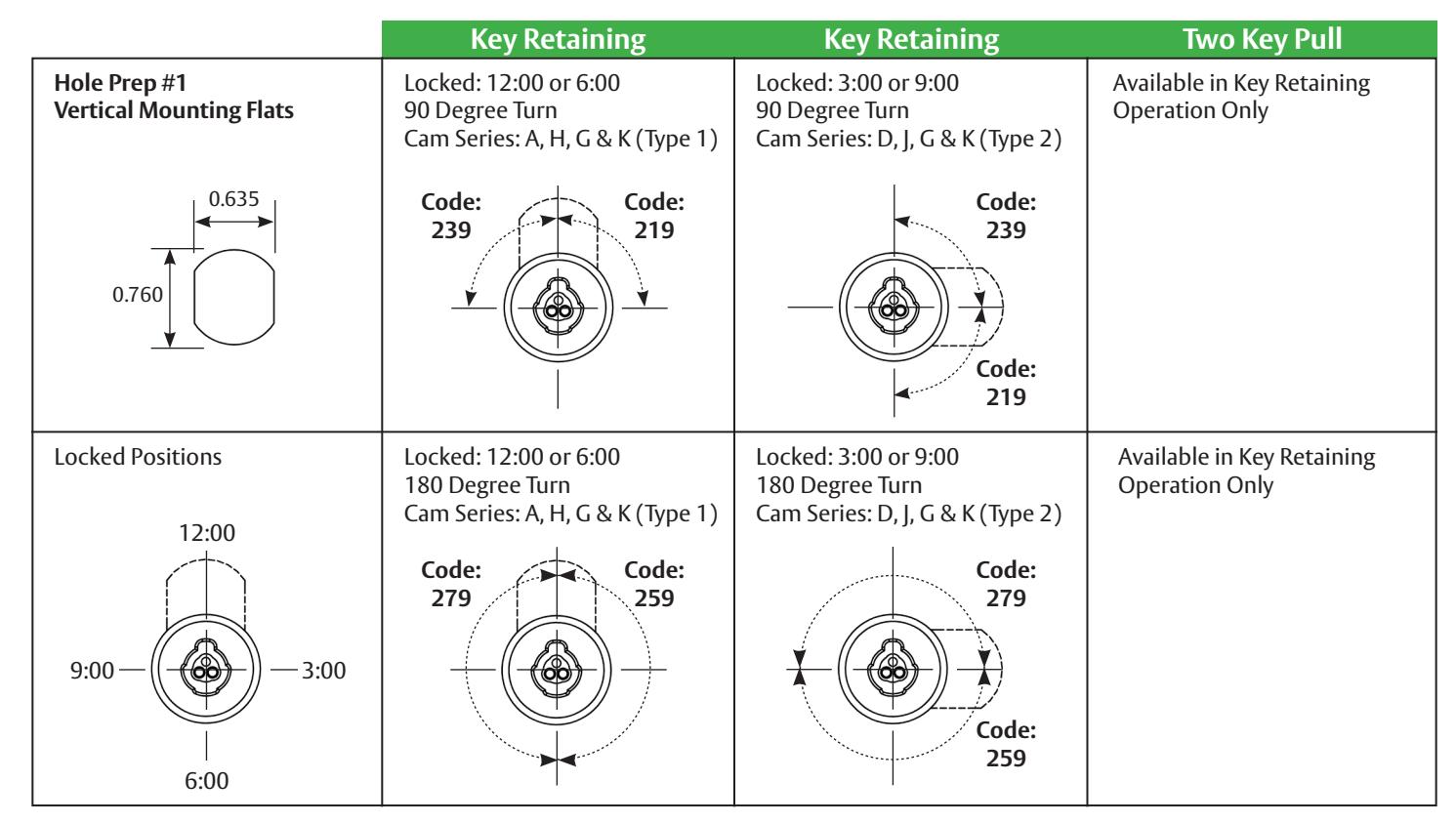

Mounting Hole Specifications – Keyway and Cam Positions

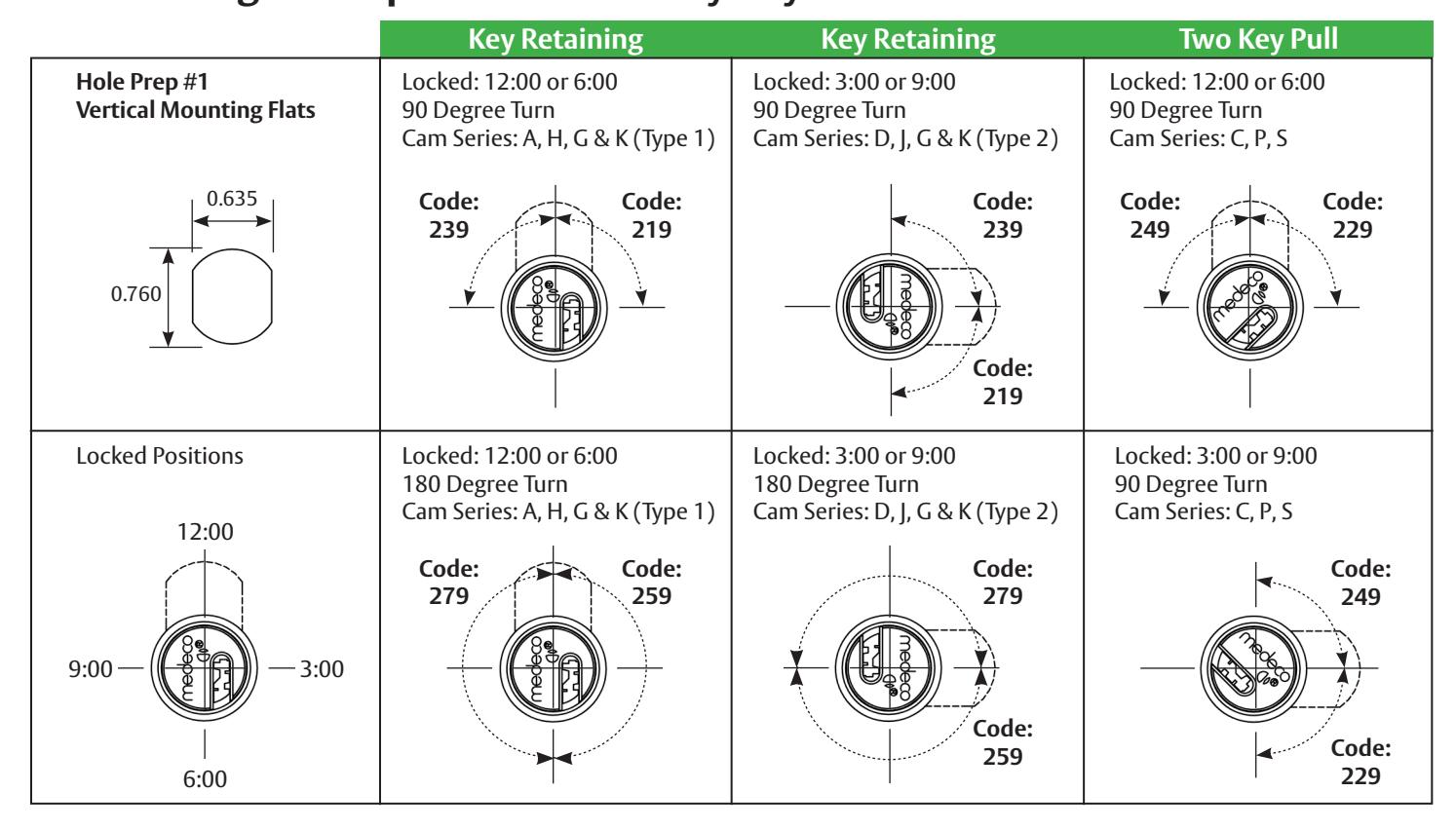

Medeco3 , Medeco Biaxial, Medeco Original and HD Keyways

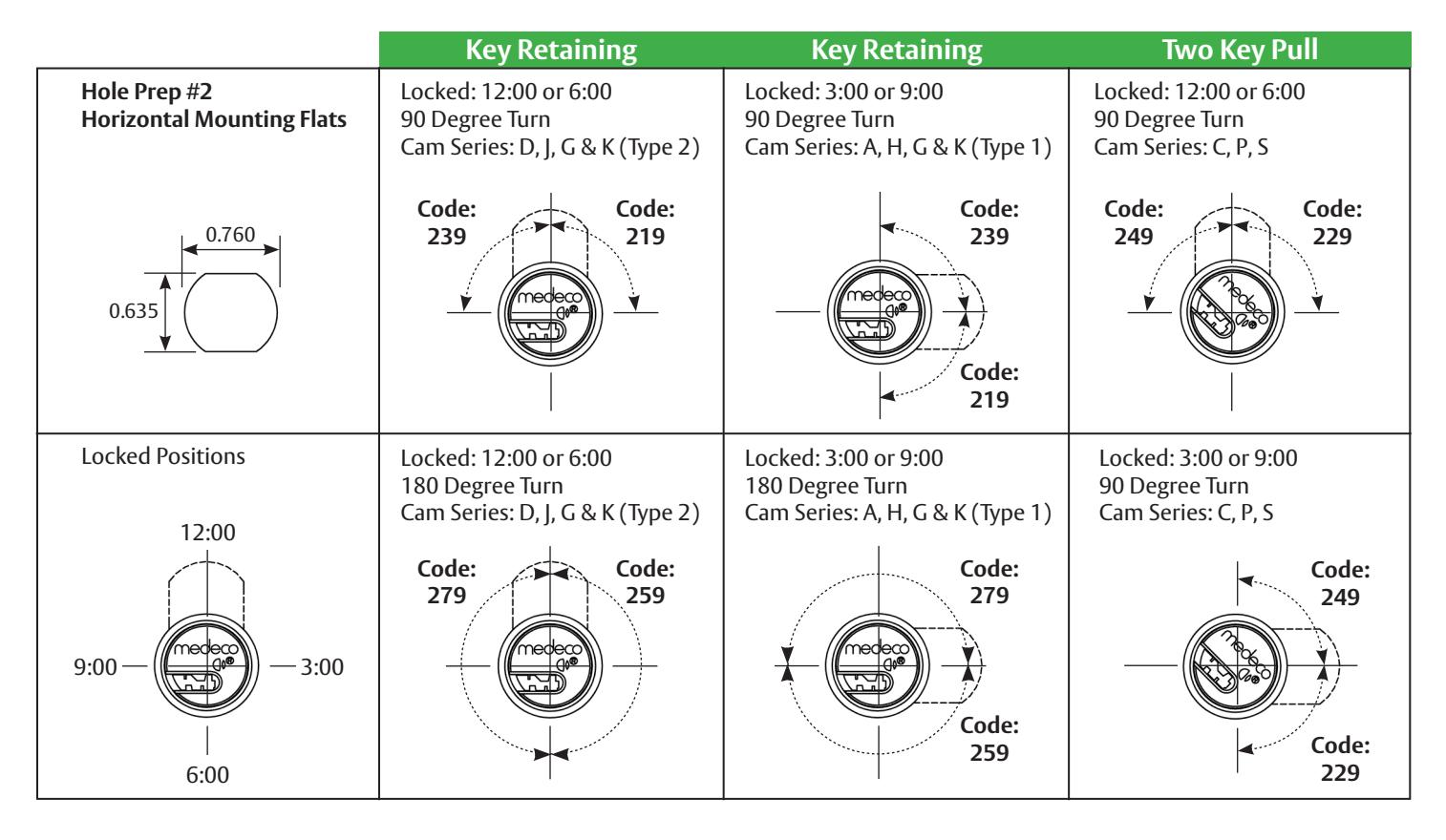

Mounting Hole Specifications – Keyway and Cam Positions
Medeco3 , Medeco Biaxial, Medeco Original and HD Keyways (cont.)

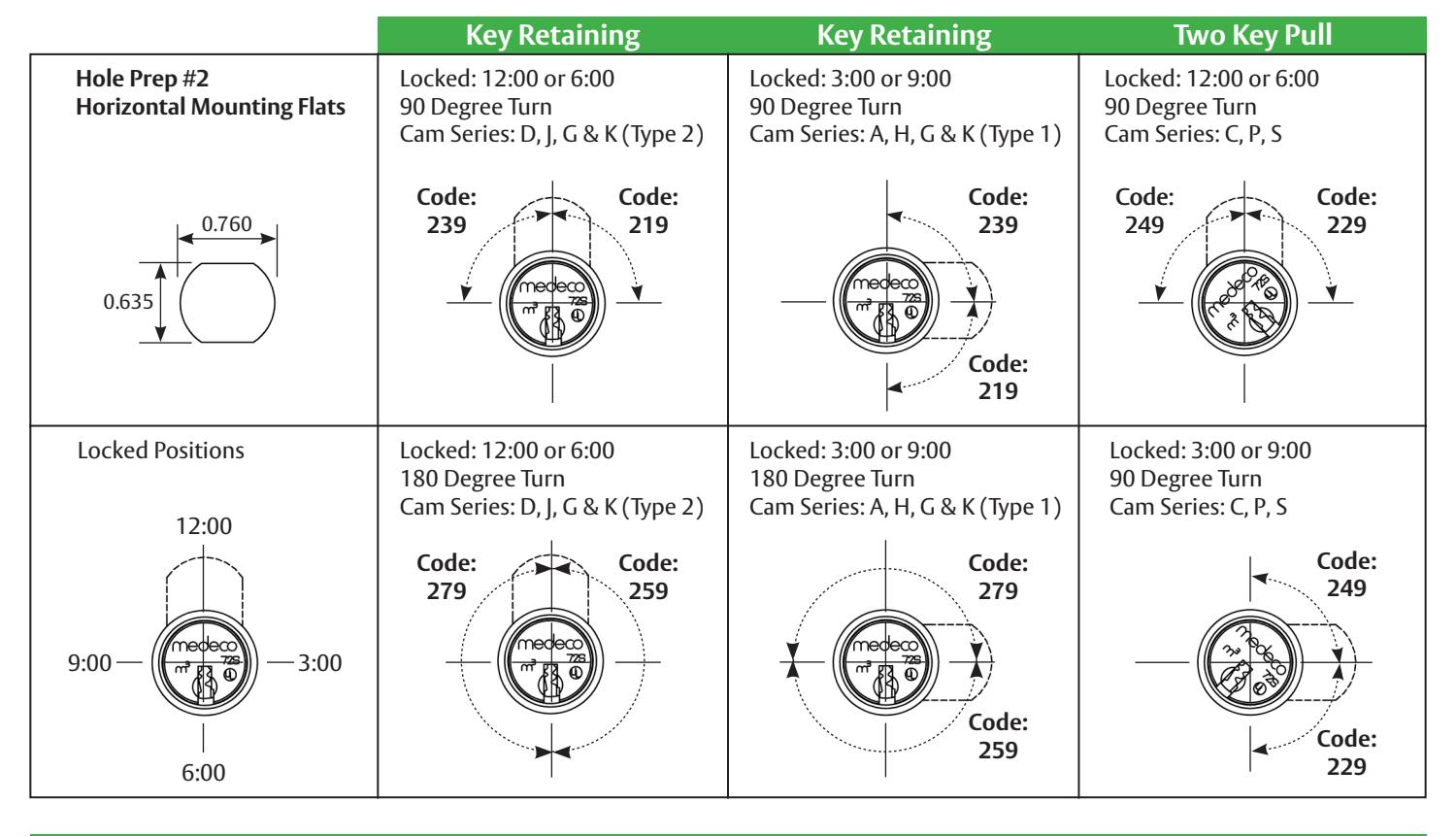

Mounting Hole Specifications – Keyway and Cam Positions
Custom Sizes and Operations:
Medeco specializes in cam locks manufactured to custom sizes (not listed in the catalog) and functions for specific OEM applications. Custom cam locks may include, but are not limited to, the following features:
- Custom lengths
- Special materials
- Custom finishes
- Single or multiple flats
- Larger diameter
- Multiple key pulls, up to eight positions
- Custom cams and extensions
For information on custom cam locks, contact Medeco Engineered Security Solutions at 1-877-633-3261.
DuraCam
Mounting Hole Specifications – Keyway and Cam Positions

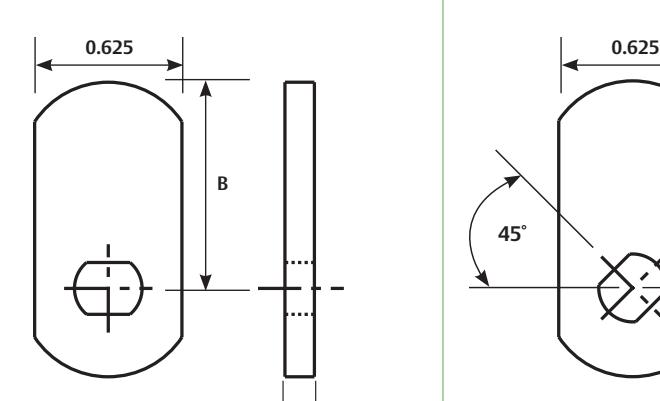

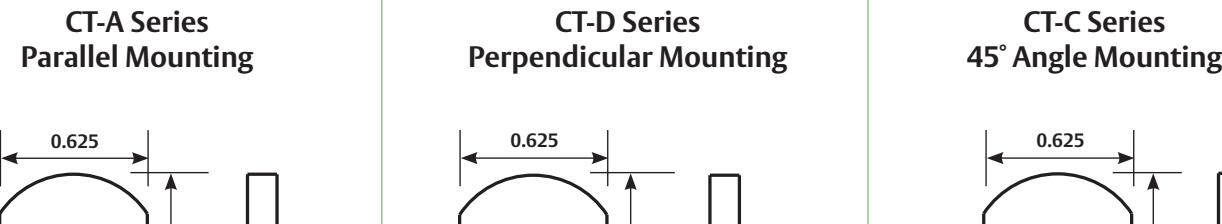

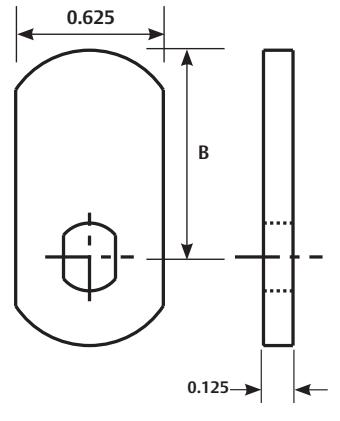

Flat Cams
| B | 45˚ | B |
|---|---|---|
| 0.125 | 0.125 | 0.125 | |||
|---|---|---|---|---|---|
| B - Length | Part # | B - Length | Part # | B - Length | Part # |
| 0.625 | CT-A00 | 0.625 | CT-D00 | 0.625 | CT-C00 |
| 0.750 | CT-A01 | 0.750 | CT-D01 | 0.750 | CT-C01 |
| 0.875 | CT-A02 | 0.875 | CT-D02 | 0.875 | CT-C02 |
| 1.000 | CT-A03 | 1.000 | CT-D03 | 1.000 | CT-C03 |
| 1.125 | CT-A04 | 1.125 | CT-D04 | 1.125 | CT-C04 |
| 1.250 | CT-A05 | 1.250 | CT-D05 | 1.250 | CT-C05 |
| 1.375 | CT-A06 | 1.375 | CT-D06 | 1.375 | CT-C06 |
| 1.500 | CT-A07 | 1.500 | CT-D07 | 1.500 | CT-C07 |
| 1.750 | CT-A09 | 1.750 | CT-D09 | 1.750 | CT-C09 |
| 2.000 | CT-A11 | 2.000 | CT-D11 | 2.000 | CT-C11 |
| 2.250 | CT-A13 | 2.250 | CT-D13 | 2.250 | CT-C13 |
| 2.500 | CT-A15 | 2.500 | CT-D15 | 2.500 | CT-C15 |
| 3.000 | CT-A19 | 3.000 | CT-D19 | 3.000 | CT-C19 |

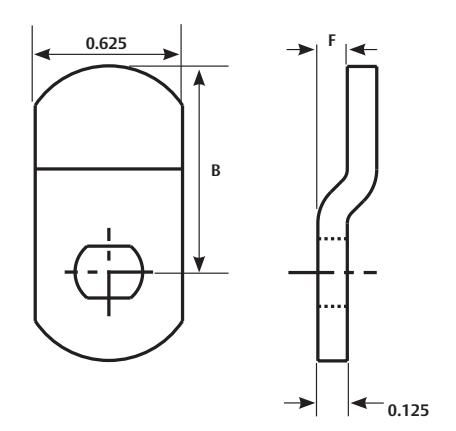

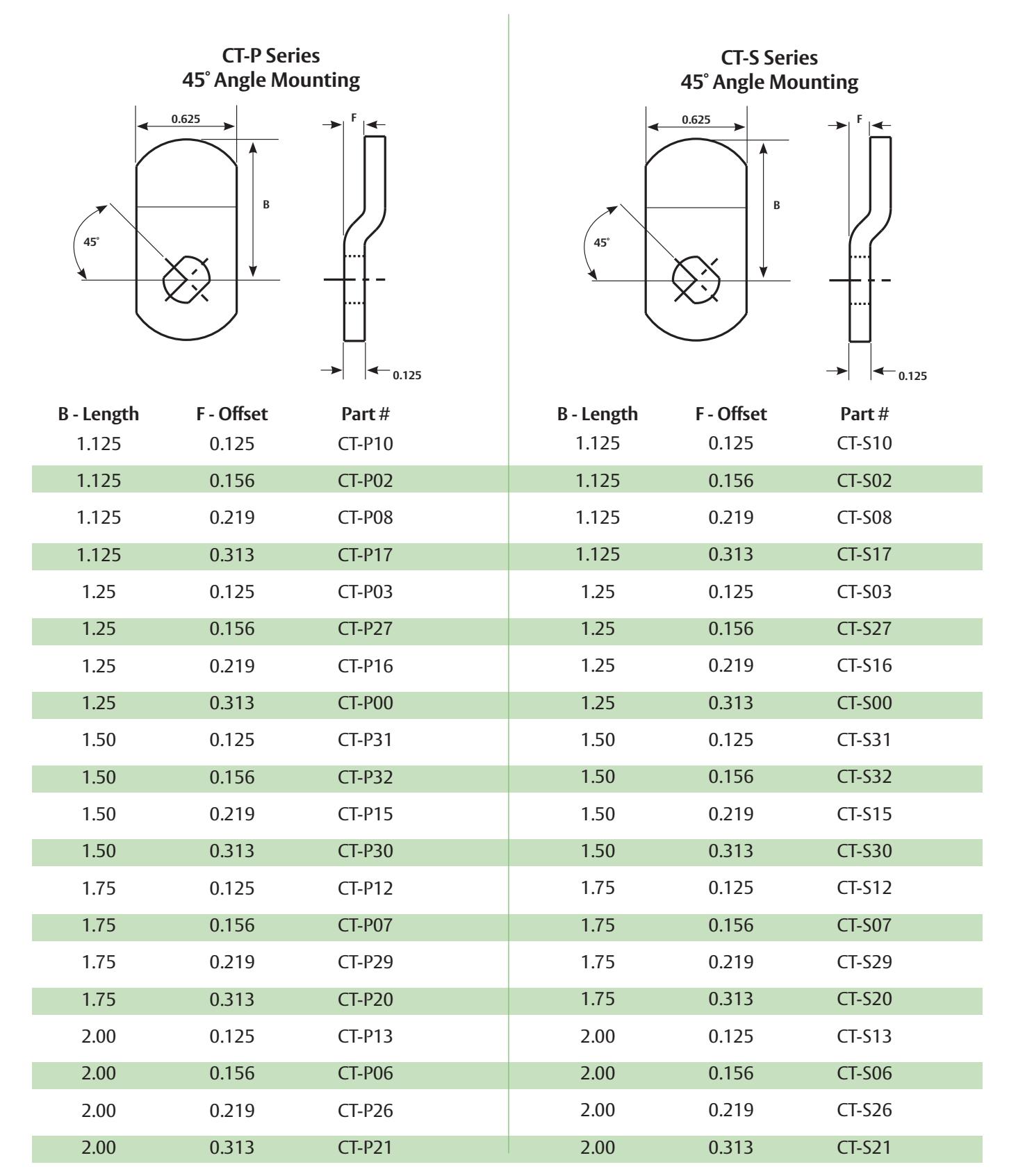

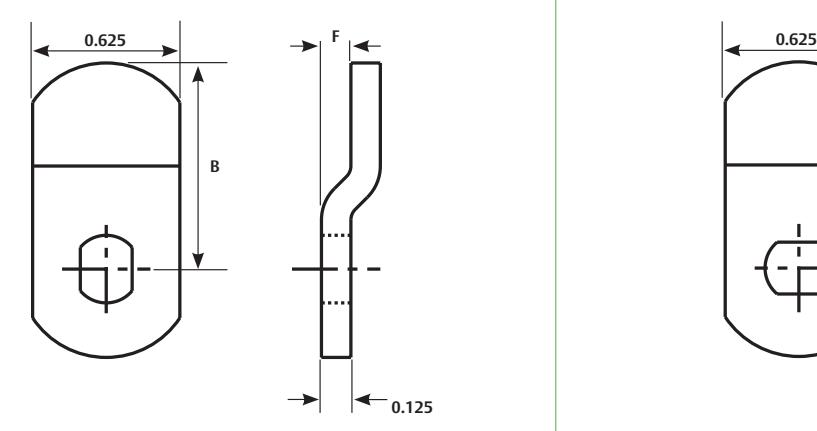

Offset Cams
CT-H Series Parallel Mounting
CT-J Series Perpendicular Mounting
|
B - Length
1.125 |
F - Offset
0.125 |
Part #
CT-H09 |
B - Length
1.125 |
F - Offset
0.125 |
Part #
CT-J06 |
|---|---|---|---|---|---|
| 1.125 | 0.156 | CT-H26 | 1.125 | 0.156 | CT-J22 |
| 1.125 | 0.219 | CT-H07 | 1.125 | 0.219 | CT-J01 |
| 1.125 | 0.313 | CT-H16 | 1.125 | 0.313 | CT-J13 |
| 1.25 | 0.125 | CT-H00 | 1.25 | 0.125 | CT-J07 |
| 1.25 | 0.156 | CT-H28 | 1.25 | 0.156 | CT-J00 |
| 1.25 | 0.219 | CT-H15 | 1.25 | 0.219 | CT-J12 |
| 1.25 | 0.313 | CT-H17 | 1.25 | 0.313 | CT-J14 |
| 1.50 | 0.125 | CT-H33 | 1.50 | 0.125 | CT-J04 |
| 1.50 | 0.156 | CT-H34 | 1.50 | 0.156 | CT-J31 |
| 1.50 | 0.219 | CT-H14 | 1.50 | 0.219 | CT-J30 |
| 1.50 | 0.313 | CT-H32 | 1.50 | 0.313 | CT-J27 |
| 1.75 | 0.125 | CT-H11 | 1.75 | 0.125 | CT-J09 |
| 1.75 | 0.156 | CT-H06 | 1.75 | 0.156 | CT-J24 |
| 1.75 | 0.219 | CT-H30 | 1.75 | 0.219 | CT-J20 |
| 1.75 | 0.313 | CT-H19 | 1.75 | 0.313 | CT-J16 |
| 2.00 | 0.125 | CT-H12 | 2.00 | 0.125 | CT-J10 |
| 2.00 | 0.156 | CT-H05 | 2.00 | 0.156 | CT-J25 |
| 2.00 | 0.219 | CT-H25 | 2.00 | 0.219 | CT-J26 |
| 2.00 | 0.313 | CT-H20 | 2.00 | 0.313 | CT-J17 |
Table dimensions ± 1/32 inch
Offset Cams
Table dimensions ± 1/32 inch

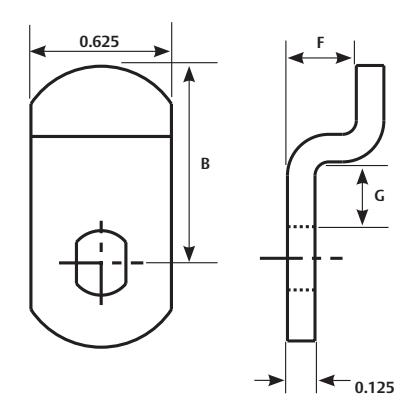

Offset Cams – 90 Degree Offset
CT-G Series Parallel, Perpendicular and 45˚ Angle (Note type listed below)
|
B - Length
0.750 |
F - Offset
1.000 |
G - Bend
0.250 |
Type
1 |
Part #
CT-G02 |
|---|---|---|---|---|
| 0.850 | 0.670 | 0.400 | 1 | CT-G05 |
| 0.875 | 0.312 | 0.438 | 1 | CT-G09 |
| 0.875 | 0.312 | 0.438 | 2 | CT-G51 |
| 0.875 | 0.500 | 0.400 | 1 | CT-G07 |
| 1.125 | 0.451 | 0.437 | 2 | CT-G55 |
| 1.125 | 0.451 | 0.500 | 1 | CT-G11 |
| 1.250 | 0.542 | 0.356 | 3 | CT-G98 |
| 1.250 | 0.546 | 0.500 | 1 | CT-G03 |
| 1.250 | 0.546 | 0.500 | 3 | CT-G99 |
| 1.375 | 0.546 | 0.750 | 1 | CT-G04 |
| 1.500 | 0.500 | 0.562 | 1 | CT-G06 |
| 1.500 | 0.500 | 0.562 | 2 | CT-G56 |
| 1.500 | 0.546 | 0.750 | 1 | CT-G01 |
| 1.500 | 0.546 | 0.750 | 2 | CT-G53 |
| 1.500 | 0.562 | 0.562 | 1 | CT-G08 |
| 1.625 | 0.451 | 0.437 | 2 | CT-G57 |
CT-K Series - 90˚ Bent Cam Parallel, Perpendicular and 45˚ Angle
(Note type listed below)
|
B - Length
0.437 |
F - Offset
0.594 |
Type
1 |
Part #
CT-K13 |
|---|---|---|---|
| 0.470 | 0.250 | 1 | CT-K12 |
| 0.700 | 0.420 | 1 | CT-K02 |
| 0.750 | 0.375 | 3 | CT-K15 |
| 0.750 | 0.650 | 1 | CT-K05 |
| 0.875 | 0.250 | 1 | CT-K10 |
| 0.900 | 0.250 | 1 | CT-K14 |
| 0.937 | 0.405 | 1 | CT-K01 |
| 1.279 | 0.276 | 1 | CT-K07 |
| 1.312 | 0.578 | 1 | CT-K08 |
| 1.312 | 0.578 | 3 | CT-K09 |
| 1.312 | 0.578 | 2 | CT-K11 |
| 1.500 | 0.594 | 1 | CT-K00 |
| 1.562 | 0.250 | 2 | CT-K06 |
G-Series and K-Series CAM MOUNTING TYPES
PARALLEL
TYPE 2 PERPENDICULAR TYPE 3 45˚ OFFSET

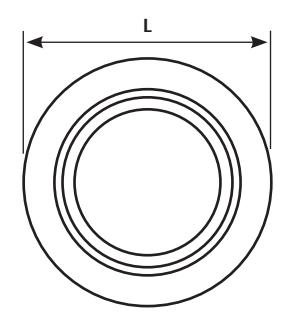

Hardened Security Collars
H = Head Diameter
I = Head Thickness
J = Offset
K = Collar Thickness
L = Collar Diameter
| (H) | (I) | (J) | (K) | (L) | Part # |
|---|---|---|---|---|---|
| 0.885 | 0.142 | 0.170 | 0.312 | 1.210 | CP-070131 |
| 0.885 | 0.188 | 0.250 | 0.438 | 1.356 | CP-070161 |
| 0.885 | 0.200 | 0.238 | 0.438 | 1.290 | CP-070171 |
| 0.885 | 0.260 | 0.070 | 0.330 | 1.210 | CP-070441 |
| 0.885 | 0.262 | 0.050 | 0.312 | 1.210 | CP-070201 |
| 0.885 | 0.278 | 0.160 | 0.438 | 1.290 | CP-070111 |
| 0.885 | 0.325 | 0.050 | 0.375 | 1.275 | CP-070141 |
| 1.000 | 0.142 | 0.170 | 0.312 | 1.290 | CP-070501 |
| 1.000 | 0.450 | 0.050 | 0.500 | 1.240 | CP-070181 |
| 1.012 | 0.638 | 0.050 | 0.688 | 1.313 | CP-070481 |
Spacer RIngs
M = Spacer Thickness
N = Head Diameter
| (N) | (M) | Part # | (N) | (M) | Part # |
|---|---|---|---|---|---|
| 0.875 | 0.031 | CP-160541 | 0.875 | 0.313 | CP-160571 |
| 0.875 | 0.063 | CP-160551 | 0.875 | 0.375 | CP-160301 |
| 0.875 | 0.125 | CP-160051 | 0.875 | 0.400 | CP-160121 |
| 0.875 | 0.140 | CP-160101 | 0.875 | 0.438 | CP-160271 |
| 0.875 | 0.188 | CP-160071 | 0.875 | 0.530 | CP-160061 |
| 0.875 | 0.200 | CP-160111 | 0.995 | 0.063 | CP-160591 |
| 0.875 | 0.250 | CP-160081 | 0.995 | 0.125 | CP-160601 |
| 0.875 | 0.275 | CP-160091 | 0.995 | 0.250 | CP-160611 |

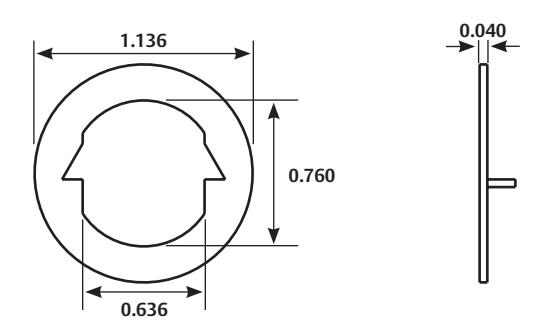

Double D Spur Washer
Used to provide double "D" mounting for cam lock applications on wood surfaces. Requires a 3/4 inch predrilled mounting hole.
5/8 Inch Cam Lock Extension
Adds 5/8 inch length to standard cam locks. Screw on attachment with set screw fastening.
Part # 96-0335

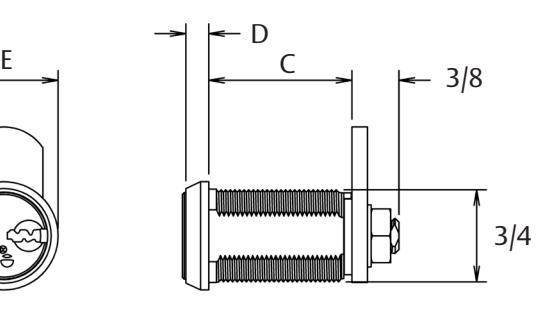

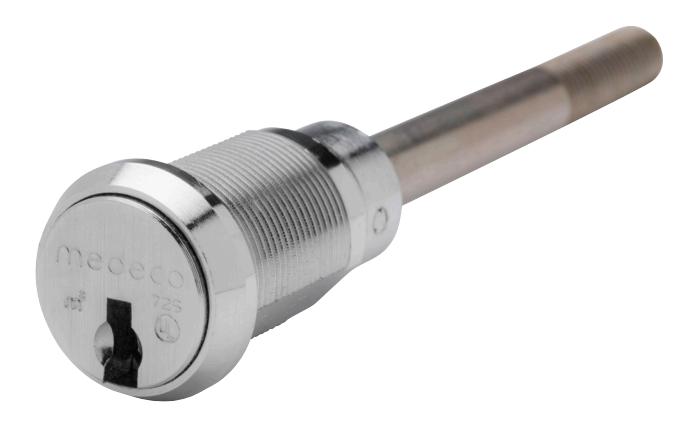

Extension Lock
Features:
• Medeco threaded extension locks utilize a modified Medeco cam lock with a special design to operate with a threaded extension for extreme applications.
Mechanical Specifications:
- UL437 Listed
- Machined brass plug and outer shell
- Keyed alike or keyed different
- Master keyed with other cam lock style products
- Key retaining or two key pull
- Standard finish: brushed chrome
- Fits standard 3/4" standard cam lock hole prep
Keyways:
- Medeco Original
- Biaxial
- Medeco3
|

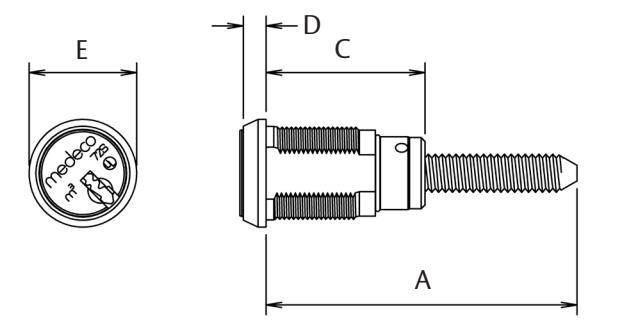

Part
Number |
Overall
Length (A) |
Body
Length (C) |
Head
Thickness (D) |
Head
Diameter (E) |
Number of
Pins |
|---|---|---|---|---|---|
| 63-0650 | See Table | 1.027 | 0.265 | 0.865 | 4 |
| 1 | 1/4 | 7/8 | |||
| 63-0750 | See Table | 1.278 | 0.183 | 0.865 | 5 |
| 1-1/4 | 3/16 | 7/8 | |||
| 63-0850 | See Table | 1.088 | 0.373 | 0.865 | 5 |
| 1-1/16 | 3/8 | 7/8 |
Threaded Extensions
| Overall Length (A) | Lock Part Number | ||||
|---|---|---|---|---|---|
| 63 0650 | 63 0750 | 63 0850 | |||
| Extension | |||||
| M19 | 1.500 | 1.751 | 1.561 | ||
| 1-1/2 | 1-3/4 | 1-9/16 | |||
| M35 | 1.562 | 1.813 | 1.623 | ||
| 1-9/16 | 1-13/16 | 1-5/8 | |||
| M12 | 1.802 | 2.053 | 1.863 | ||
| 1-13/16 | 2-1/16 | 1-7/8 | |||
| M14 | 1.989 | 2.240 | 2.050 | ||
| 2 | 2-1/4 | 2-1/16 | |||
| M27 | 2.249 | 2.500 | 2.310 | ||
| M18 |
2-1/4
2.747 |
2-1/2
2.998 |
2-5/16
2.808 |
||
| 2-3/4 | 3 | 2-13/16 | |||
| M04 | 2.989 | 3.240 | 3.050 | ||
| 3 | 3-1/4 | 3-1/16 | |||
| M29 | 3.124 | 3.375 | 3.185 | ||
| 3-1/8 | 3-3/8 | 3-3/16 | |||
| M21 | 3.499 | 3.750 | 3.560 | ||
| 3-1/2 | 3-3/4 | 3-9/16 | |||
| M23 | 3.615 | 3.866 | 3.676 | ||
| 3-5/8 | 3-7/8 | 3-11/16 | |||
| M49 | 3.875 | 4.126 | 3.936 | ||
| 3-7/8 | 4-1/8 | 3-15/16 | |||
| M20 | 4.124 | 4.375 | 4.185 | ||
| 4-1/8 | 4-3/8 | 4-3/16 | |||
| M15 | 4.489 | 4.740 | 4.550 | ||
| M24 |
4-1/2
4.749 |
4-3/4
5.000 |
4-9/16
4.810 |
||
| 4-3/4 | 5 | 4-13/16 | |||
| M32 | 5.25 | 5.501 | 5.311 | ||
| 5-1/4 | 5-1/2 | 5-5/16 | |||
| M09 | 5.739 | 5.990 | 5.800 | ||
| 5-3/4 | 6 | 5-13/16 | |||
| M30 | 6.249 | 6.500 | 6.310 | ||
| 6-1/4 | 6-1/2 | 6-5/16 | |||
| M36 | 7.000 | 7.251 | 7.061 | ||
| 7 | 7-1/4 | 7-1/16 | |||
| M05 | 7.427 | 7.678 | 7.488 | ||
| 7-7/16 | 7-11/16 | 7 1/2 | |||
| M06 | 7.989 | 8.240 | 8.050 | ||
| M02 |
8
8.489 |
8-1/4
8.740 |
8-1/16
8.550 |
||
| 8-1/2 | 8-3/4 | 8-9/16 | |||
| M42 | 8.989 | 9.240 | 9.050 | ||
| 9 | 9-1/4 | 9-1/16 | |||
| Notes: | |
|---|---|
| Notes: | |
|---|---|
MEDECO U.S.: Medeco Engineered Security Solutions
3625 Alleghany Drive | P.O. Box 3075 | Salem, Virginia 24153-0330
Customer Service: 1-877-633-3261
MEDECO CANADA: 160 Four Valley Drive | Vaughan, ON L4K 4T9 CANADA
Customer Service: 1-888-633-3264
www.medeco.com/camlocks
ASSA ABLOY, the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety, and convenience.
facebook.com/medecolocks
twitter.com/medecolocks
youtube.com/medecolocks
© 2014 Medeco Security Locks LT-102004 REV A
