Mechanical Locks Brochure

| | echanical

Combination lock

Changeable key lock

Mechanical

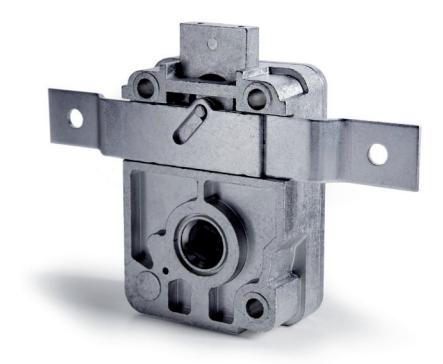

Mechanical combination lock

• Manipulation resistant 3-wheel combination lock
• Square spindle
• The lock can be mounted in all four directions (RH, LH, VU, VD) without removing the back cover: the result is an easier and faster installation
• Unlike the threaded spindles that must be deburred after cutting, when the square shaft is cut to length, the cut-off points create a chamfered area: the chamfered area creates a positive location into the star washer then through the cam
• Smaller "forbidden zone" for the third number of the combination (0-10 in spite of 0-20)

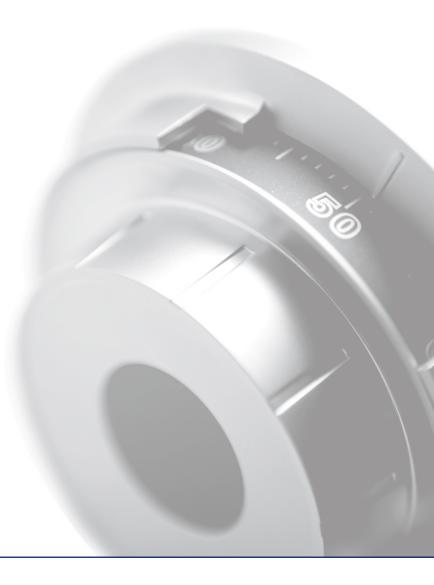

• Wide range of dials available
• Optional auxiliary bolts for three-way locking
• Also available with standard threaded spindle
• Standard foot prints
• Certifications: VdS and UL

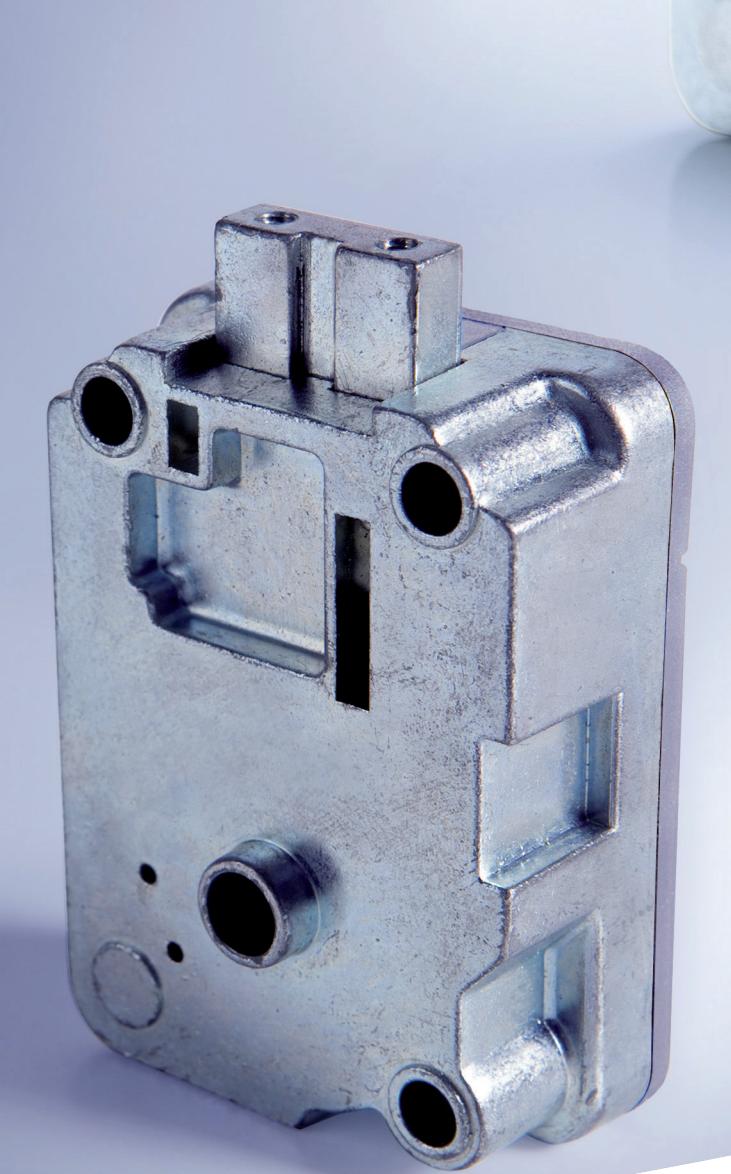

Mechanical changeable key lock

Manipulation resistant 4-wheel changeable key lock

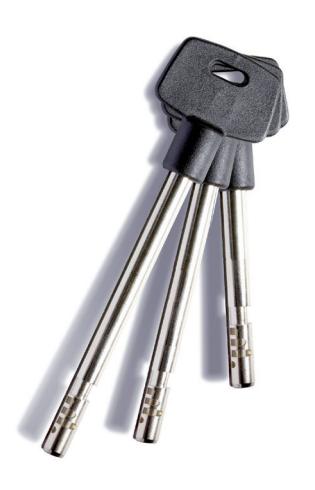

Three different key lengths: 90mm, 125mm e 150mm

Standard foot prints

Certifications: VdS and UL
