View PDFArchitectural Door Accessories

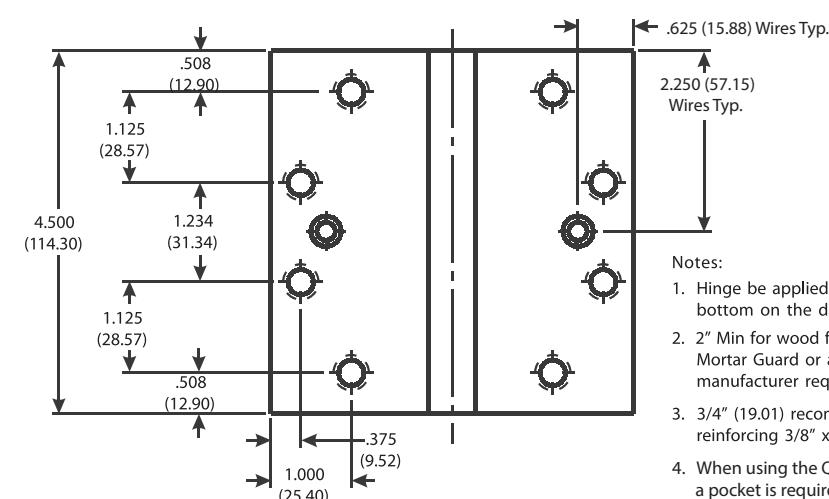

McKinney 41/2 x 4, 41/2 x 41/2 Template Full Mortise, CC and QC* Hinge (4, 8 and 12 Wires)
DO NOT SCALE DIMENSIONS: INCHES (MM)
Wires Typ.

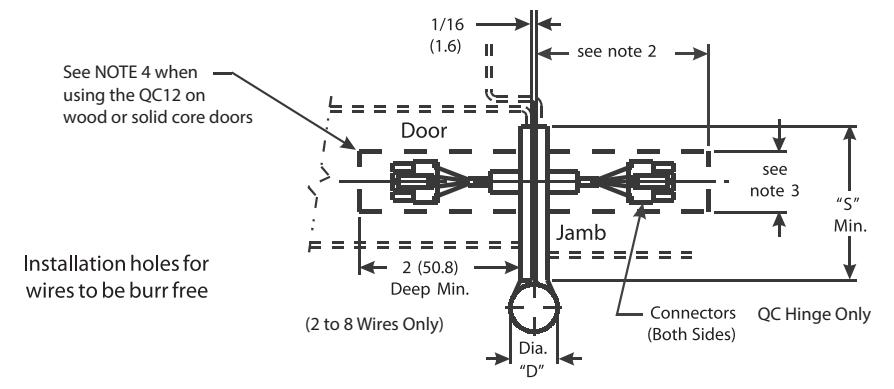

- 4. When using the QC12 on a wood or solid core door a pocket is required for wires and connectors consult factory for details.
| MPB79xCC or QC |
.612
(15.53) |
|||
| MPB68xCC or QC |
.750
(19.03) |
1-27/32
(46.8) |
||
Template MP 278-15
Effective date: November 11, 2015
Supercedes: All Previous
McKINNEY MacPro Template Hinges of the Catalog Numbers are made to conform to ANSI/ BHMA 156.7 for Screw Hole Location and Gauge of Metal. Wire location and hole size conforms to this drawing.
Machine Screw Size: 1/2 x 12-24 F.H.
Wood Screw Size: 11/4 x 12 F.H.
*Connector System utilizes wire colors & locations compatible with doors & hardware from other ASSA ABLOY Group Companies.
**Check Catalog for Metals.
