MacPro® Electric Hinges

MacPro® Electric Hinges

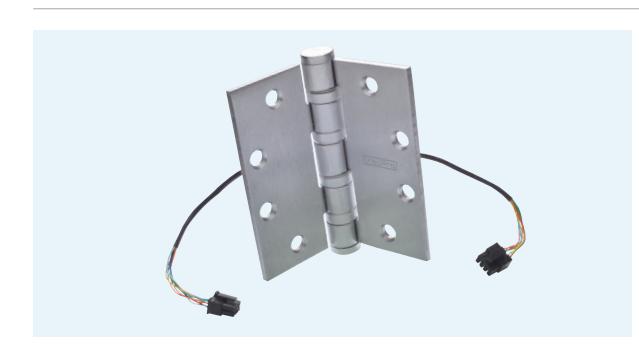

MacPro® Electric Hinges connect the power source to electrified locking hardware and exit devices. They are ideal for new construction as well as retrofit and aftermarket applications. MacPro Electric Hinges easily retrofit existing electric hinges with center exit wires.

MacPro® Electric Hinges are easy to install with ElectroLynx® Quick Connect (QC) or Concealed Circuit (CC) connection options. Once installed, the wires are concealed to increase security and prevent tampering.

Portal holes feature brass eyelets to prevent chafing, giving the hinge an extended service life. UL Listed.

Features	Benefits
Center exit wires	Ideal for replacing worn hinges in retrofit applications
No external wires	Eliminates disruption of power due to tampering
Brass eyelets on portal holes	Protects wires from chafing
Common wire colors	Coordinates with other ASSA ABLOY Solutions
UL Listed, ANSI/BHMA A156.1 Standard	Meets or exceeds industry standards
Standard or heavyweight	Available for a range of door weights

Applications:

• Office Buildings
• Light Commercial
• Hospitality

Specifications

Catalog Number	Size	Hinge Type	Base Material	Gauge	Weight	Finish	Connector Options
MPB79	4 1⁄2 x 4	Bearing	Steel	.134	STD	26D	CC4, CC8
MPB79	4 1⁄2 x 4	Bearing	Steel	.134	STD	26D	QC4, QC8, QC12
MPB79	4 1⁄2 x 4 1⁄2	Bearing	Steel	.134	STD	26D	CC4, CC8
MPB79	4 1⁄2 x 4 1⁄2	Bearing	Steel	.134	STD	26D	QC4, QC8, QC12
MPB68	4 1⁄2 x 4 1⁄2	Bearing	Steel	.180	HVY	26D	CC4, CC8
MPB68	4 1⁄2 x 4 1⁄2	Bearing	Steel	.180	HVY	26D	QC4, QC8, QC12
