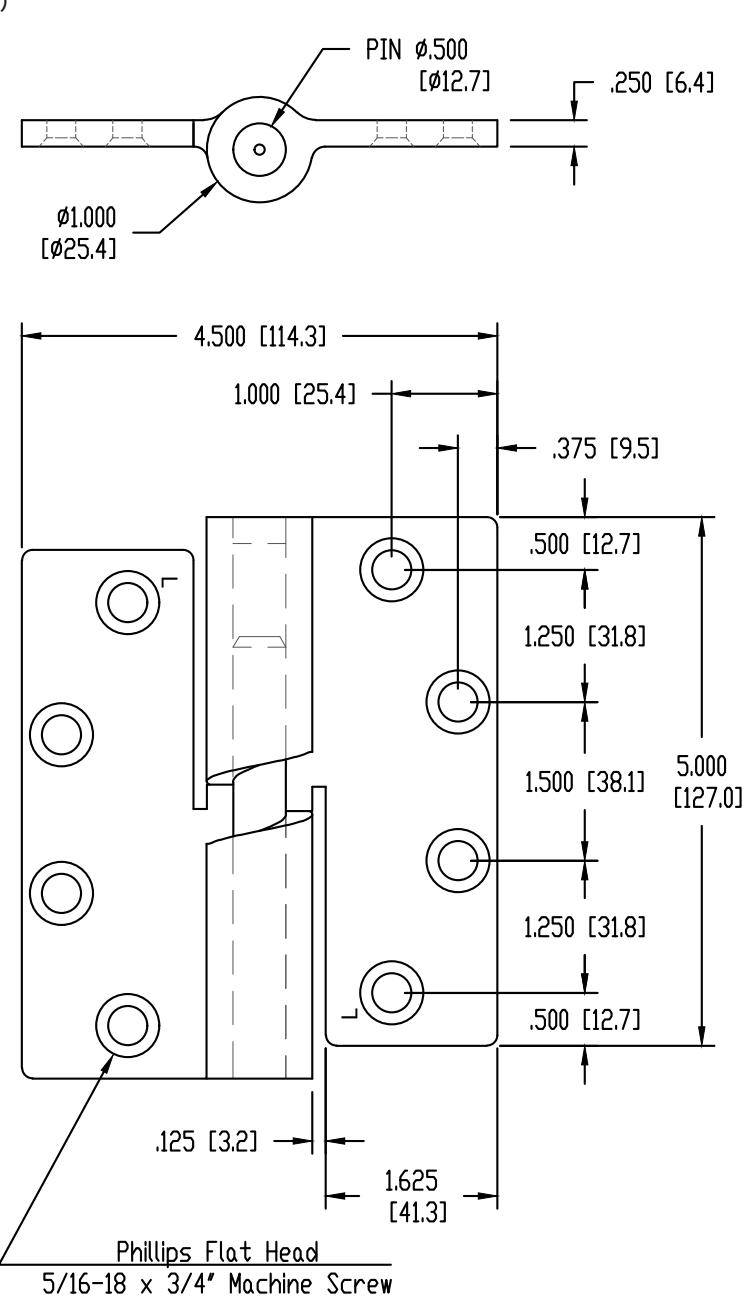

MKCL2500LH 5" x 4-1/2" Cam Lift Hinge

DO NOT SCALE LEFT HAND SHOWN DIMENSIONS: INCHES (MM)

Effective date: March 2019

Supersedes: All Previous

McKINNEY MKCL2500 Cam Lift Hinge is made to conform to this drawing.

McKINNEY MKCL2500 Cam Lift Hinge is handed.

Machine Screw Size: 5/16-18 x 3/4"

Lift: 5/16"
