View PDFArchitectural Door Accessories

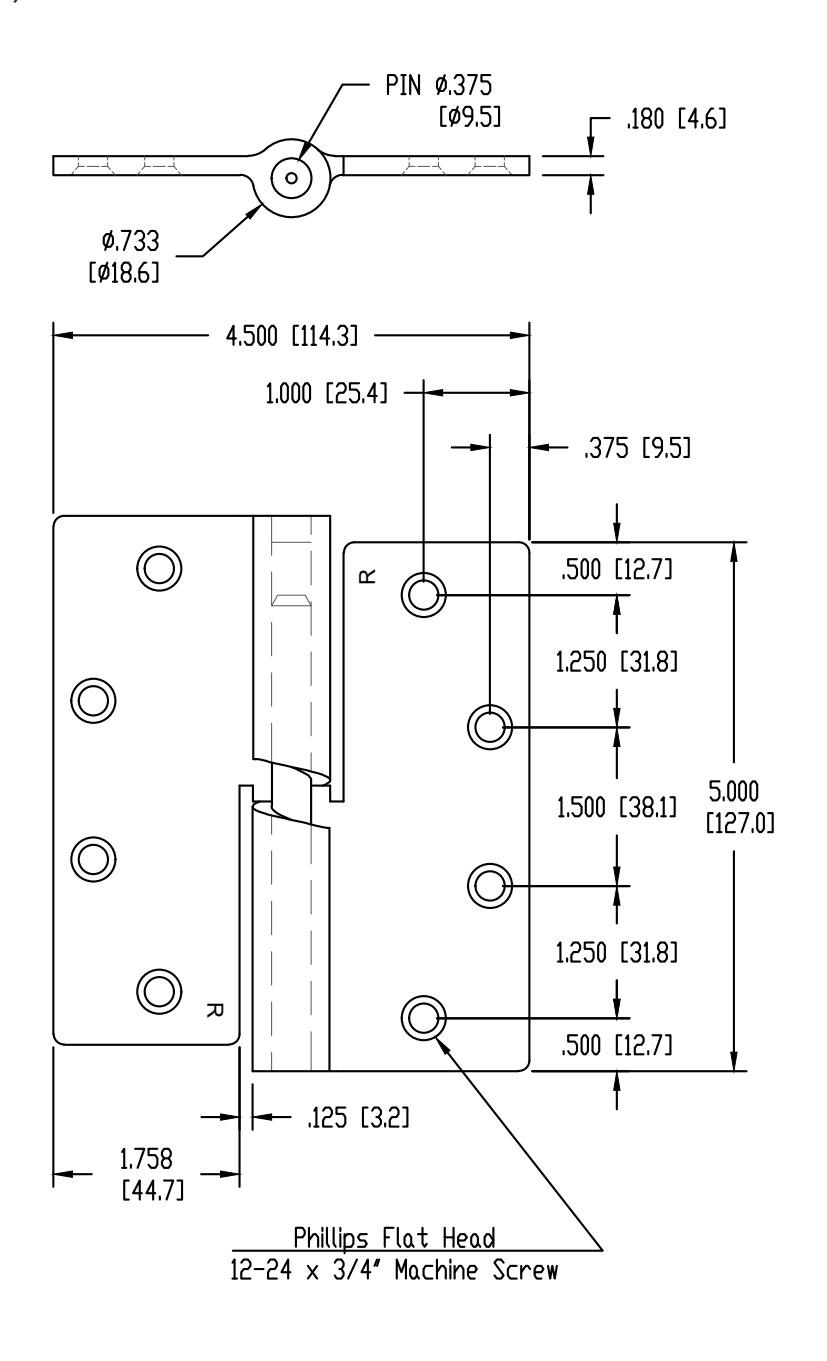

MKCL180RH 5" x 4-1/2" Cam Lift Hinge
DO NOT SCALE RIGHT HAND SHOWN DIMENSIONS: INCHES (MM)
Template 720-19
Effective date: March 2019
Supersedes: All Previous
McKINNEY MKCL180 Cam Lift Hinge is made to conform to this drawing.
McKINNEY MKCL180 Cam Lift Hinge is handed.
Machine Screw Size: 12-24 x 3/4"
Lift: 1/4"
