Architectural Door Accessories

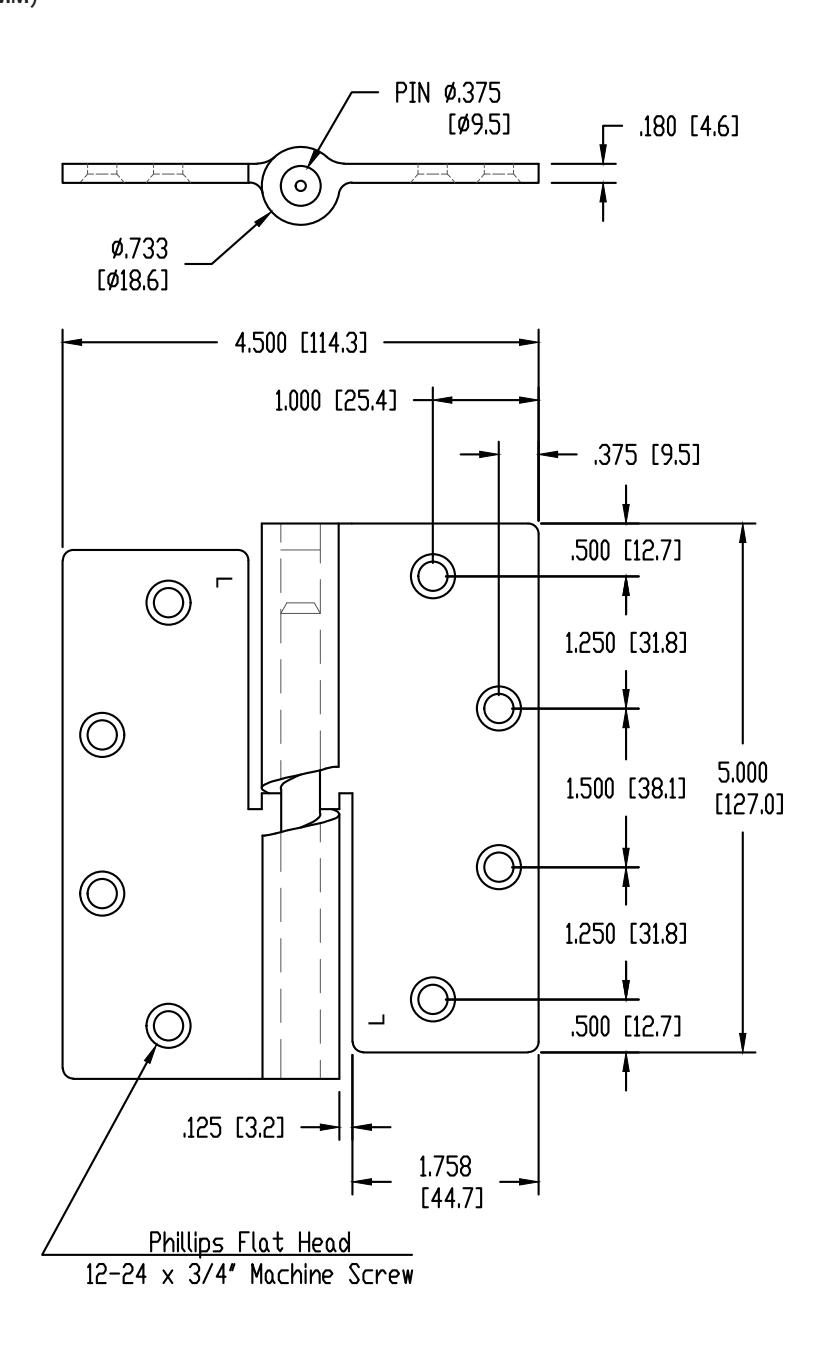

MKCL180LH 5" x 4-1/2" Cam Lift Hinge

DO NOT SCALE LEFT HAND SHOWN DIMENSIONS: INCHES (MM)

Effective date: March 2019

Supersedes: All Previous

McKINNEY MKCL180 Cam Lift Hinge is made to conform to this drawing.

McKINNEY MKCL180 Cam Lift Hinge is handed.

Machine Screw Size: 12-24 x 3/4"

Lift: 1/4"
