MCK-WTHD 120" Wide Throw Full Mortise HD

Template 120WTHD-18

Effective date: June 2018

Supersedes: All Previous

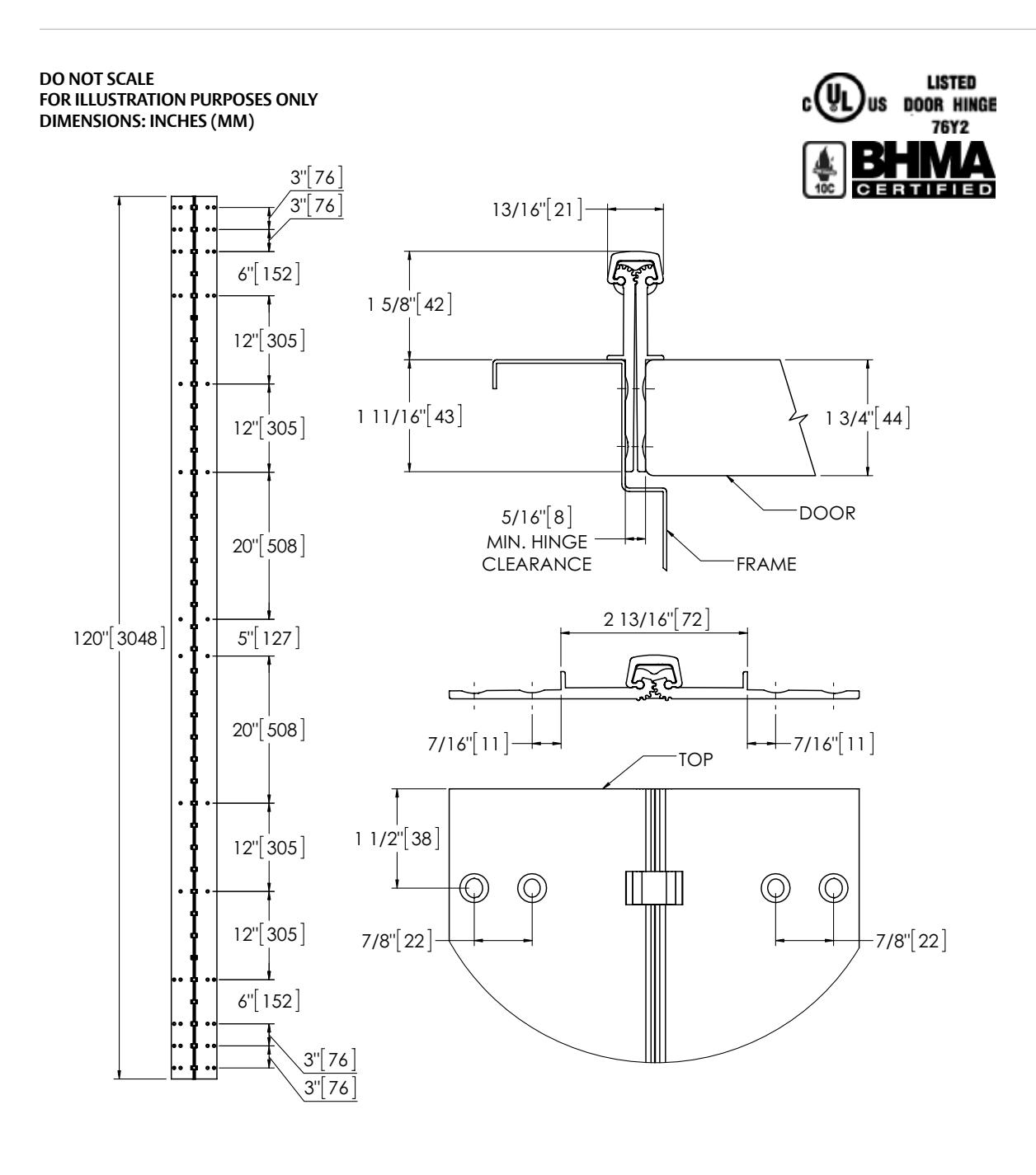

Template Full Mortise Continuous Geared Aluminum Hinges 83 MCK WTHD are made to conform to this drawing.

Machine Screw Size: Nº 12-24 x 7/16 FHUC Thread-forming

Continuous Geared Aluminum Hinges are Listed for fire applications up to 90 minutes without special preparation; for 3 hour openings using hollow metal doors and hollow metal frames on Masonry/Drywall, Fire Pins (supplied separately) must be used.

Recommended For Fasteners IS NOT **CAUTION** Due to Frame Installation Variations, Pre-drilling
