MCK-58HD 120" Full Surface Center Pivot HD

Template 659-18

Effective date: June 2018

Supersedes: All Previous

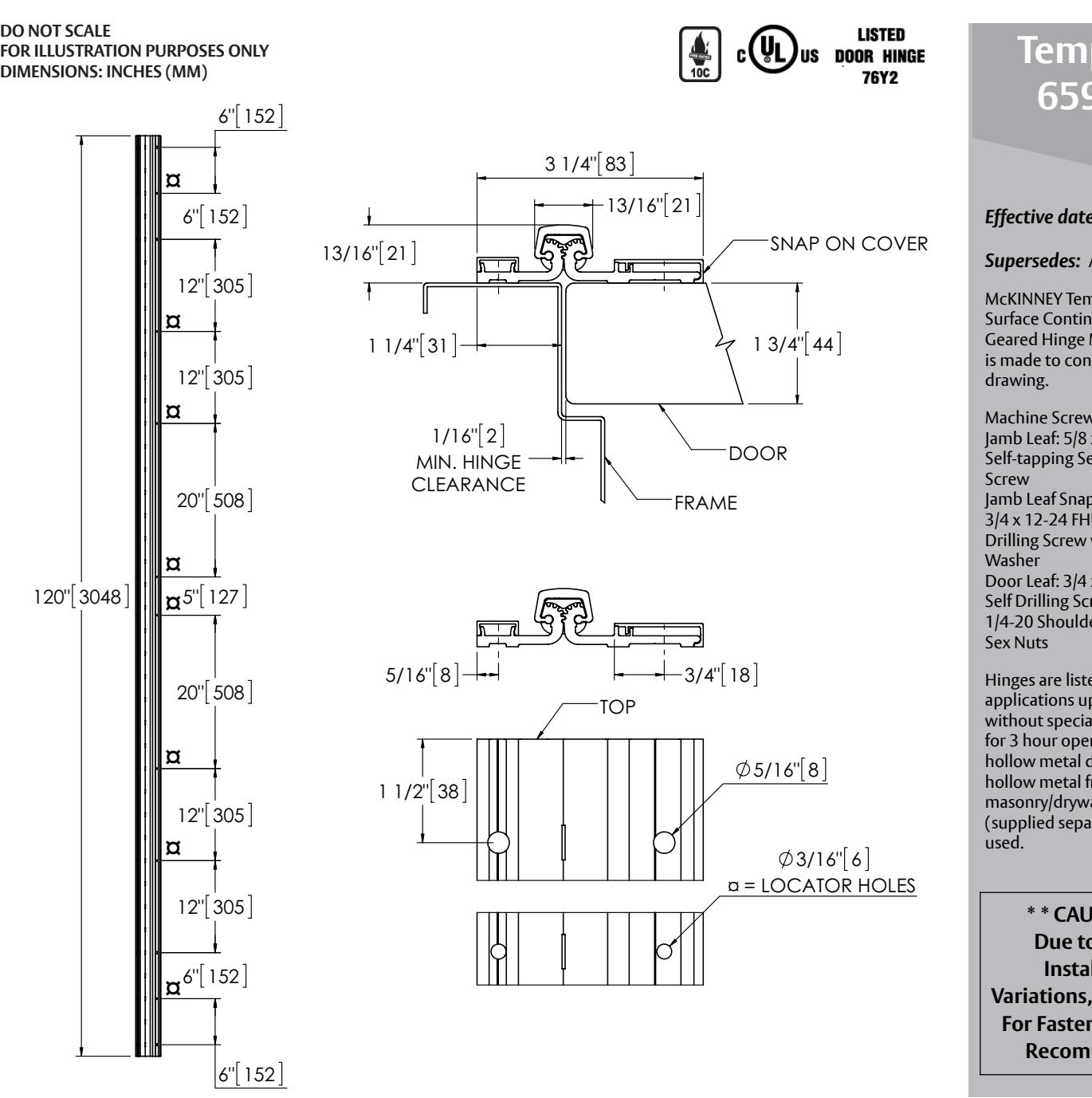

McKINNEY Template Full Surface Continuous Aluminum Geared Hinge MCK-58HD is made to conform to this

Machine Screw Size: Jamb Leaf: 5/8 x 1/4-20 Self-tapping Security Torx Jamb Leaf Snap Cover: 3/4 x 12-24 FHUC, Self Drilling Screw w/Special Door Leaf: 3/4 x 12 Pan Hd, Self Drilling Screw; 1/4-20 Shoulder Screws w/

Hinges are listed for fire applications up to 90 minutes without special preparation; for 3 hour openings using hollow metal doors and hollow metal frames on masonry/drywall, fire pins (supplied separately) must be

Recommended For Fasteners IS NOT **CAUTION** Due to Frame Installation Variations, Pre-drilling
