MCK-14HD 85" Full Mortise Short Leaf Inset HD

Template 647-18

Effective date: June 2018

Supersedes: All Previous

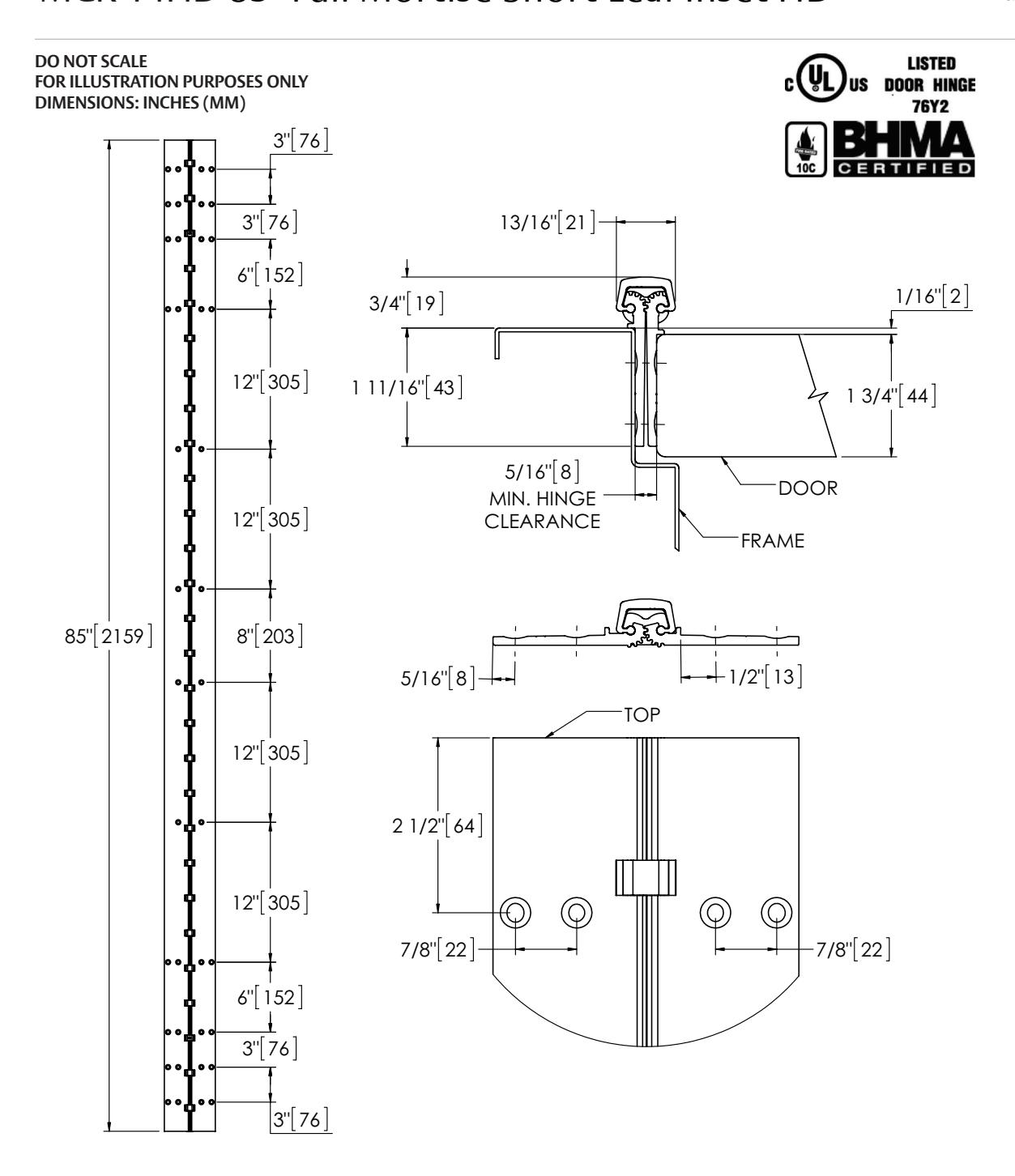

McKINNEY Template Edge Mounted Continuous Aluminum Geared Hinge MCK-14HD is made to conform to this drawing.

McKINNEY MCK-14 hinge can be supplied with Electric Functions - See Electrified Hinge section.

Machine Screw Size: Custom #12-24 x 11/16" FHUC, self drilling

Hinges are listed for fire applications up to 90 minutes without special preparation; for 3 hour openings using hollow metal doors and hollow metal frames on masonry/drywall, fire pins (supplied separately) must be used.

Recommended For Fasteners IS NOT **CAUTION** Due to Frame Installation Variations, Pre-drilling
