McKinney J3001 Template Double Acting Horizontal Spring Pivot Hinge - Jamb Mounted
DO NOT SCALE DIMENSIONS: INCHES (MM)
Template 385-16
Effective date: March 31, 2016
Supercedes: All Previous

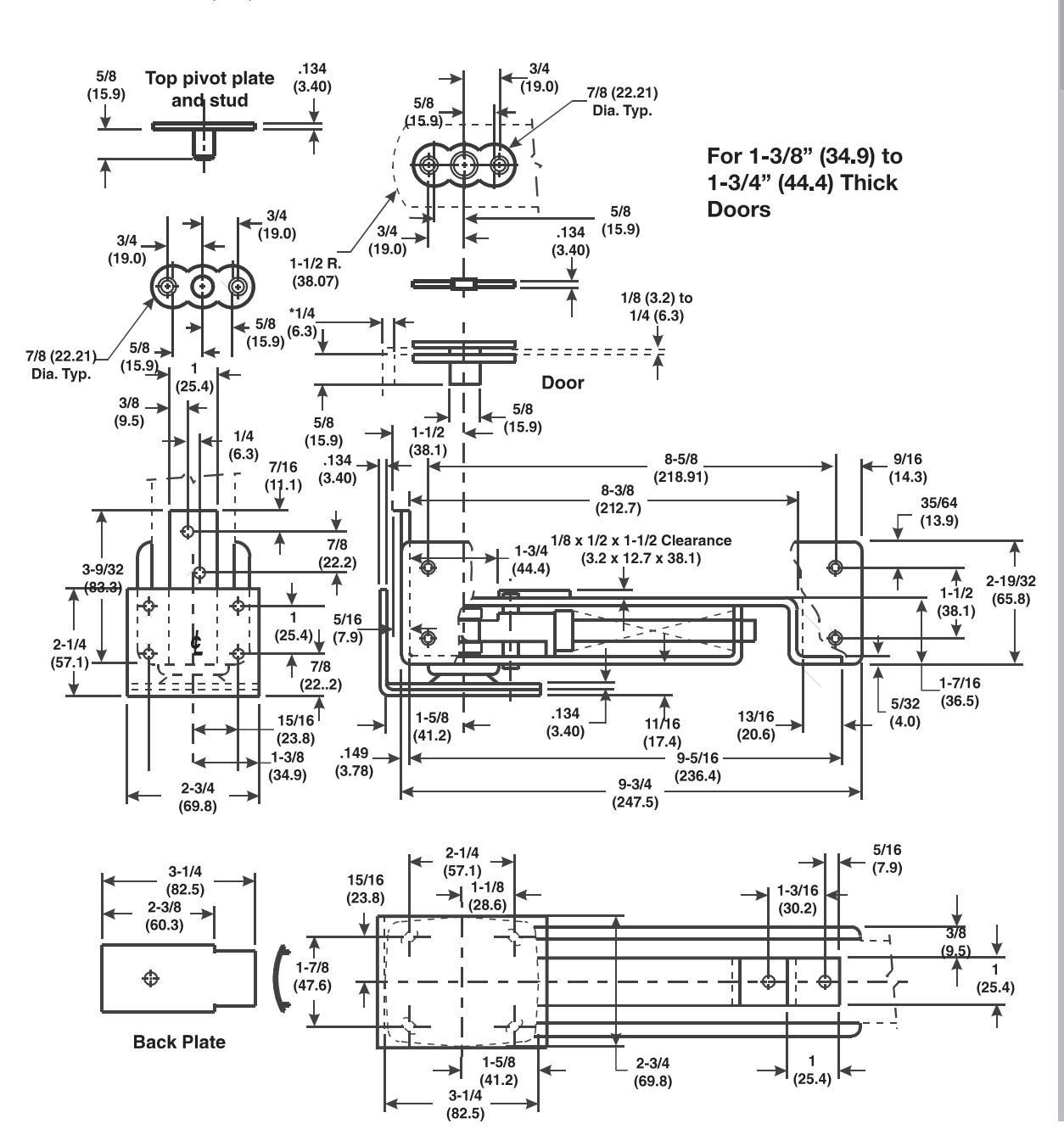

McKINNEY Template Double Acting Spring Pivot Hinge is made to conform to this drawing.
Machine Screw Size: Back Plate: 1/2 x 10-24 F.H. Jamb Plate: 1/4 x 10-24 P.H.
Wood Screw Size: Frame & Floor Plate: 11/4 x 10 P.H. Top Pivot: 1 x 10 F.H. Side Plates: 3/4 x 6 F.H.
* 1/4 (6.3) clearance required if Jamb Bracket is mortised, 3/8 (9.5) if Jamb Bracket is surface applied.
