McKinney Full Mortise Anchor Hinges 5 TA5394 and TA5794 Templates

Architectural Door Accessories

McKinney 5 x 41/2 Full Mortise Anchor Template Hinges For Beveled Edge Doors

Template 097-09

Effective date: September 3, 2009

Supercedes: All Previous

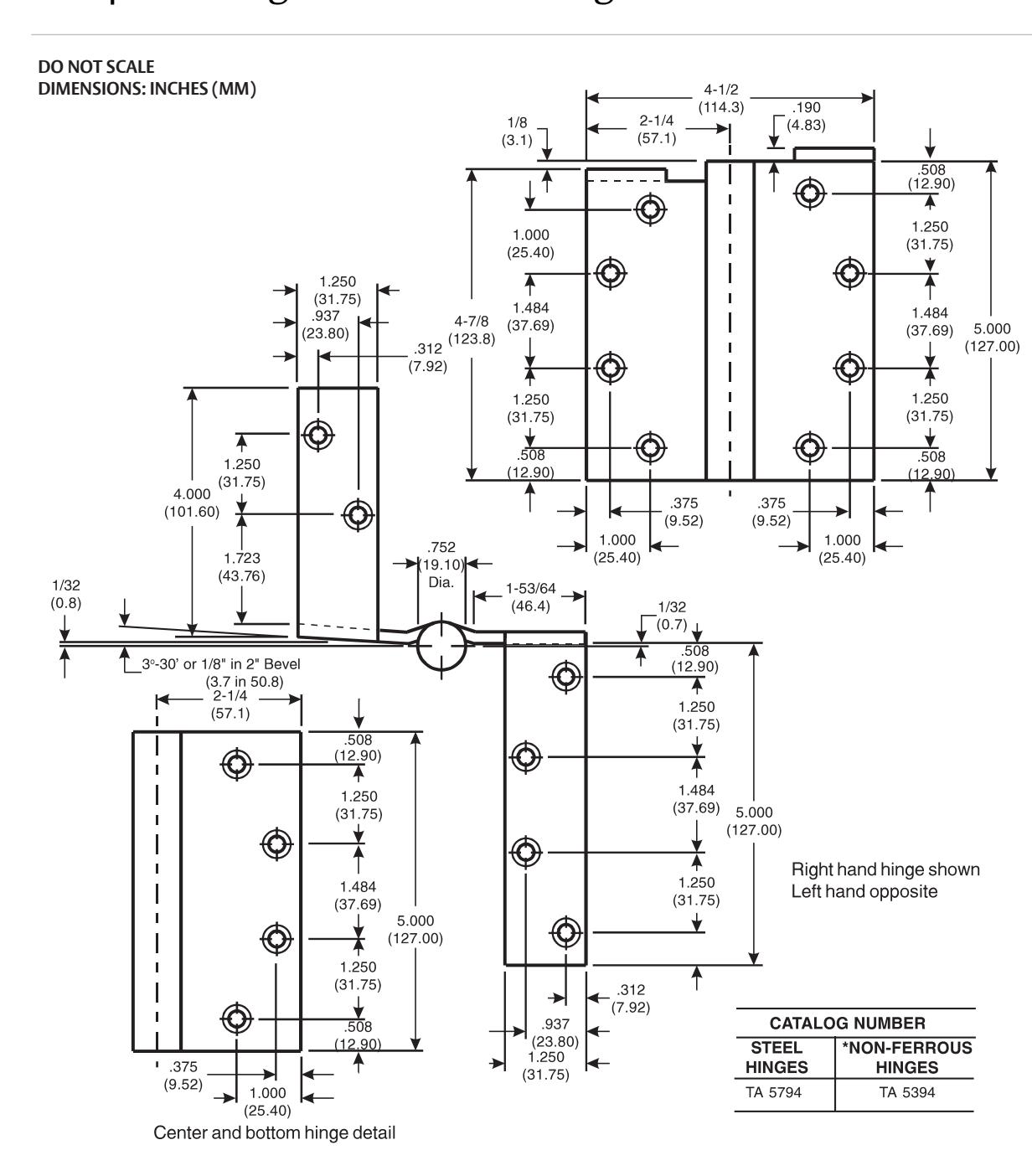

McKINNEY Template Anchor Hinges are made in size, gauge and with screw holes located to conform to this drawing.

Machine Screw Size: 1/2 x 12-24 F.H.

Wood Screw Size: 11/4 x 12 F.H.

Hinges are handed.

*Check Catalog for Metals.
