Architectural Door Accessories

McKinney ElectroLynx® Hinges

Connecting the Power to Door Hardware

The McKinney ElectroLynx® Quick Connect electrified hinge offers the perfect solution for door openings that use electrified hardware. Installer-friendly "plug and play" ElectroLynx® connectors take the guesswork out of wiring and offers an quick method for connecting power from the source through the hinge to the electrified hardware.

Features	Benefits
Quick Connect (QC) ElectroLynx® Molex Connectors	Quick and easy installation; no incorrect wiring
Brass eyelets on portal holes	Protects wires from chafing
No external wires	Eliminates disruption of power due to tampering
UL Listed, ANSI/BHMA A156.1 Standard	Meets industry standards

Applications:

• Healthcare
• K-12 Schools
• Offices
• Airports
• Universities

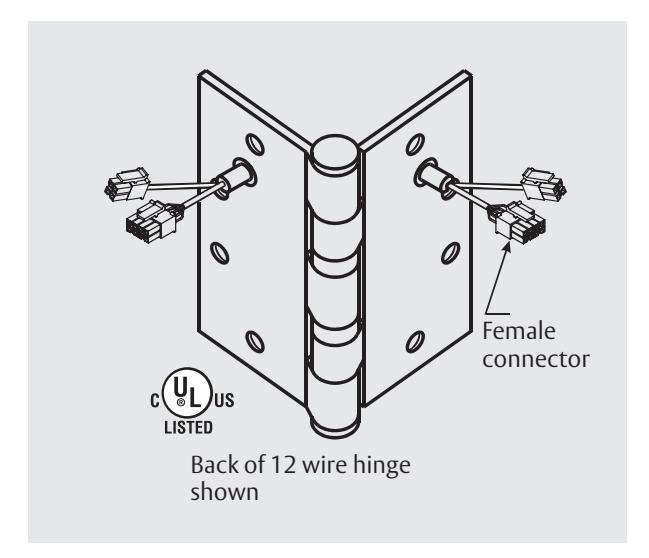

McKinney ElectroLynx® Hinges (QC Option)

Each hinge features plug connectors that eliminate the need for separate or exposed wiring and make installation quick and simple. Brass eyelets add protection and durability.

The QC Option is available on most standard McKinney hinges. TA2714 and T4A3786 (4-1/2" x 4-1/2" 26D) are available on the 3-day QuickShip Program. Consult the McKinney Catalog, web site or Customer Service for more information.

Standard ElectroLynx® Retrofit Cable Sizes

When retrofitting a door with ElectroLynx hinges, the wiring harness must also be ordered. Custom lengths are also available.

Actual Cable Length	2 Conductor and Molex both ends	2 Conductor and Molex one end, pinned one end	Typical Application
3"	QC-C003	QC-C003P	Between hinge and the end of an exit device.
6"	QC-C006	QC-C006P
12"	QC-C012	QC-C012P
26"	QC-C200	QC-C200P	Between hinge and through the door to the lockset or exit device trim.
32"	QC-C206	QC-C206P
38"	QC-C300	QC-C300P
44"	QC-C306	QC-C306P
50"	QC-C400	QC-C400P
15' 2"	QC-C1500	QC-C1500P	From the hinge location, up the jamb to above the ceiling, or up and around full lite or half lite metal door.
25'	—	QC-C2500P
30'	—	QC-C3000P

Doors, frames and hardware manufactured by ASSA ABLOY that utilize the ElectroLynx® QC connectors include CECO, CURRIES, CORBIN RUSSWIN, FLEMING, RIXSON, SARGENT, and YALE COMMERCIAL.

For information call 800-346-7707 or visit us online at www.assaabloydooraccessories.us.
