View PDFArchitectural Door Accessories

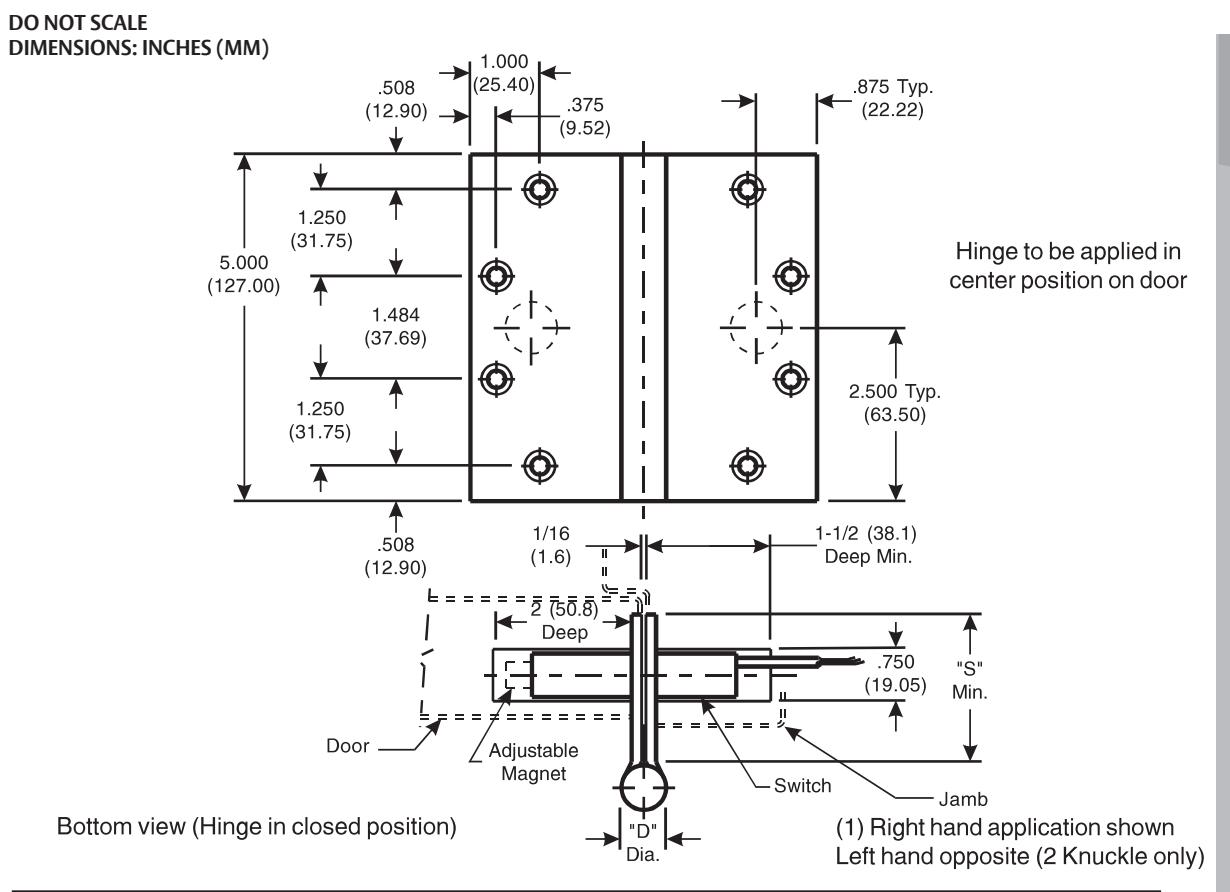

McKinney 5 x 4, 5 x 41/2, 5 x 5 Template Full Mortise Magnetic Monitoring Hinges
| CATALOG NUMBER | 041105 | "S" DISTANCE (SWAGE LINE) | ||||
|---|---|---|---|---|---|---|
|
STEEL
HINGES |
*NON-FERROUS
HINGES |
GAUGE
OF METAL |
"D" OUTSIDE DIAMETER | HINGE WIDTH | ||
|
4
(101.6) |
4½
(114.3) |
5
(127.0) |
||||
| TA 714xMM | TA 314xMM |
.146
(3.71) |
.648
(16.46) |
** |
1-7/8
(47.6) |
2-1/8
(53.9) |
| TA 786xMM | TA 386×MM |
.190
(4.83) |
.752
(19.10) |
** |
1-53/64
(46.4) |
2-5/64
(52.8) |
| TA/TB 2714xMM | TA/TB 2314xMM |
.146
(3.71) |
.648
(16.46) |
** |
1-7/8
(47.6) |
2-1/8
(53.9) |
| (1) TA 2731xMM | (1) TA 3331xMM |
.146
(3.71) |
.525
(13.33) |
1-21/32
(42.1) |
1-29/32
(48.4) |
2-5/32
(54.8) |
| (1) TA 3750xMM | (1) TA 3350xMM |
.190
(4.83) |
.701
(17.80) |
** |
1-13/16
(46.0) |
2-1/16
(52.4) |
| T4A/T4B 3786xMM | T4A/T4B 3386xMM |
.190
(4.83) |
.752
(19.10) |
** |
1-53/64
(46.4) |
2-5/64
(52.8) |
Template 240-15
Effective date: September 8, 2015
Supercedes: All Previous
McKINNEY Template Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7 for Screw Hole Location and Gauge of Metal. Switch size and location conforms to this drawing.
Machine Screw Size: 1/2 x 12-24 F.H.
Wood Screw Size: 11/4 x 12 F.H.
- (1) Hinges are handed.
- *Check Catalog for Metals.
- **Dimensions will be supplied upon request.
