McKinney Electrified 4.5 MM Hinges Templates
Open the original PDF document
View PDFArchitectural Door Accessories
McKinney 41/2 x 4, 41/2 x 41/2 Template Full Mortise Magnetic Monitoring Hinges
| CATALOG NUMBER | 0.41105 | "S" DISTANCE (SWAGE LINE) | |||
|---|---|---|---|---|---|
|
STEEL
HINGES |
*NON-FERROUS
HINGES |
GAUGE
OF METAL |
"D"
OUTSIDE DIAMETER |
HINGE WIDTH | |
|
4
(101.6) |
4½
(114.3) |
||||
| TA 714xMM | TA 314xMM |
.134
(3.40) |
.585
(14.86) |
1-21/32
(42.1) |
1-29/32
(48.4) |
| TA 786xMM | TA 386xMM |
.180
(4.57) |
.720
(18.29) |
** |
1-13/16
(46.0) |
| TA/TB 2714xMM | TA/TB 2314xMM |
.134
(3.40) |
.603
(15.32) |
1-21/32
(42.1) |
1-29/32
(48.4) |
| (1) TA 2731xMM | (1) TA 3331xMM |
.134
(3.140) |
.525
(13.33) |
1-11/16
(42.9) |
1-15/16
(49.2) |
| (1) TA 3750xMM | (1) TA 3350xMM |
.180
(4.57) |
.701
(17.80) |
** |
1-13/16
(46.0) |
| T4A/T4B 3786xMM | T4A/T4B 3386xMM |
.180
(4.57) |
.752
(19.10) |
** |
1-13/16
(46.0) |
Template 235-15
Effective date: September 8, 2015
Supercedes: All Previous

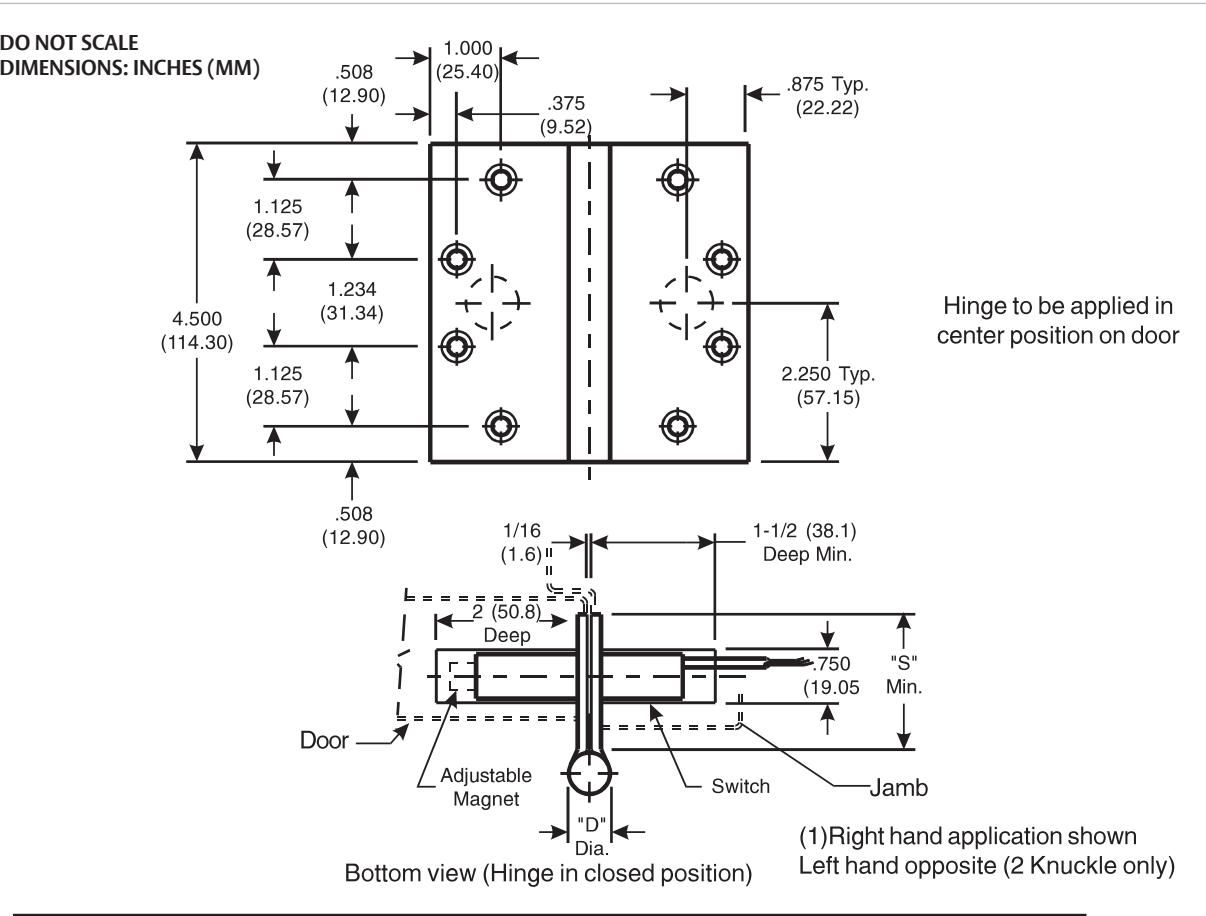

McKINNEY Template Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7 for Screw Hole Location and Gauge of Metal. Switch size and location conforms to this drawing.
Machine Screw Size: 1/2 x 12-24 F.H.
Wood Screw Size: 11/4 x 12 F.H.
- (1) Hinges are handed.
- *Check Catalog for Metals.
- **Dimensions will be supplied upon request.
