Architectural Door Accessories

ASSA ABLOY

McKinney EL Prep Locations, Steel & Stainless Steel Hinges

The global leader in door opening solutions

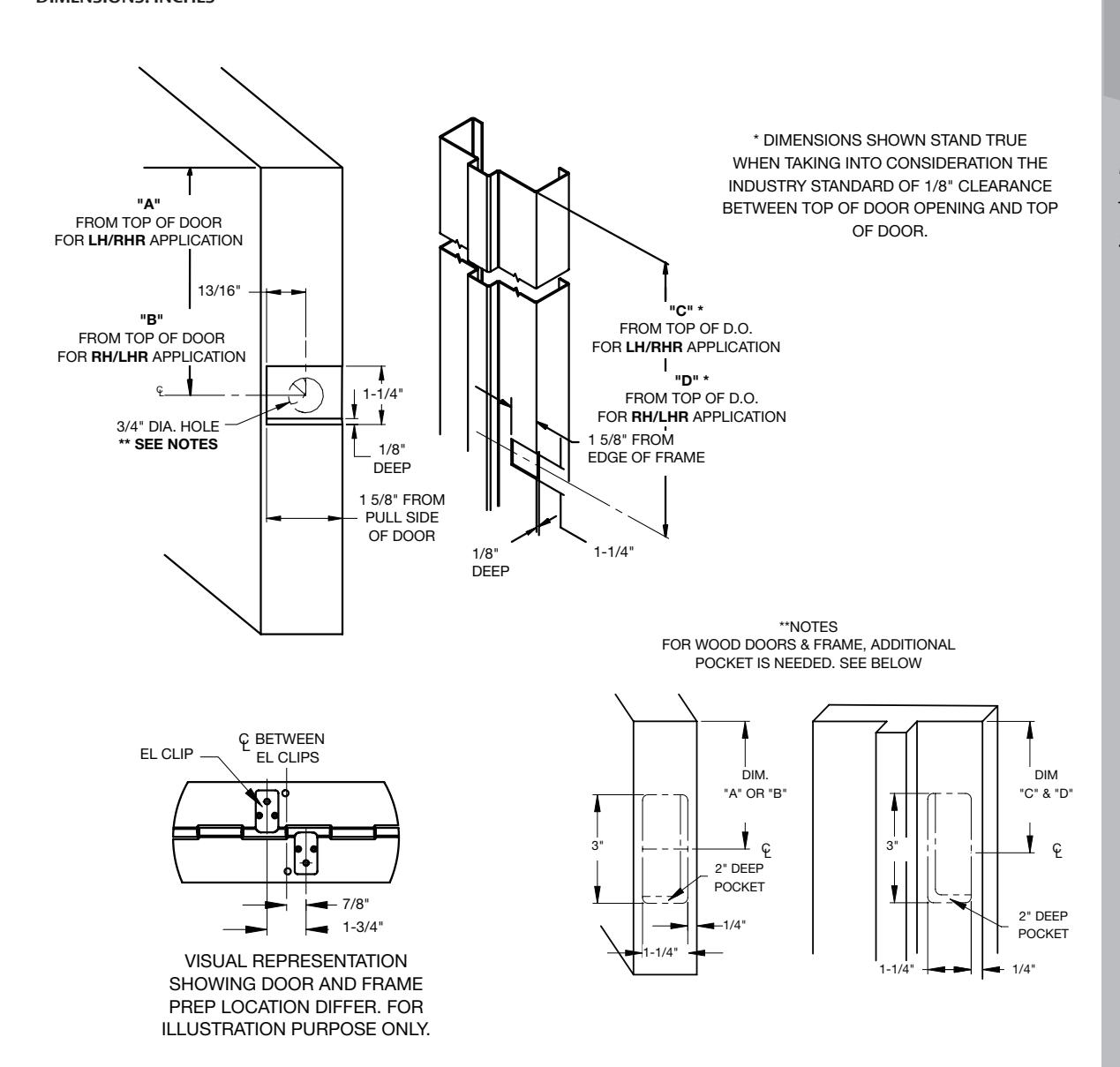

Frame & Door Prep Left Hand Application shown DO NOT SCALE DIMENSIONS: INCHES

Template M80-0180-0002TM-14

Effective date: July 20, 2014

Supercedes: All Previous

Page 1 of 2

***DIMENSION SHOWN BELOW IS NEEDED***
AT THE TIME OF ORDERING 		LH / RHR APPLICATION RH / LHR APPLICATION
HINGE LENGTHS UP TO 83 1/8" HINGE LENGTHS UP TO 83 1/8"
LOCATION TOP TO CENTER
BETWEEN EL CLIPS 		TOP TO CENTER
DOOR PREP "A" 		TOP TO CENTER
FRAME PREP "C" 		TOP TO CENTER
DOOR PREP "B" 		TOP TO CENTER
FRAME PREP "D"
ABOVE HINGE CENTER 21 25/32 20 29/32 22 25/32 22 21/32 21 1/32
25 23/32 24 27/32 26 23/32 26 19/32 24 31/32
29 11/16 28 13/16 30 11/16 30 9/16 28 15/16
33 21/32 32 25/32 34 21/32 34 17/32 32 29/32
37 19/32 36 23/32 38 19/32 38 15/32 36 27/32
STANDARD LOCATION 41 9/16 40 11/16 42 9/16 42 7/16 40 13/16
BELOW HNGE CENTER 45 17/32 44 21/32 46 17/32 46 13/32 44 25/32
49 15/32 48 19/32 50 15/32 50 11/32 48 23/32
***DIMENSION SHOWN BELOW IS
NEEDED*** AT THE TIME OF ORDERING 		LH / RHR APPLICATION RH / LHR APPLICATION
HINGE LENGTHS 83 3/16" - 85 1/8" HINGE LENGTHS 83 3/16" - 85 1/8"
LOCATION TOP TO CENTER
BETWEEN EL CLIPS 		TOP TO CENTER
DOOR PREP "A" 		TOP TO CENTER
FRAME PREP "C" 		TOP TO CENTER
DOOR PREP "B" 		TOP TO CENTER
FRAME PREP "D"
ABOVE HINGE CENTER 21 25/32 22 21/32 21 1/32 22 21/32 21 1/32
27 23/32 26 27/32 28 23/32 26 27/32 28 23/32
33 21/32 34 17/32 32 29/32 34 17/32 32 29/32
39 19/32 38 23/32 40 19/32 38 23/32 40 19/32
45 17/32 46 13/32 44 25/32 46 13/32 44 25/32
STANDARD LOCATION 51 15/32 50 19/32 52 15/32 50 19/32 52 15/32
BELOW HNGE CENTER 57 13/32 58 9/32 56 21/32 58 9/32 56 21/32
63 11/32 62 15/32 64 11/32 62 15/32 64 11/32
***DIMENSION SHOWN BELOW IS
NEEDED*** AT THE TIME OF ORDERING 		LH / RHR APPLICATION RH / LHR APPLICATION
HINGE LENGTHS 85 3/16" - 95" HINGE LENGTHS 85 3/16" - 95"
LOCATION TOP TO CENTER
BETWEEN EL CLIPS 		TOP TO CENTER
DOOR PREP "A" 		TOP TO CENTER
FRAME PREP "C" 		TOP TO CENTER
DOOR PREP "B" 		TOP TO CENTER
FRAME PREP "D"
ABOVE HINGE CENTER 27 23/32 28 19/32 26 31/32 26 27/32 28 23/32
31 21/32 32 17/32 30 29/32 30 25/32 32 21/32
35 5/8 36 1/2 34 7/8 34 3/4 36 5/8
39 19/32 40 15/32 38 27/32 38 23/32 40 19/32
43 17/32 44 13/32 42 25/32 42 21/32 44 17/32
STANDARD LOCATION 47 1/2 48 3/8 46 3/4 46 5/8 48 1/2
BELOW HNGE CENTER 51 15/32 52 11/32 50 23/32 50 19/32 52 15/32
55 13/32 56 9/32 54 21/32 54 17/32 56 13/32
59 3/8 60 1/4 58 5/8 58 1/2 60 3/8
63 11/32 64 7/32 62 19/32 62 15/32 64 11/32
***DIMENSION SHOWN BELOW IS
NEEDED*** AT THE TIME OF ORDERING 		LH / RHR APPLICATION RH / LHR APPLICATION
HINGE LENGTHS 95 1/16" - 118 3/4" HINGE LENGTHS 95 1/16" - 118 3/4"
LOCATION TOP TO CENTER
BETWEEN EL CLIPS 		TOP TO CENTER
DOOR PREP "A" 		TOP TO CENTER
FRAME PREP "C" 		TOP TO CENTER
DOOR PREP "B" 		TOP TO CENTER
FRAME PREP "D"
ABOVE HINGE CENTER 39 19/32 40 15/32 38 27/32 38 23/32 40 19/32
43 17/32 44 13/32 42 25/32 42 21/32 44 17/32
47 1/2 48 3/8 46 3/4 46 5/8 48 1/2
51 15/32 52 11/32 50 23/32 50 19/32 52 15/32
55 13/32 56 9/32 54 21/32 54 17/32 56 13/32
STANDARD LOCATION 59 3/8 60 1/4 58 5/8 58 1/2 60 3/8
BELOW HNGE CENTER 63 11/32 64 7/32 62 19/32 62 15/32 64 11/32
67 9/32 68 5/32 66 17/32 66 13/32 68 9/32
71 1/4 72 1/8 70 1/2 70 3/8 72 1/4
75 7/32 76 3/32 74 15/32 74 11/32 76 7/32
79 5/32 80 1/32 78 13/32 78 9/32 80 5/32

Template M80-0180- 0002TM-14

Effective date: July 20, 2014

Supercedes: All Previous

Page 2 of 2
