McKinney DS-6 Edge Hung Application Templates

Architectural Door Accessories

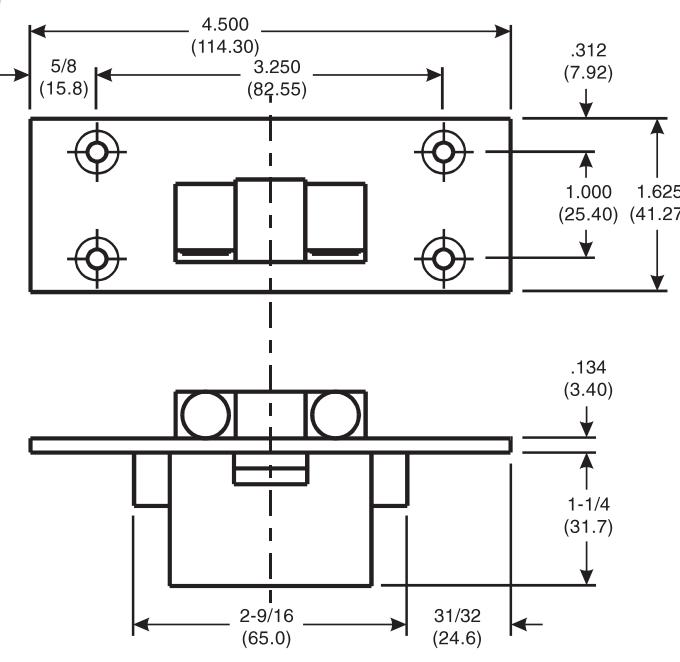

McKinney DS-6, 15/8 x 41/2 Template Emergency Door Stop, Edge Hung Application

DO NOT SCALE DIMENSIONS: INCHES (MM)

rame either side hicker walls
← "B" →	1-9/32 | | | | | | | | | | | | | | | | | | |
(82. 2-7/	1-9/64 (28.9) 4 Min. for 1-3/4 Door 5 for 44.4) 3 Min. for 1-3/8 Door 9 for 34.9)

"Δ"	"B" DOOR THICKNESS
FRAME
SIZE	1-3/8 (34.9)	1-3/4 (44.4)
4-3/4	1-31/32	1-19/32
(120.6)	(50.0)	(40.5)
5-5/8	2-27/32	2-15/32
(142.9)	(72.2)	(62.7)
5-3/4	2-31/32	2-19/32
(146.0)	(75.4)	(65.9)
5-7/8	3-3/32	2-23/32
(149.2)	(80.2)	(69.0)
6-1/4	3-15/32	3-3/32
(158.7)	(88.1)	(80.2)
6-3/4	3-31/32	3-19/32
(171.4)	(100.8)	(91.3)
7-1/8	4-11/32	3-31/32
(180.9)	(100.3)	(100.8)
7-3/4	4-31/32	4-19/32
(196.8)	(126.2)	(116.7)
8-1/4	5-15/32	5-3/32
(209.5)	(138.9)	(130.9)
8-3/4	5-31/32	5-19/32
(222.2)	(151.6)	(142.1)

Template 230A-98

Effective date: March 30, 1998

Supercedes: All Previous

McKINNEY Template Emergency Door Stop is made to conform to this drawing.

Machine Screw Size: 1/2 x 12-24 F.H.
