McKinney DLS-8 Edge Hung Templates
Open the original PDF document
View PDFArchitectural Door Accessories
McKinney DLS-8* Template Double Lipped Strike For Edge Hung Doors
|
"A"
FRAME SIZE |
"B"
(REF.) |
"C" DOOR THICKNESS | ||
|---|---|---|---|---|
|
1-3/8
(34.9) |
1-3/4
(44.4) |
"D" | ||
| 4-3/4 | 5-5/16 | 1.562 | 1.375 | 1.375 |
| (120 . 6) | (134 . 9) | (39.66) | (34.92) | (34.92) |
| 5-5/8 | 6-3/16 | 2.000 | 1.812 | 1.750 |
| (142.9) | (157 . 2) | (50.80) | (46.04) | (44.45) |
| 5-3/4 | 6-5/16 | 2.062 | 1.875 | 1.875 |
| (146.0) | (160 . 3) | (52.33) | (47.62) | (47.62) |
| 5-7/8 | 6-7/16 | 2.125 | 1.937 | 1.875 |
| (149 . 2) | (163.5) | (53.97) | (49.17) | (47.62) |
| 6-1/4 | 6-13/16 | 2.312 | 2.125 | 2.125 |
| (158.7) | (173 . 0) | (58.68) | (53.97) | (53.97) |
| 6-3/4 | 7-5/16 | 2.562 | 2.375 | 2.375 |
| (171.4) | (185.7) | (65.04) | (60.32) | (60.32) |
| 7-1/8 | 7-11/16 | 2.750 | 2.562 | 2.500 |
| (180.9) | (195 . 3) | (69.80) | (65.02) | (63.50) |
| 7-3/4 | 8-5/16 | 3.062 | 2.875 | 2.875 |
| (196.8) | (211.1) | (77.73) | (73.02) | (73.02) |
| 8-1/4 | 8-13/16 | 3.312 | 3.125 | 3.125 |
| (209.5) | (223.8) | (84.07) | (79.37) | (79.37) |
| 8-3/4 | 9-5/16 | 3.562 | 3.375 | 3.375 |
| (222.2) | (236 . 5) | (90.42) | (85.72) | (85.72) |
Template 222A-15
Effective date: September 8, 2015
Supercedes: All Previous

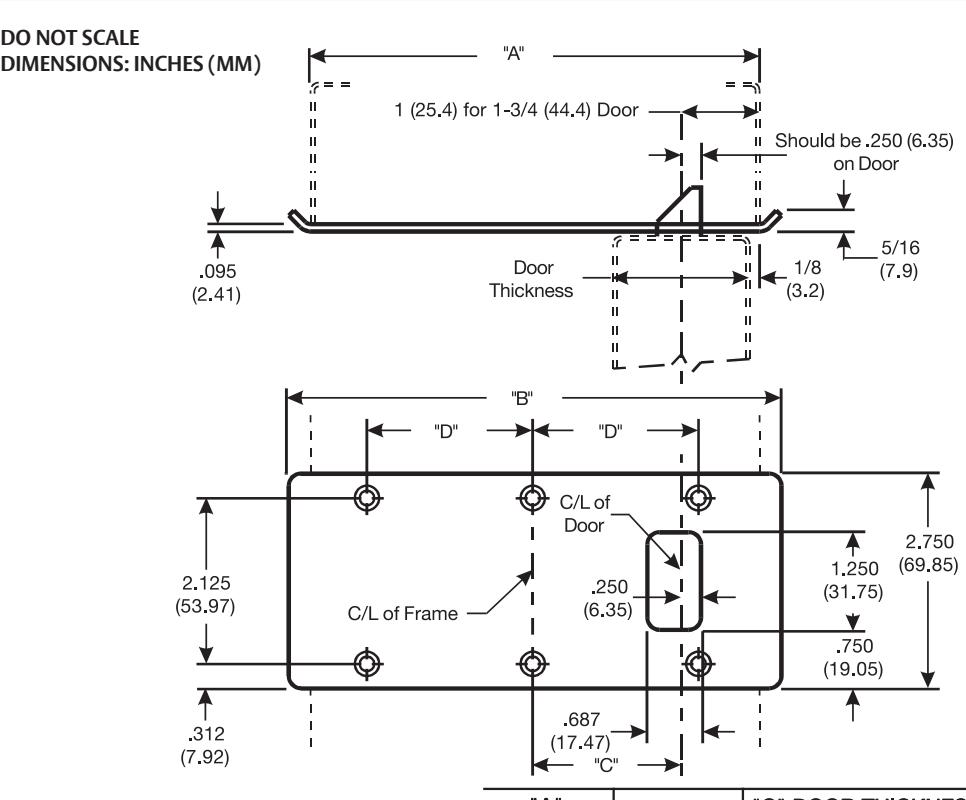

McKINNEY Template Double Lipped Strike for edge hung doors are made to conform to this drawing.
Machine Screw Size: 1/2 x 8-32 F.H.
Wood Screw Size: 3/4 x 8 F.H.
*McKINNEY DLS-8 is designed for use with cylindrical bored lock sets and may not work properly with some mortise locks. Consult factory for mortise lock applications.
