McKinney DLS-8 Center Hung Templates
Open the original PDF document
View PDFArchitectural Door Accessories
DO NOT SCALE

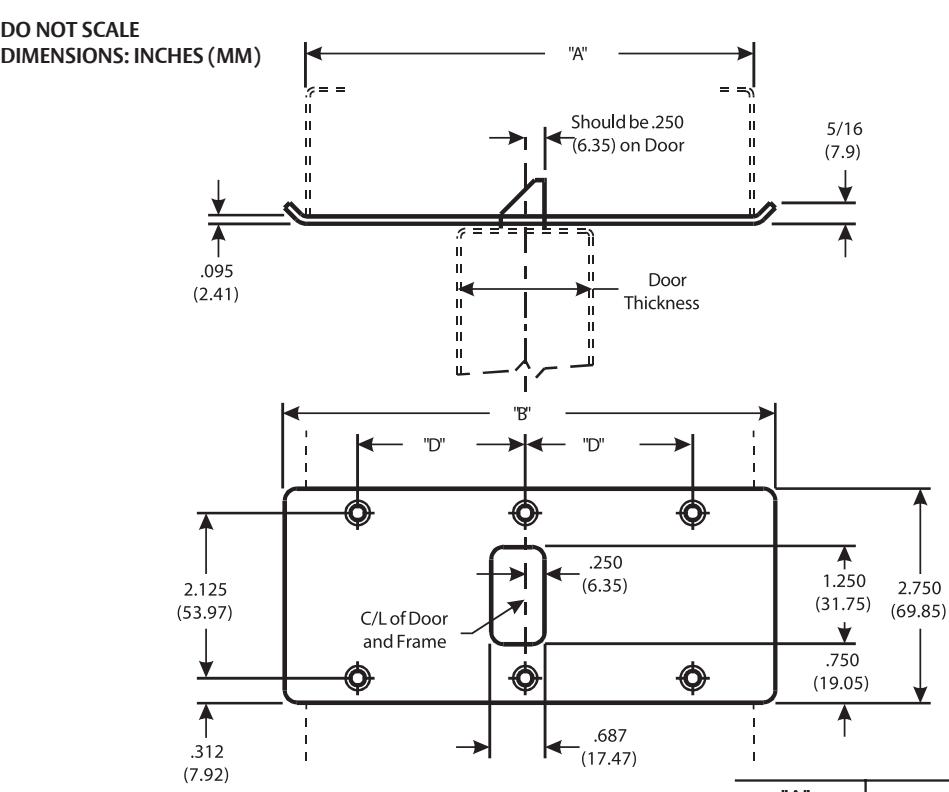

McKinney DLS-8* Template Double Lipped Strike For Center Hung Doors
|
"A"
FRAME SIZE |
"B"
(REF.) |
"D" |
|---|---|---|
| 4-3/4 | 5-5/16 | 1.375 |
| (120.6) | (134.9) | (34.92) |
| 5-5/8 | 6-3/16 | 1.750 |
| (142.9) | (157.2) | (44.45) |
| 5-3/4 | 6-5/16 | 1.875 |
| (146.0) | (160.3) | (47.62) |
| 5-7/8 | 6-7/16 | 1.875 |
| (149.2) | (163.5) | (47.62) |
| 6-1/4 | 6-13/16 | 2.125 |
| (158.7) | (173.0) | (53.97) |
| 6-3/4 | 7-5/16 | 2.375 |
| (171.4) | (185.7) | (60.32) |
| 7-1/8 | 7-11/16 | 2.500 |
| (180.9) | (195.3) | (63.50) |
| 7-3/4 | 8-5/16 | 2.875 |
| (196.8) | (211.1) | (73.02) |
| 8-1/4 | 8-13/16 | 3.125 |
| (209.5) | (223.8) | (79.37) |
| 8-3/4 | 9-5/16 | 3.375 |
| (222.2) | (236.5) | (85.72) |
Template 222B-04
Effective date: January 20, 2004
Supercedes: All Previous
McKINNEY Template Double Lipped Strike for center hung doors are made to conform to this drawing.
Machine Screw Size: 1/2 x 8-32 F.H.
Wood Screw Size: 3/4 x 8 F.H.
*McKINNEY DLS-8 is designed for use with cylindrical bored lock sets and may not work properly with some mortise locks. Consult factory for mortise lock applications.
