View PDFArchitectural Door Accessories

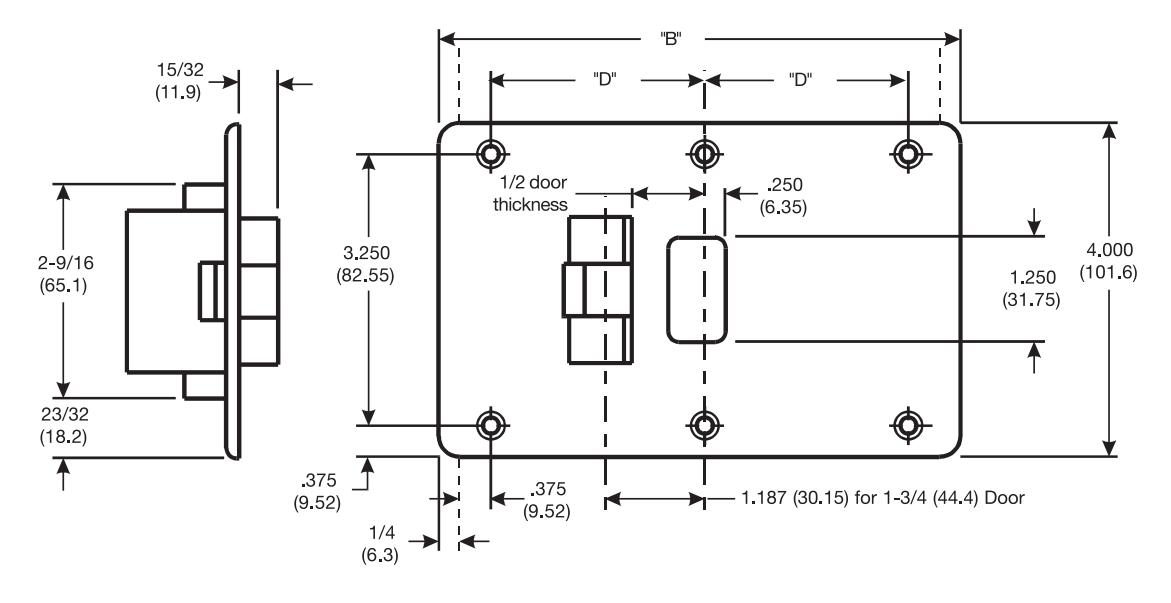

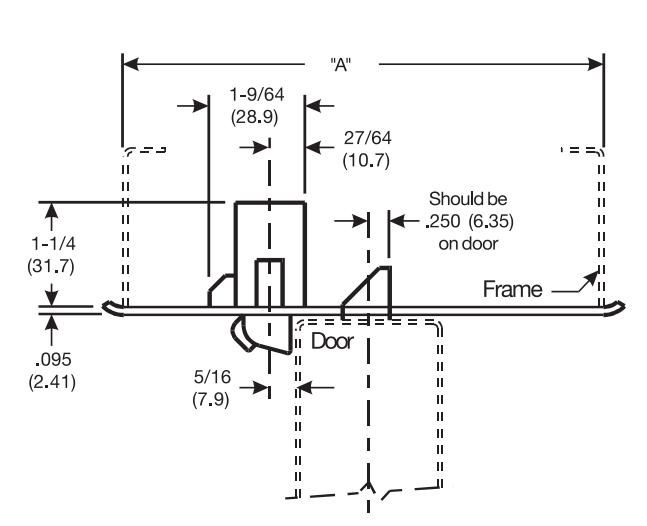

McKinney CSS-9* Template Combination Strike & Stop - For Center Hung Doors
DO NOT SCALE DIMENSIONS: INCHES (MM)
| "A" | "B" | |
|---|---|---|
|
FRAME
SIZE |
(REF.) | "D" |
| 4-3/4 | 5-5/16 | 2.000 |
| (120.6) | (134.9) | (50.80) |
| 5-5/8 | 6-3/16 | 2.437 |
| (142.9) | (157.2) | (61.91) |
| 5-3/4 | 6-5/16 | 2.500 |
| (146.0) | (160 . 3) | (63.50) |
| 5-7/8 | 6-7/16 | 2.562 |
| (149.2) | (163 . 5) | (65.09) |
| 6-1/4 | 6-13/16 | 2.750 |
| (158.7) | (173.0) | (69.85) |
| 6-3/4 | 7-5/16 | 3.000 |
| (171.4) | (185.7) | (76.20) |
| 7-1/8 | 7-11/16 | 3.187 |
| (180.9) | (195.3) | (80.96) |
| 7-3/4 | 8-5/16 | 3.500 |
| (196.8) | (211.1) | (88.90) |
| 8-1/4 | 8-13/16 | 3.750 |
| (209.5) | (223.8) | (95.25) |
| 8-3/4 | 9-5/16 | 4.000 |
| (222.2) | (236.5) | (101.60) |
Template 221B-15
Effective date: September 2, 2015
Supercedes: All Previous
McKINNEY Template Combination Strike and Stop for center hung doors are made to conform to this drawing.
Machine Screw Size: 1/2 x 8-32 F.H.
Wood Screw Size: 3/4 x 8 F.H.
*McKINNEY CSS-9 is designed for use with cylindrical bored lock sets and may not work properly with some mortise locks. Consult factory for mortise lock applications.
