McKinney CS1 Double Acting Spring Hinge Templates

Architectural Door Accessories

McKinney CS1-A Template Double Acting Clamp Flange Spring Hinge

Template 325-98

Effective date: March 30, 1998

Supercedes: All Previous

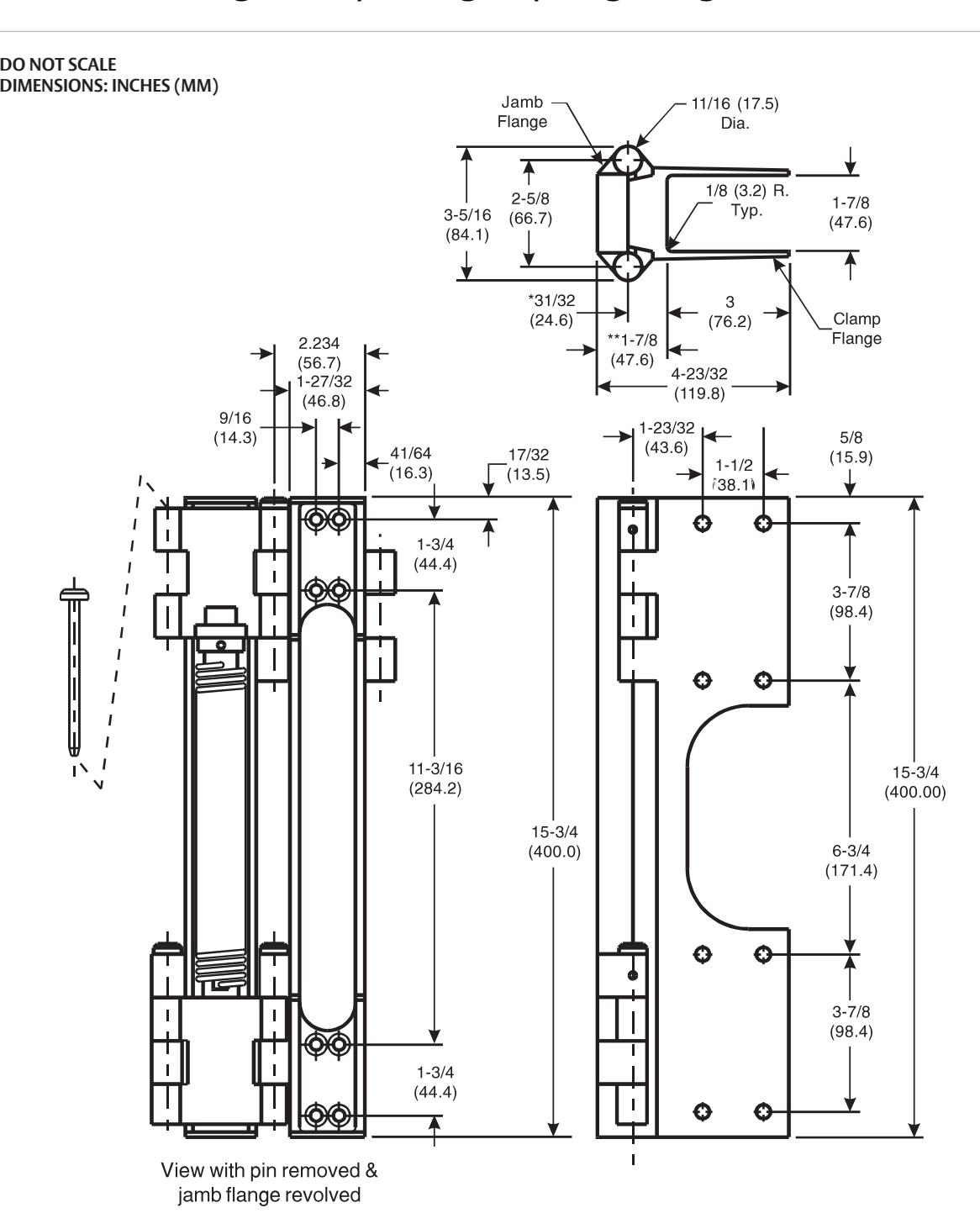

McKINNEY Template Clamp Flange Spring Hinge is made to conform to this drawing.

Machine Screw Size: Jamb Flange: 1 x 1/4-20 F.H. with External Tooth Lock Washer Clamp Flange: 21/2 x 5/16-18

Hex Head Bolt with Hex Nut *Mortise depth when using

the recommended 29/32 filler strip.

**Mortise depth for installation without a filler strip.
