McKinney CC 3 & 5 Knuckle Hinges Templates
Open the original PDF document
View PDFArchitectural Door Accessories

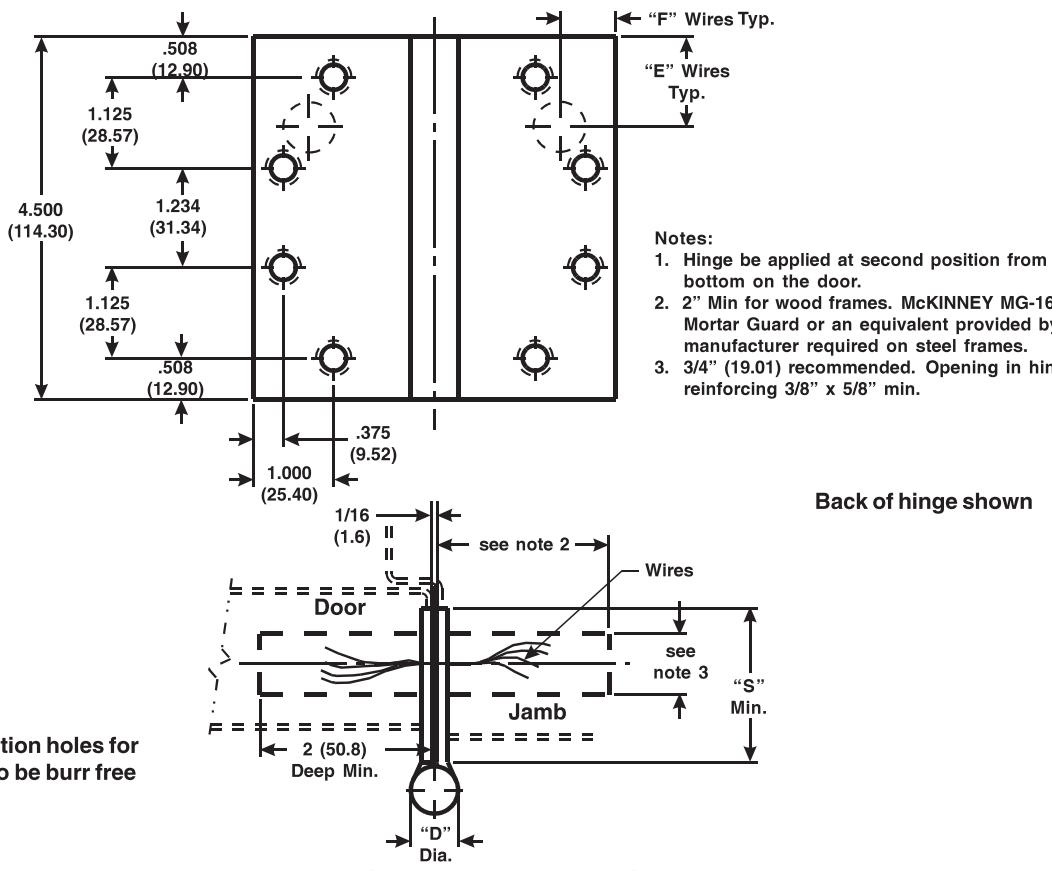

McKinney 41/2 x 4, 41/2 x 41/2 Template Full Mortise Concealed Circuit Hinges
DO NOT SCALE DIMENSIONS: INCHES (MM)
| Dia. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Bottom | viow | /Hings is | a alocad | nocition) | ||||||
| CATALOG NUMBER | 041105 | "5" | "F" | "F" | "S" DISTANCE (SWAGE LINE) | ||
|---|---|---|---|---|---|---|---|
|
STEEL
HINGES |
*NON-FERROUS
HINGES |
GAUGE
OF METAL |
"D" OUTSIDE DIAMETER |
WIRE
LOCATION |
WIRE | HINGE WIDTH | |
|
4
(101.6) |
4½
(114.3) |
||||||
| TA 714xCC | TA 314xCC |
.134
(3.40) |
.585
(14.86) |
1.125
(28.57) |
.812
(20.64) |
1-21/32
(42.1) |
1-29/32
(48.4) |
| TA 786xCC | TA 386xCC |
.180
(4.57) |
.720
(18.29) |
1.125
(28.57) |
.812
(20.64) |
1-9/16
(39.7) |
1-13/16
(46.0) |
| TA/TB 2714xCC | TA/TB 2314xCC |
.134
(3.40) |
.585
(14.86) |
1.125
(28.57) |
.688
(17.47) |
1-21/32
(42.1) |
1-29/32
(48.4) |
| T4A/T4B 3786xCC | T4A/T4B 3386xCC |
.180
(4.57) |
.752
(19.10) |
1.062
(26.98) |
.750
(19.05) |
1-9/16
(39.7) |
1-13/16
(46.0) |
Template 275-17
Effective date: July 27, 2017
Supercedes: All Previous
McKINNEY Template Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7 for Screw Hole Location and Gauge of Metal. Wire location and hole size conforms to this drawing.
Machine Screw Size: 1/2 x 12-24 F.H.
Wood Screw Size: 11/4 x 12 F.H.
*Check Catalog for Metals.
