View PDFArchitectural Door Accessories
McKinney 5 x 4, 5 x 41/2, 5 x 5 Template Full Mortise Concealed Circuit Hinges
| CATALOG NUMBER | GAUGE | "D" | "S" DISTANCE (SWAGE LINE) | |||
|---|---|---|---|---|---|---|
|
STEEL
HINGES |
*NON-FERROUS
HINGES |
OF
METAL |
OUTSIDE
DIAMETER |
HINGE WIDTH | ||
|
4
(101.6) |
4½
(114.3) |
5
(127.0) |
||||
| TA 2731xCC | TA 3331xCC |
.146
(3.71) |
.525
(13.33) |
1-21/32
(42.1) |
1-29/32
(48.4) |
2-5/32
(54.8) |
| TA 3750xCC | TA 3350xCC |
.190
(4.83) |
.701
(17.80) |
** |
1-13/16
(46.0) |
2-1/16
(52.4) |

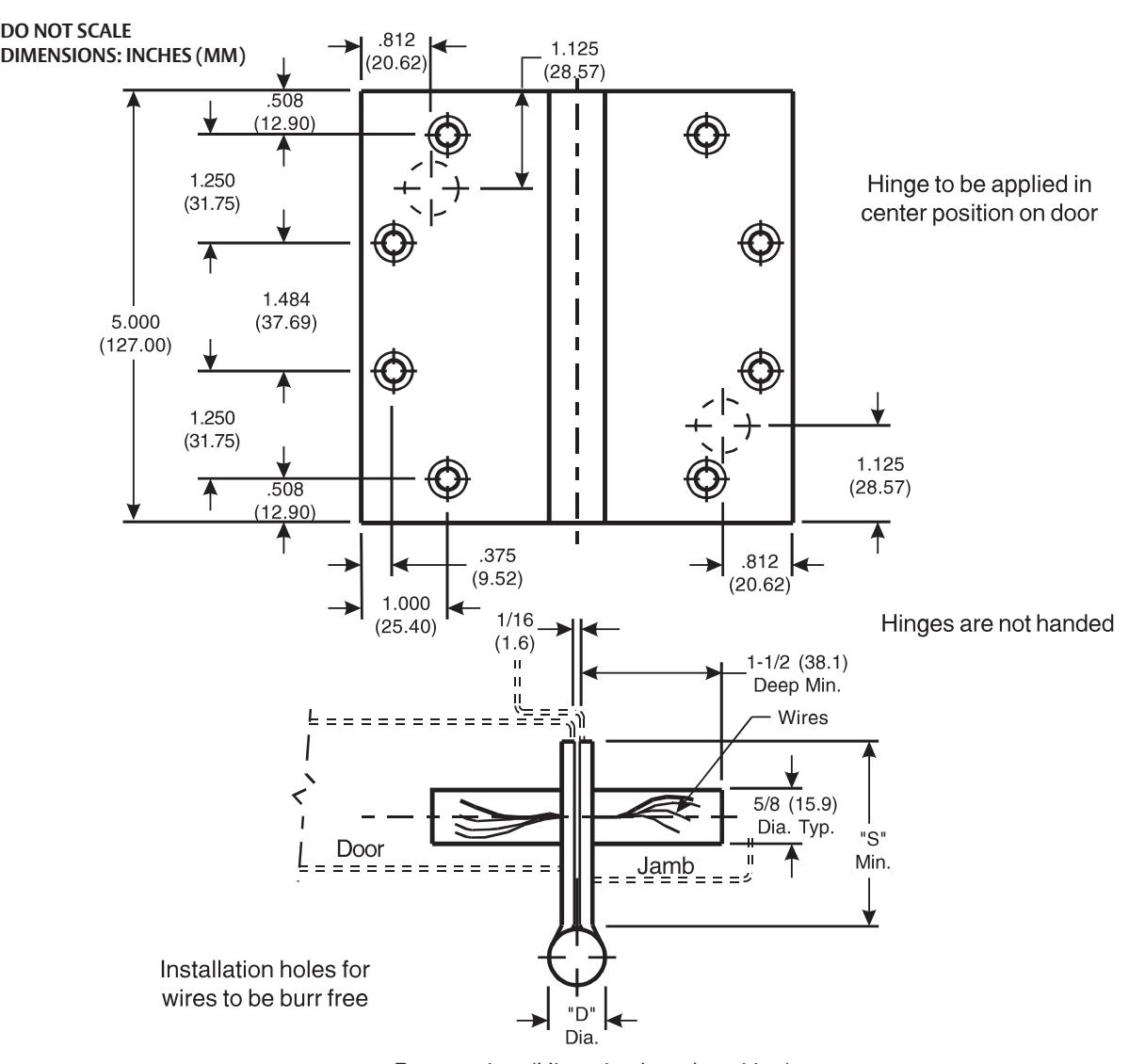

Template 270-10
Effective date: August 20, 2010
Supercedes: All Previous
McKINNEY Template Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7 for Screw Hole Location and Gauge of Metal. Wire location and hole size confirms to this drawing.
Machine Screw Size: 1/2 x 12-24 F.H.
Wood Screw Size: 11/4 x 12 F.H.
*Check Catalog for Metals.
**Dimensions will be supplied upon request.
