McKinney 95HD SER Aluminum Continuous Hinge Templates
Open the original PDF document
View PDFArchitectural Door Accessories

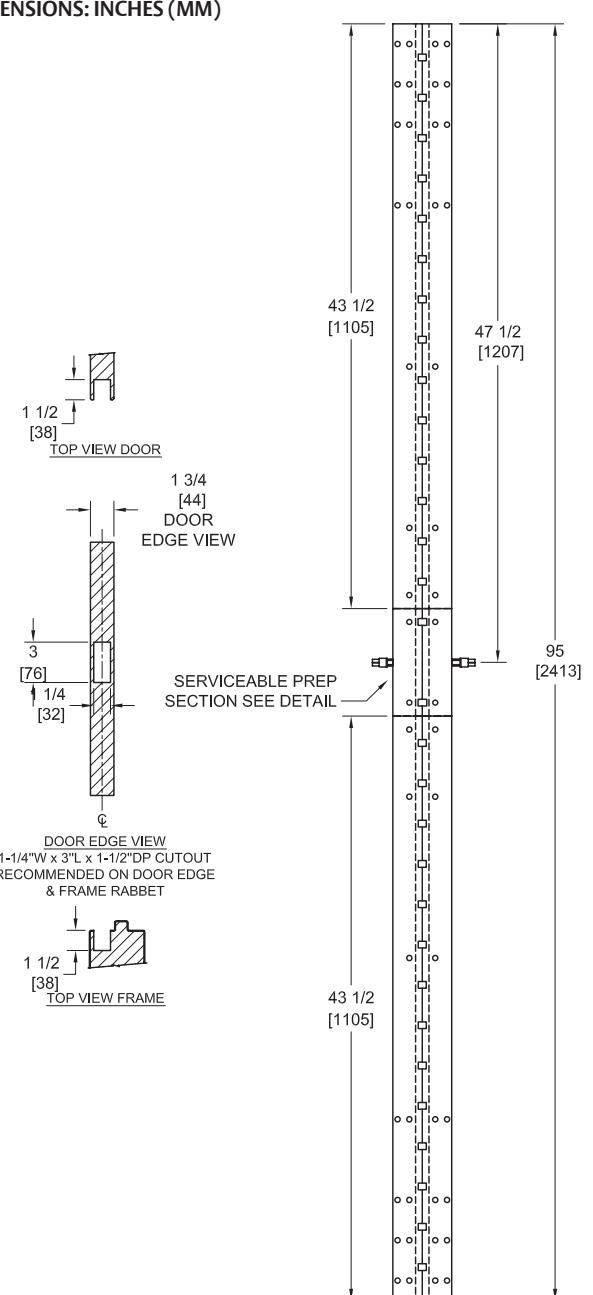

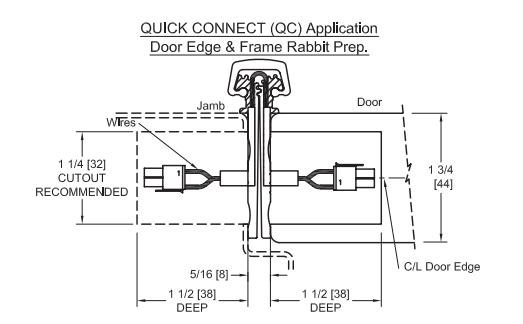

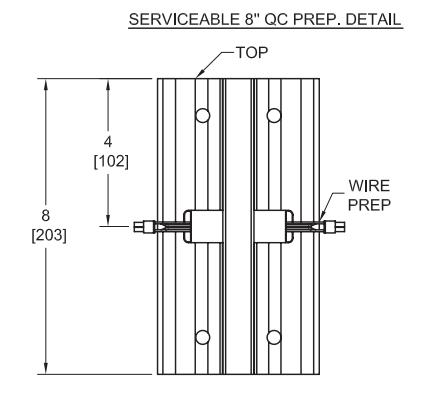

McKinney 95HD - Serviceable Prep Standard Location Template
Includes All Profiles (MCK-12HD shown)
DO NOT SCALE
ALL DIMENSIONS ARE FOR METAL FRAMES WITH METAL OR WOOD DOORS
DIMENSIONS: INCHES (MM)
DOOR HINGE 76Y2 F-3HR 3HR REQUIRES FIRE PINS
Template 95HD-SER-14
Effective date: July 20, 2014
Supercedes: All Previous
