McKinney 83HD SER Aluminum Continuous Hinge Templates

Architectural Door Accessories

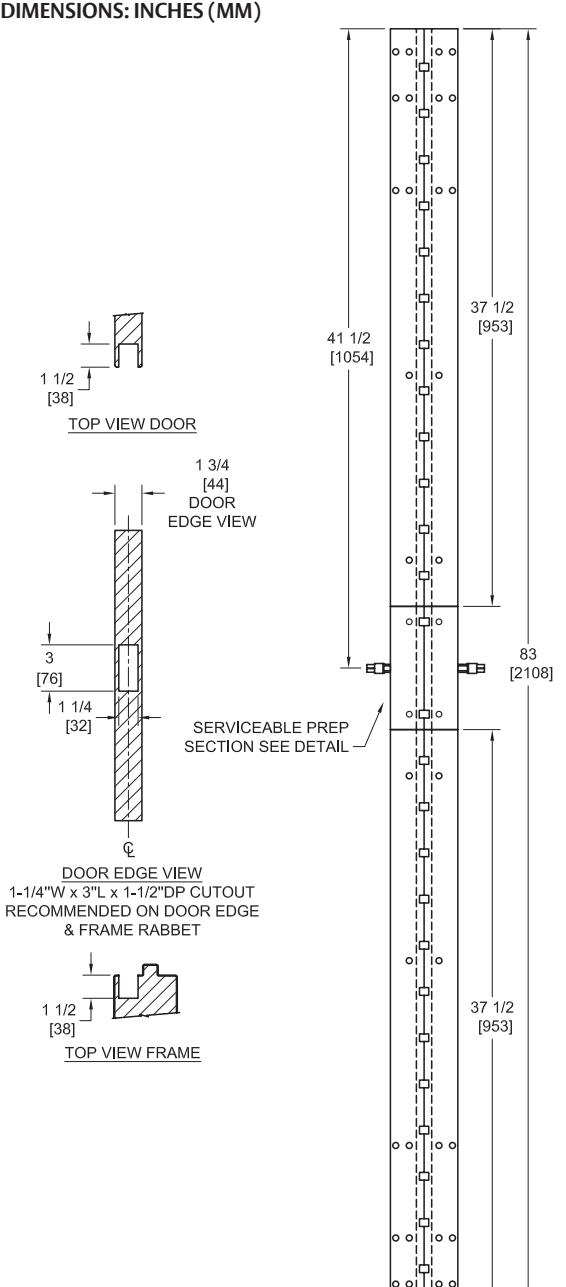

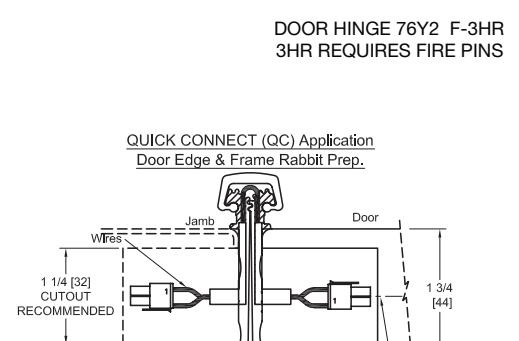

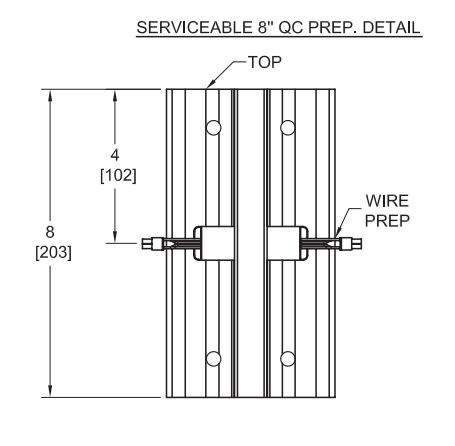

McKinney 83HD - Serviceable Prep Standard Location Template

Includes All Profiles (MCK-12HD shown)

DO NOT SCALE

ALL DIMENSIONS ARE FOR METAL FRAMES WITH METAL OR WOOD DOORS

Effective date: July 20, 2014

Supercedes: All Previous
