McKinney 8" - 19001 Template Full Mortise Double Acting Clamp Flange Spring Hinge

DO NOT SCALE DIMENSIONS: INCHES (MM)

Template 505-98

Effective date: March 30, 1998

Supercedes: All Previous

McKINNEY Template Full Mortise Double Acting Clamp Flange Spring Hinge is made to conform to this drawing.

Machine Screw Size: Jamb Flange: 1/2 x 12-24 F.H. Clamp Flange: 21/2 x 5/16-18 Hex Head Bolt with Hex Nut

Page 1 of 2

DO NOT SCALE DIMENSIONS: INCHES (MM)

Door Sizes, Weights & Clearance "B"
Door Width	Door Weights (Lbs.) Max.		Clearance "B" Min. Square Round
	1 Pr. Hinges	1-1/2 Pr. Hinges	•	Edge Door
2'-0	185	286	.312	.125
2'-6	148	228	.312	.125
2'-8	138	215	.250	.125
3'-0	124	191	.250	.125
3'-4	111	172	.250	.125
3'-6	103	163	.250	.125
4'-0	83	143	.250	.125
Weights Shown Above Are For Doors 7'-0 Min. Height

Template 505-98

Effective date: March 30, 1998

Supercedes: All Previous

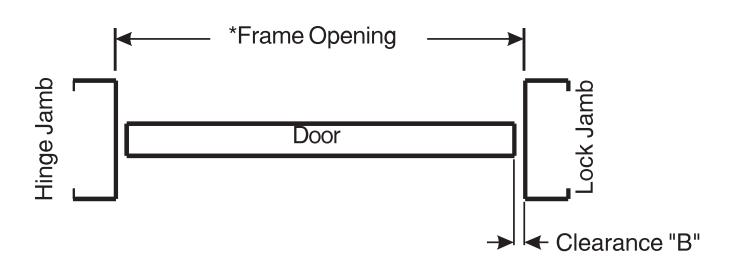

Single Doors = Clearance "A" + Clearance "B" + Door Width

Double Doors = 2 x the frame opening of single doors

Page 2 of 2
