McKinney 7’0 Mounting Hole Pattern Templates

Open the original PDF document

View PDF

Architectural Door Accessories

ASSA ABLOY

The global leader in door opening solutions

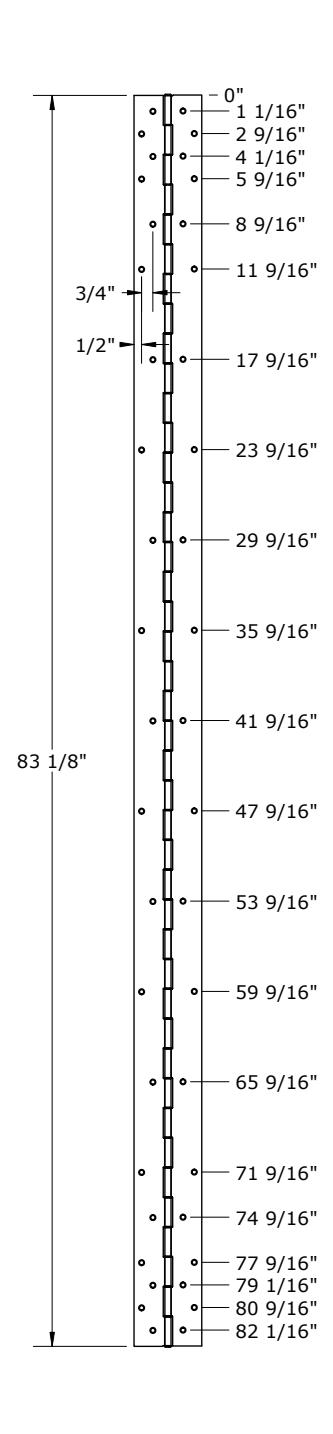

McKinney 7'0" (83<sup>1</sup>/<sub>8</sub>") Mounting Hole Pattern

DO NOT SCALE DIMENSIONS: INCHES

Template 83-15

Effective date: February 3, 2015

Supercedes: All Previous

USING THE ACTUAL HINGE AS THE TEMPLATE IS HIGHLY RECOMMENDED.

Dimensions shown are for hinge models listed below.

Both Frame and Door Leaf MCK-FM300, MCK-FM327, MCK-FM3500, MCK-FM3700, MCK-HG305, MCK-HG3505, MCK-HG315, MCK-HG322, MCK-HG326

Door Leaf Only MCK-HG306, MCK-HG310, MCK-HG311, MCK-HM304

Frame Leaf Only MCK-HG323, MCK-HS303, MCK-HS3703
