McKinney PH-4 61/4 x 117/32 Template Pocket Hinge

Template 226-10

Effective date: August 20, 2010

Supercedes: All Previous

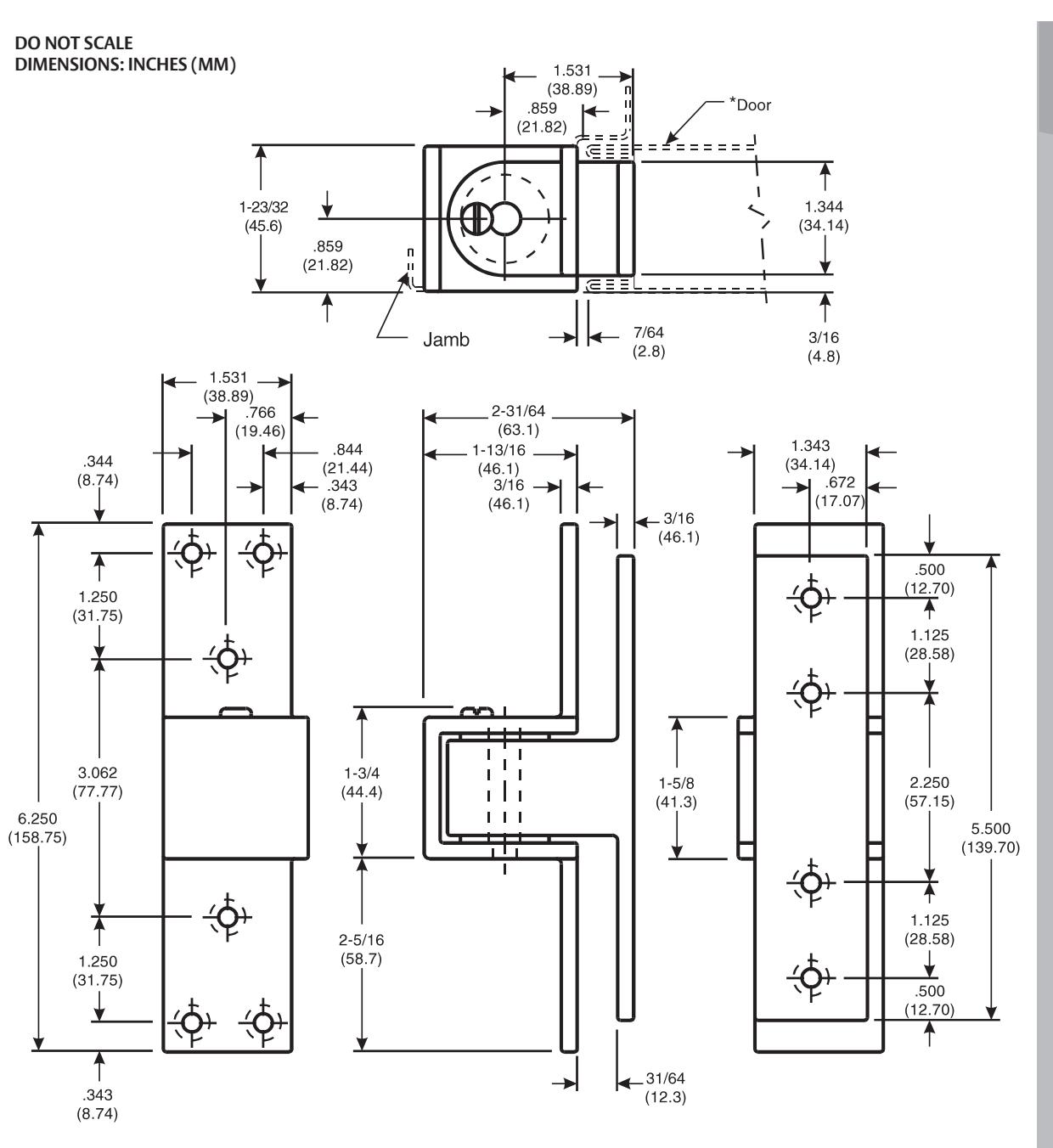

McKINNEY Template Pocket Hinge is made to conform to this drawing.

Machine Screw Size: 3/4 x 12-24 F.H.

Wood Screw Size: 11/4 x 12 F.H.

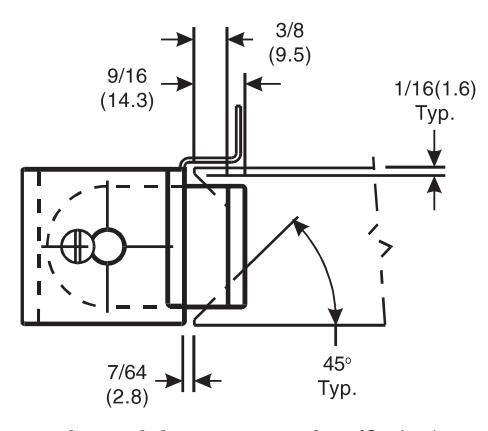

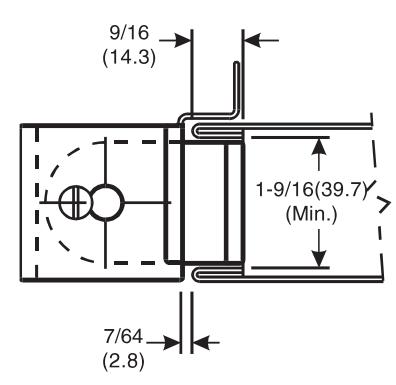

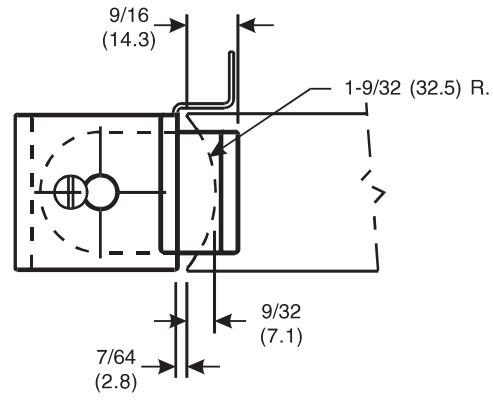

*See Back for suggested door preparations.

Page 1 of 2

DO NOT SCALE DIMENSIONS: INCHES (MM)

Template 226-10

Effective date: August 20, 2010

Supercedes: All Previous

Page 2 of 2
