McKinney 6 T4A T4B 3781 and T4A T4B 3381 Templates

Architectural Door Accessories

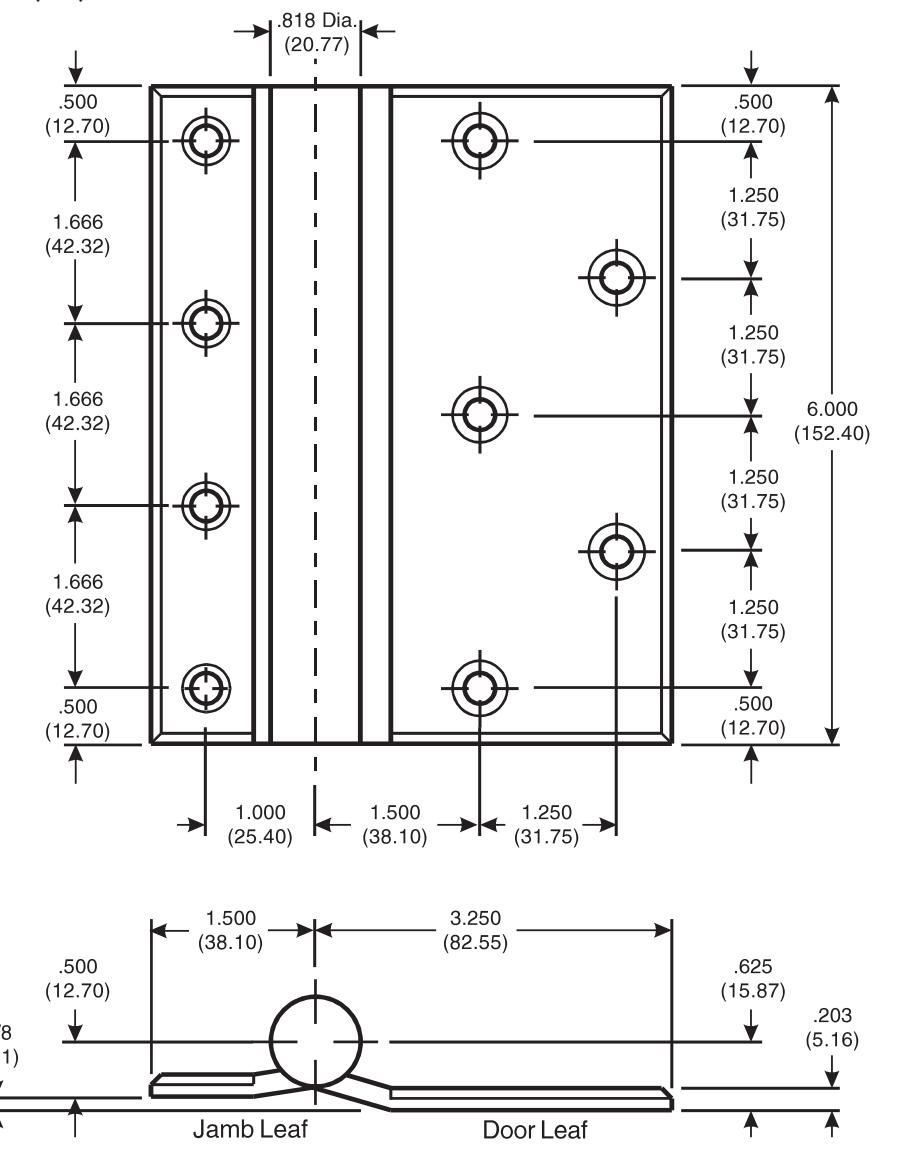

McKinney 6" Full Surface Template Hinges

DO NOT SCALE DIMENSIONS: INCHES (MM)

Template 140-15

Effective date: September 2, 2015

Supercedes: All Previous

McKINNEY Template Full Surface Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7.

Hospital Type Template Hinges conform to screw hole locations shown.

Machine Screw Size: Jamb Leaf: 1/2 x 1/4-20 F.H. Door Leaf: 2 x 1/4-20 O.H. with Grommet Nut (Specify door thickness if greater than 13/4)

Hinges are reversable.

*Check Catalog for Metals.
