View PDFArchitectural Door Accessories

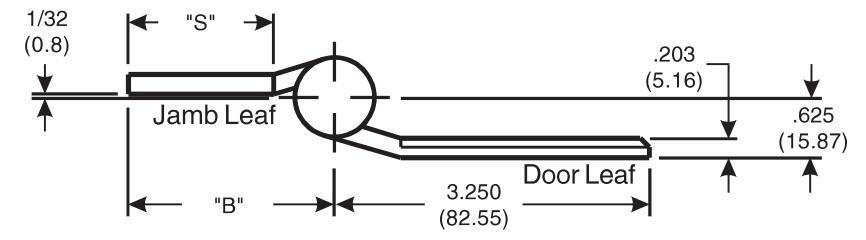

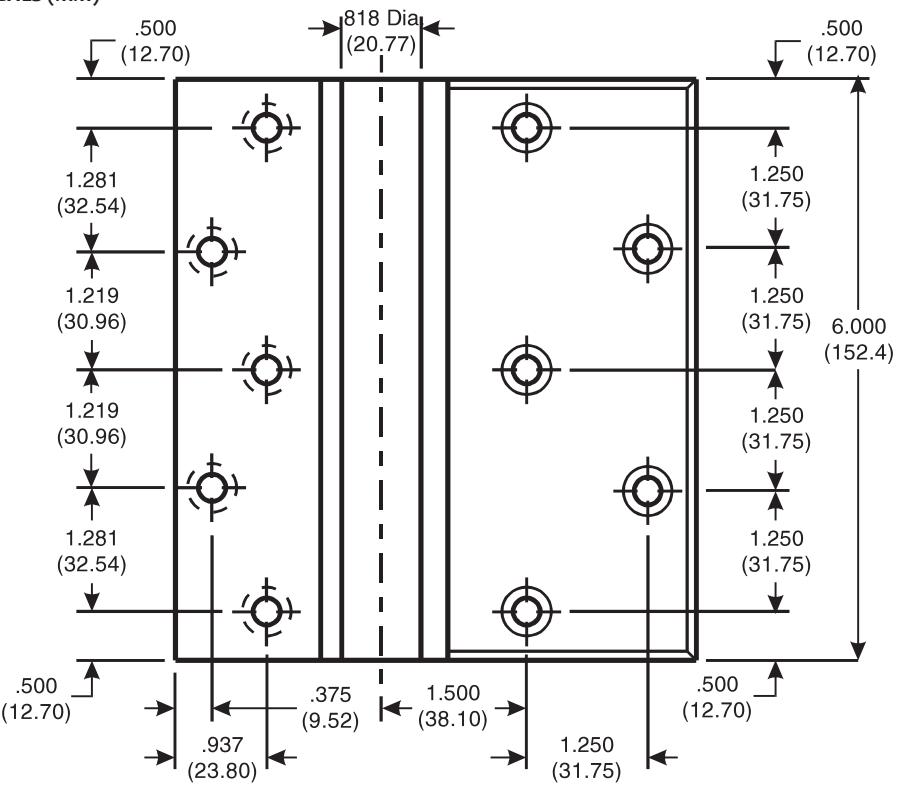

McKinney 6" Half Surface Template Hinges
DO NOT SCALE DIMENSIONS: INCHES (MM)
| CATALOG NUMBER | JAMB LEAF | |||
|---|---|---|---|---|
|
STEEL
HINGES |
*NON-FERROUS OR
STAINLESS STEEL HINGES |
DOOR
THICKNESS |
"B"
TO CENTER LINE |
"S"
SWAGE LINE |
| T4A/T4B 3782 | T4A/T4B 3382 |
1-3/4
(44.4) |
2.125
(53.97) |
1-1/2
(38.1) |
| T4A/T4B 3782 | T4A/T4B 3382 |
2-1/4
(57.1) |
2.625
(66.67) |
2
(50.8) |
Template 185-15
Effective date: September 2, 2015
Supercedes: All Previous
McKINNEY Template Half Surface Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7.
Hospital Type Template Hinges conform to screw hole locations shown.
Machine Screw Size: Jamb Leaf: 1/2 x 1/4-20 F.H. Door Leaf: 2 x 1/4-20 O.H. with Grommet Nut (Specify door thickness if greater than 13/4.)
Hinges are reversible.
*Check Catalog for Metals.
