Architectural Door Accessories

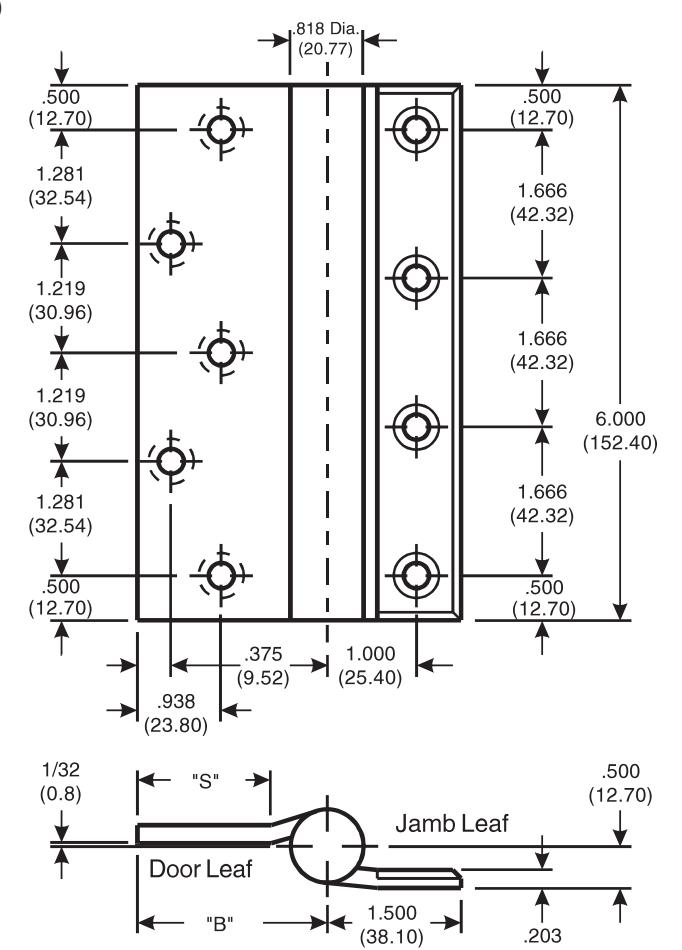

McKinney 6" Half Mortise Template Hinges

DO NOT SCALE DIMENSIONS: INCHES (MM)

CATALOG NUMBER JAMB LEAF
STEEL
HINGES 		*NON-FERROUS OR
STAINLESS STEEL
HINGES 		DOOR
THICKNESS 		"B"
TO CENTER
LINE 		"S"
SWAGE
LINE
TA 784 TA 384 1-3/4
(44.4) 		2.125
(53.97) 		1-1/2
(38.1)
TA 784 TA 384 2-1/4
(57.1) 		2.625
(66.67) 		2
(50.8)
T4A/T4B 3784 T4A/T4B 3384 1-3/4
(44.4) 		2.125
(53.97) 		1-1/2
(38.1)
T4A/T4B 3784 T4A/T4B 3384 2-1/4
(57.1) 		2.625
(66.67) 		2
(50.8)

Template 205-15

Effective date: September 2, 2015

Supercedes: All Previous

McKINNEY Template Half Mortise Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7.

Hospital Type Template Hinges conform to screw hole locations shown.

Machine Screw Size: Jamb Leaf: 1/2 x 1/4-20 F.H. Door Leaf: 1/2 x 1/4-20 F.H..

Hinges are reversible.

*Check Catalog for Metals.
