Architectural Door Accessories

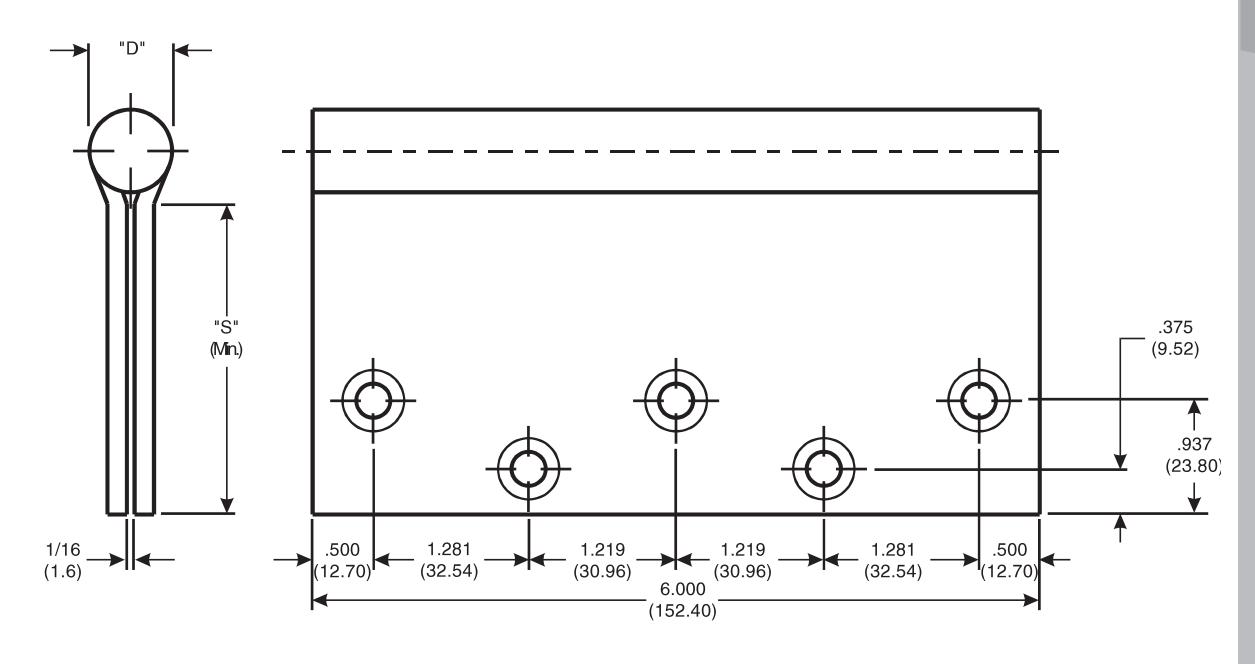

McKinney 6 x 5, 6 x 6 Full Mortise Template Hinges

DO NOT SCALE DIMENSIONS: INCHES (MM)

CATALOG NUMBER CALICE "D" "S" DISTANCE (SWAGE LINE)
STEEL
HINGES 		*NON-FERROUS
OR STAINLESS
STEEL HINGES 		GAUGE
OF
METAL 		OUTSIDE
DIAMETER 		HINGE WIDTH
5
(127.0) 		6
(152.4)
TA 786 TA 386 .203
(5.16) 		.818
(20.78) 		1-7/8
(47.6) 		2-3/8
(60.3)
TA/TB 2714 TA/TB 2314 .160
(4.06) 		.681
(17.30) 		- 2-9/16
(65.1)
T4A/T4B 3786 T4A/T4B 3386 .203
(5.16) 		.818
(20.78) 		1-7/8
(47.6) 		2-3/8
(60.3)

Template 040-15

Effective date: September 1, 2015

Supercedes: All Previous

McKINNEY Template Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7.

Hospital Type Template Hinges conform to screw hole locations shown.

Machine Screw Size: 1/2 x 1/4-20 F.H.

Wood Screw Size: 11/2 x 14 F.H.

*Check Catalog for Metals.
