McKinney 6 1001 Double Acting Spring Hinge Templates
Open the original PDF document
View PDFArchitectural Door Accessories
McKinney 6" - 1001 Template Full Mortise Double Acting Spring Hinge
DO NOT SCALE DIMENSIONS: INCHES (MM)
Template 360-98
Effective date: March 30, 1998
Supercedes: All Previous
McKINNEY Template Full Mortise Double Acting Spring Hinge is made to conform to this drawing.
Wood Screw Size: 11/4 x 12 F.H.
Page 1 of 2
DO NOT SCALE DIMENSIONS: INCHES (MM)

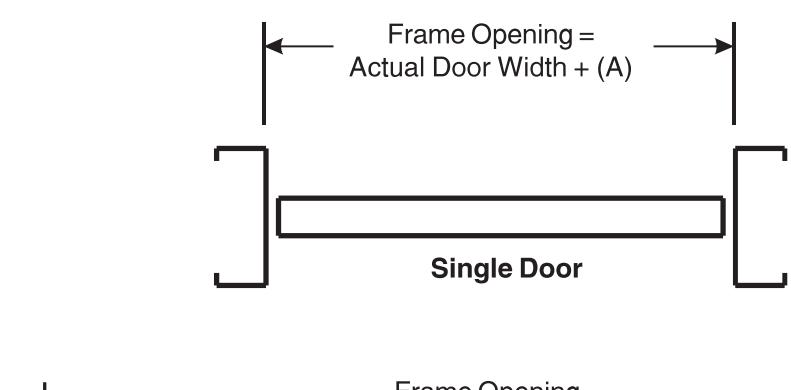

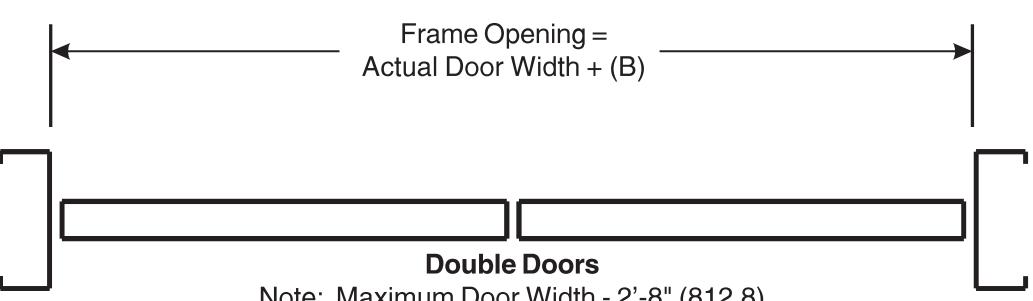

| Frame Clearances | ||
|---|---|---|
| Hinge Mounting | Clearance (A) | Clearance (B) |
| Surface Applied | .512 (13.0) | 1.024 (26.01) |
| Door Flange Mortised | .407 (10.34) | .814 (20.67) |
Template 360-98
Effective date: March 30, 1998
Supercedes: All Previous
Notes:
- 1. This hinge is not to be used on doors with hinge edge beveled.
- 2. Refer to catalog for door weight and hinge size.
- 3. Hinges should be inverted on one door of a pair for proper centering.
Page 2 of 2
