View PDFArchitectural Door Accessories

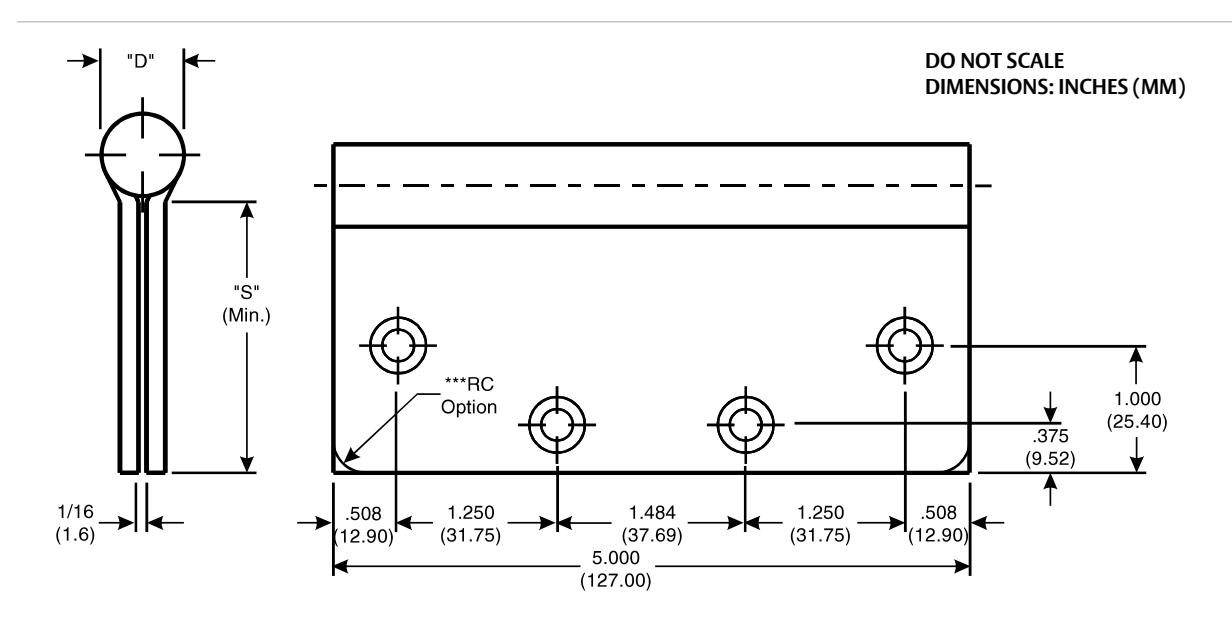

McKinney 5 x 4, 5 x 41/2, 5 x 5, 5 x 6, 5 x 7, 5 x 8 Full Mortise Template Hinges
|
6
(152.4) |
||||||||
|---|---|---|---|---|---|---|---|---|
|
1-5/8
(41.3) |
||||||||
|
2-5/8
(66.7) |
||||||||
|
2-37/64
(65.5) |
||||||||
|
1-37/64
(40.1) |
2-37/64
(65.5) |
|||||||
|
2-37/64
(65.5) |
||||||||
Template 035-18
Effective date: July 13, 2018
Supersedes: All Previous
McKINNEY Template Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7.
Hospital Type Template Hinges conform to screw hole locations shown.
Machine Screw Size: 1/2 x 12-24 F.H.
Wood Screw Size: 11/4 x 12 F.H.
*Check Catalog for Metals.
**Dimensions will be supplied upon request.
***Round Corner Option is available with 1/4 (6.3) or 5/8 (15.9) radii. If none is specified 1/4 (6.3) will be supplied.
