McKinney 5 x 41/2, 5 x 5 Template Full Mortise, QC* Hinge x MM Hinge (2 to 8 Wires)
| CATALOG NUMBER | "F" | "E" | "S" (SWAGE LINE) | ||||
|---|---|---|---|---|---|---|---|
|
STEEL
HINGES |
**NON-FERROUS
HINGES |
GAUGE
OF METAL |
"D"
OUTSIDE DIA. |
WIRE
LOCATION |
WIRE
LOCATION |
HINGE WIDTH | |
|
4½
(114.3) |
5
(127.0) |
||||||
| TA 714xQCxMM | TA 314xQCxMM |
.146
(3.71) |
.648
(16.46) |
1.125
(28.57) |
.812
(20.64) |
1-7/8
(47.6) |
2-1/8
(53.9) |
| TA 786xQCxMM | TA 386xQCxMM |
.190
(4.83) |
.752
(19.10) |
1.125
(28.57) |
.812
(20.64) |
1-53/64
(46.4) |
2-5/64
(52.8) |
| TA/TB 2714xQCxMM | TA/TB 2314xQCxMM |
.146
(3.71) |
.648
(16.46) |
1.125
(28.57) |
.812
(20.64) |
1-7/8
(47.6) |
2-1/8
(53.9) |
| T4A/T4B 3786xQCxMM | T4A/T4B 3386xQCxMM |
.190
(4.83) |
.752
(19.10) |
1.062
(26.96) |
.750
(19.05) |
1-53/64
(46.4) |
2-5/64
(52.8) |
Template 261-15
Effective date: September 8, 2015
Supercedes: All Previous

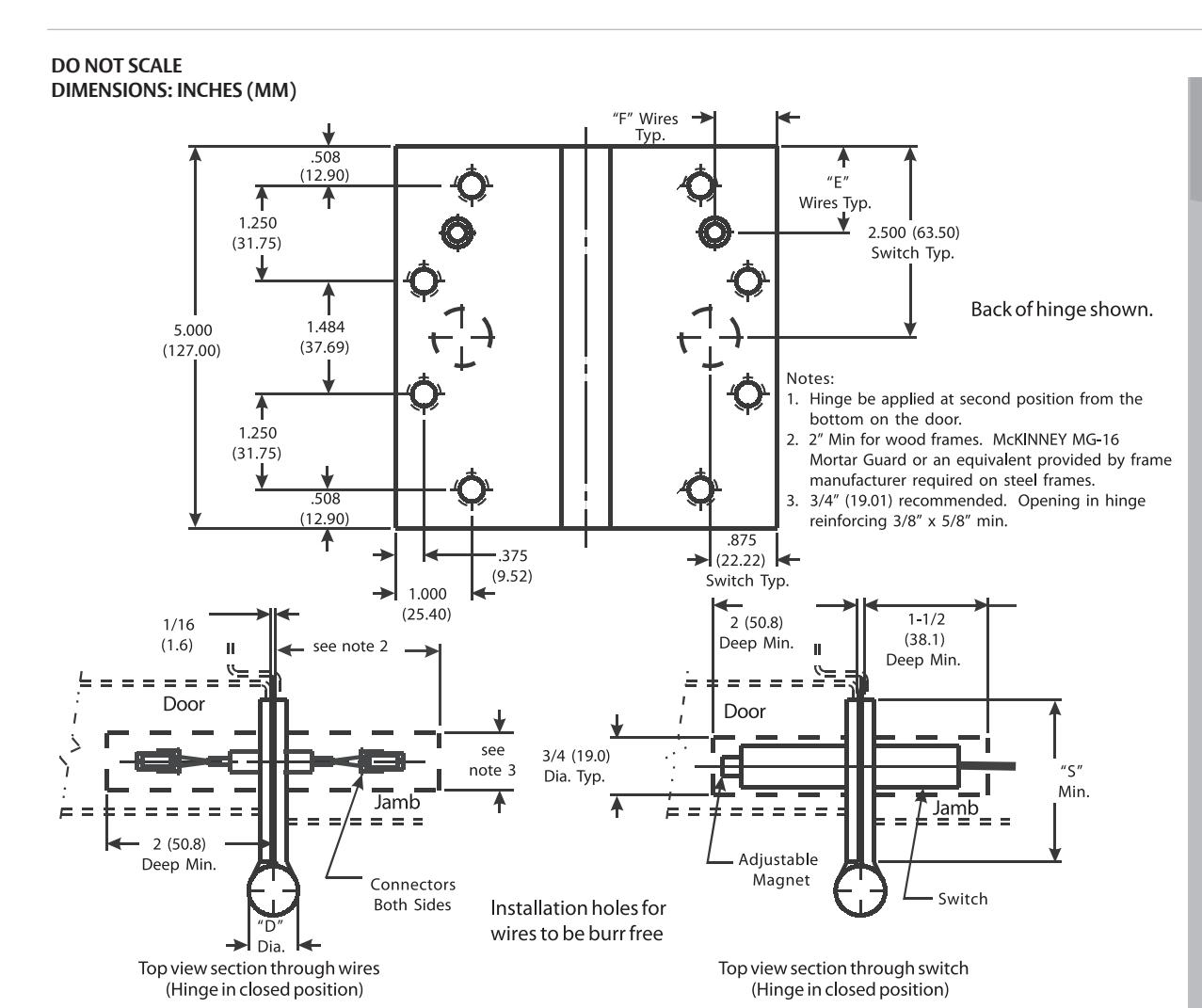

McKINNEY Template Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7 for Screw Hole Location and Gauge of Metal. Switch size, wire location and hole size conforms to this drawing.
Machine Screw Size: 1/2 x 12-24 F.H.
Wood Screw Size: 11/4 x 12 F.H.
*Connector system utilizes wire colors & locations compatible with doors & hardware from other ASSA ABLOY Group Companies.
**Check Catalog for Metals.
