McKinney ‘5 QC 3 & 5 Knuckle Hinges Templates
Open the original PDF document
View PDFArchitectural Door Accessories

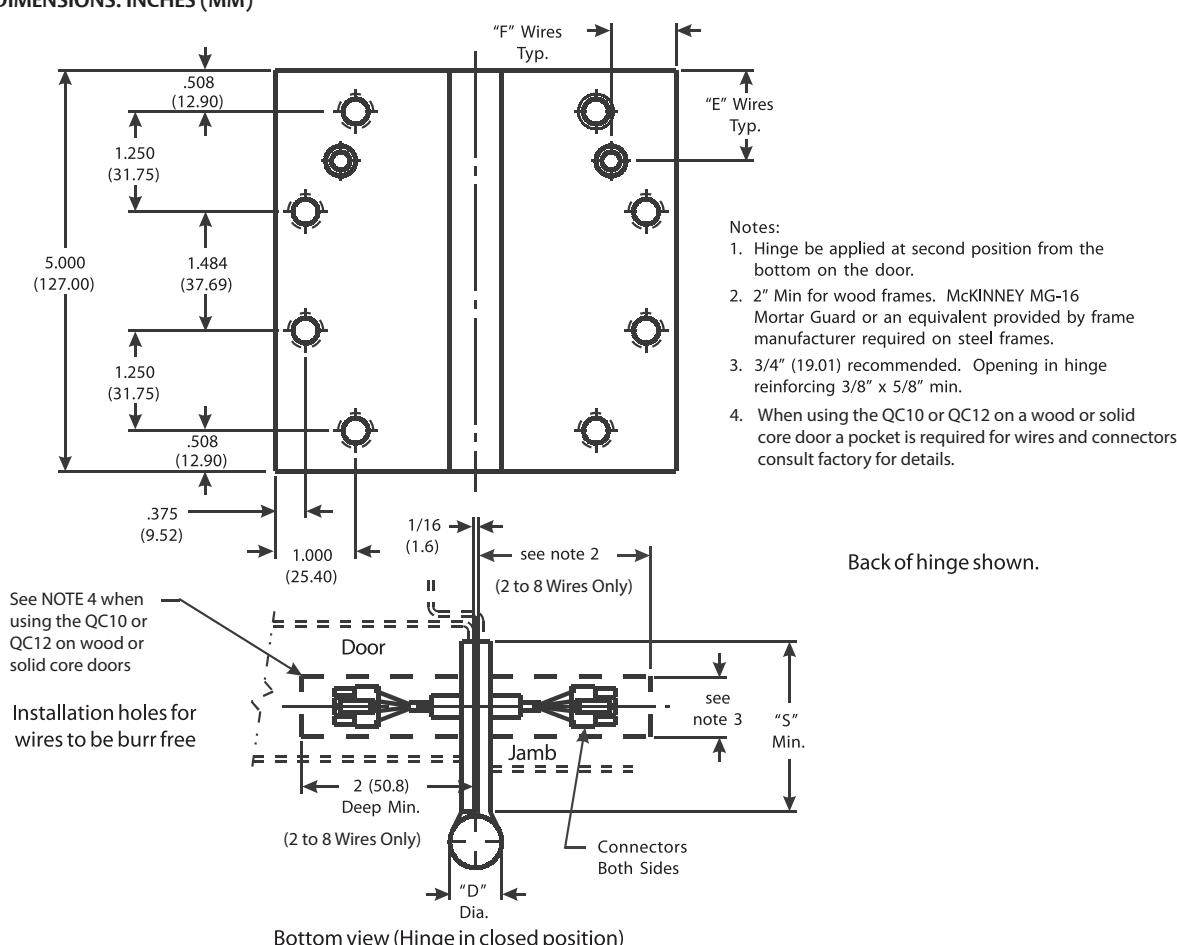

McKinney 5 x 41/2, 5 x 5 Template Full Mortise, QC* Hinge (2 to 12 Wires)
DO NOT SCALE DIMENSIONS: INCHES (MM)
| CATALOG NUMBER | CALICE | "D" | "F" | "E" | "S" DISTANCE (SWAGE LINE) | ||
|---|---|---|---|---|---|---|---|
|
STEEL
HINGES |
**NON-FERROUS
HINGES |
GAUGE
OF METAL |
OUTSIDE
DIAMETER |
WIRE
LOCATION |
WIRE
LOCATION |
HINGE WIDTH | |
|
4½
(114.3) |
5
(127.0) |
||||||
| TA 714xQC | TA 314xQC |
.146
(3.71) |
.648
(16.46) |
1.125
(28.57) |
.812
(20.62) |
1-7/8
(47.6) |
2-1/8
(53.9) |
| TA 786xQC | TA 386xQC |
.190
(4.83) |
.752
(19.10) |
1.125
(28.57) |
.812
(20.62) |
1-53/64
(46.4) |
2-5/64
(52.8) |
| TA/TB 2714xQC | TA/TB 2314xQC |
.146
(3.71) |
.648
(16.46) |
1.125
(28.57) |
.812
(20.62) |
1-7/8
(47.6) |
2-1/8
(53.9) |
| Г4А/Т4В 3786xQC | T4A/T4B 3386xQC |
.190
(4.83) |
.752
(19.10) |
1.062
(26.96) |
.750
(19.03) |
1-53/64
(46.4) |
2-5/64
(52.8) |
Template 283-15
Effective date: September 8, 2015
Supercedes: All Previous
McKINNEY Template Hinges of the Catalog Numbers are made to conform to ANSI/BHMA 156.7 for Screw Hole Location and Gauge of Metal. Wire location and hole size conforms to this drawing.
Machine Screw Size: 1/2 x 12-24 F.H.
Wood Screw Size: 11/4 x 12 F.H.
*Connector system utilizes wire colors & locations compatible with doors & hardware from other ASSA ABLOY Group Companies.
**Check Catalog for Metals.
