McKinney 5 Institutional Hinges Templates

Architectural Door Accessories

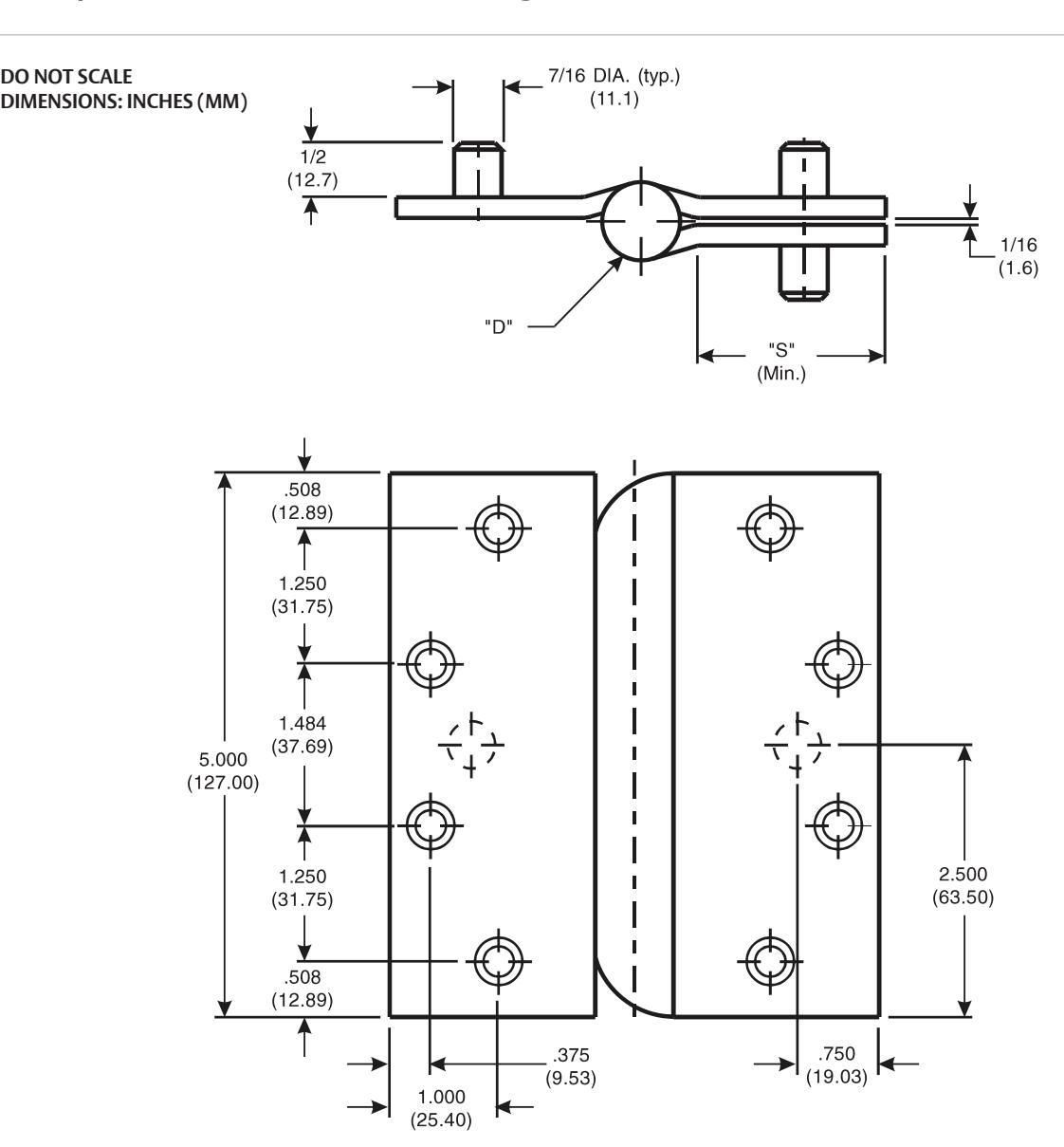

McKinney 5 x 41/2, 5 x 5 Full Mortise Template Institutional Hinge

HTA 786	HTA 386

Template 036-98

Effective date: October 16, 2019

Supercedes: All Previous

McKINNEY Template Institutional Hinges of the Catalog Numbers are made to conform to ANSI/ BHMA 156.7 for Screw Hole Location and Gauge of Metal. Prison Safety Feature (PSF) size and location conforms to this drawing.

Machine Screw Size: 1/2 x 12-24 F.H.

Wood Screw Size: 11/4 x 12 F.H.
