McKinney 5" Full Mortise "Swing Clear" Template Hinges
DO NOT SCALE DIMENSIONS: INCHES (MM)
| BEVELED EDGE | BEVELED EDGE | |||
|---|---|---|---|---|
Template 100-15
Effective date: September 1, 2015
Supercedes: All Previous

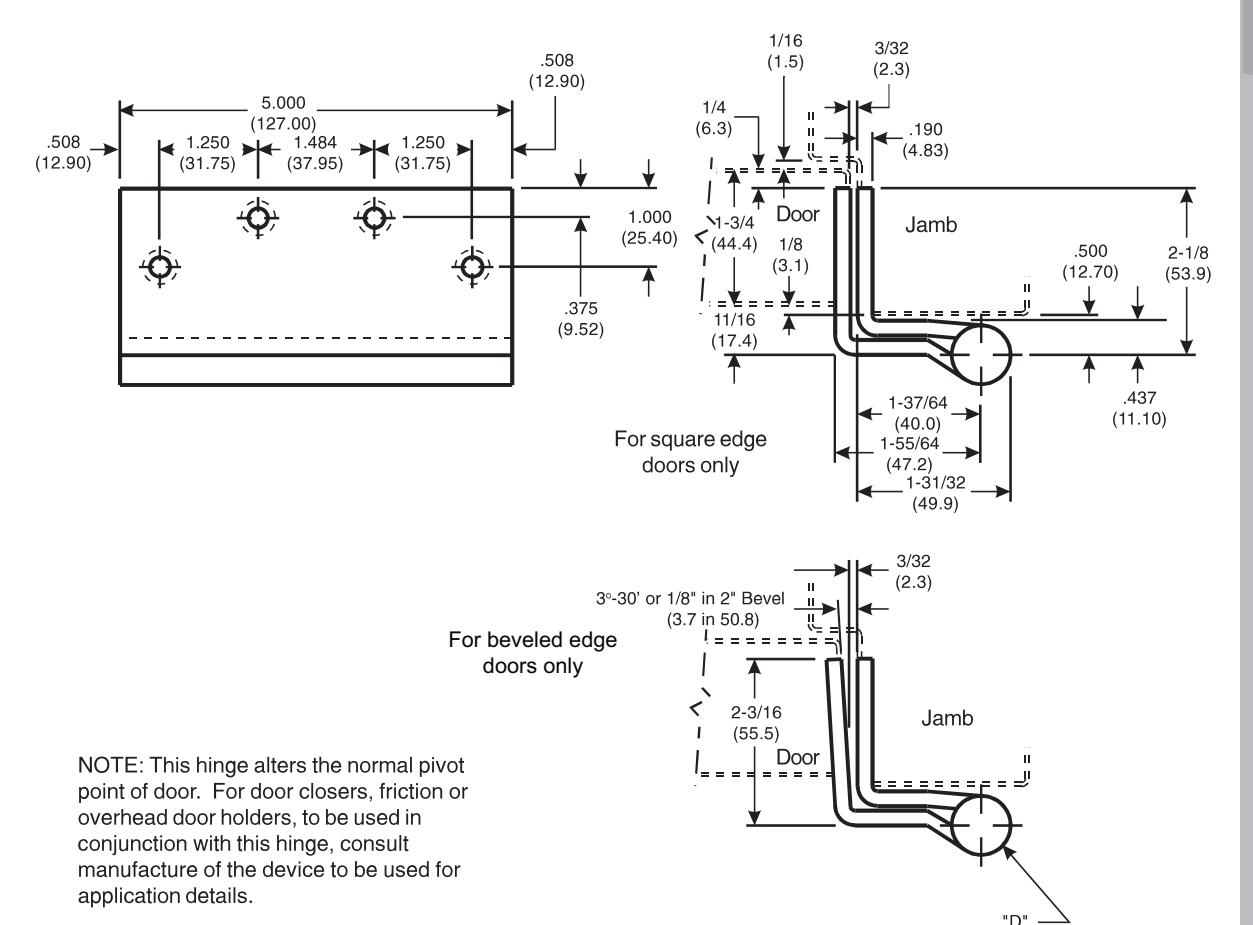

McKINNEY Template Swing Clear Hinges are made in size, gauge and with screw holes located to conform to this drawing.
Hospital Type Template Hinges conform to screw hole locations shown.
Machine Screw Size: 1/2 x 12-24 F.H.
Wood Screw Size: 11/4 x 12 F.H.
Hinges are reversable.
*Check Catalog for Metals.
