View PDFArchitectural Door Accessories

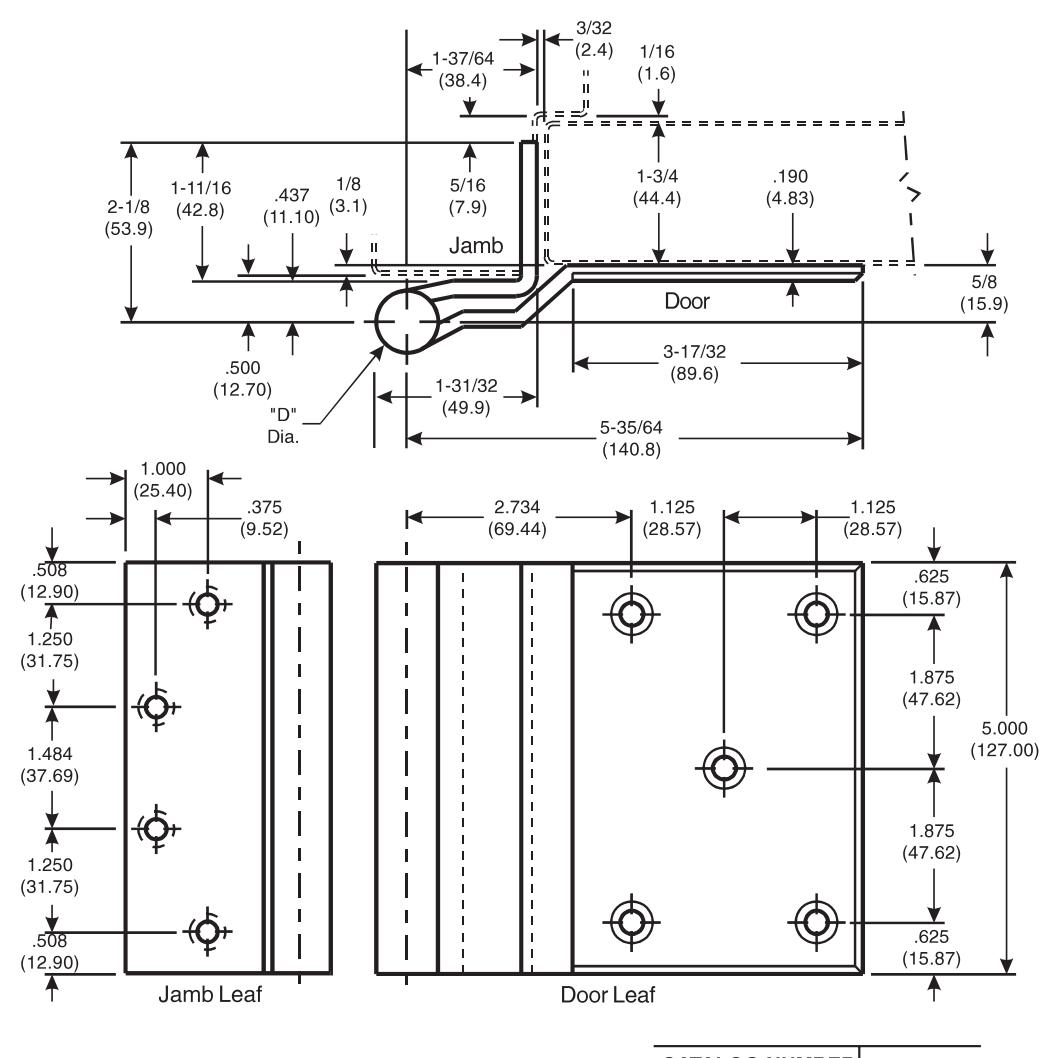

McKinney 5" Half Surface "Swing Clear" Template Hinges
DO NOT SCALE DIMENSIONS: INCHES (MM)
| CATALOG NUMBER | "D" |
|---|---|
|
STEEL
HINGES |
OUTSIDE
DIAMETER |
| TA 796 |
.752
(19.10) |
| T4A/T4B 3796 |
.752
(19.10) |
Template 190-15
Effective date: September 2, 2015
Supercedes: All Previous
McKINNEY Template Half Surface Swing Clear Hinges of the Catalog Numbers are made to conform to ANSI/ BHMA 156.7.
Hospital Type Template Hinges conform to screw hole locations shown.
Machine Screw Size: Jamb Leaf: 1/2 x 12-24 F.H. Door Leaf: 2 x 1/4-20 O.H. with Grommet Nut (Specify door thickness if greater than 13/4.)
Hinges are reversible.
